BLT094 Eye Type Rotary Ring Unc Thread With Stopscrew

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

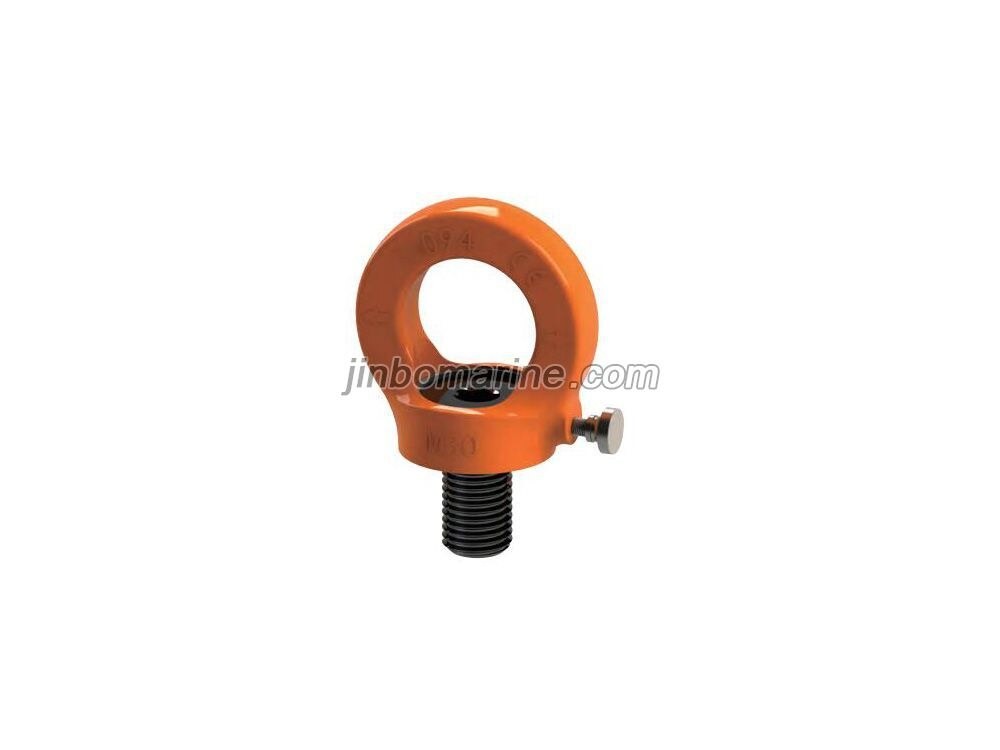

BLT094 Eye Type Rotary Ring Unc Thread With Stopscrew

1.BLT084 is equipped with a locking wrench, and BLT094 is equipped with a stop screw, which can be easily installed after being locked, and the lifting ring can be rotated after loosening.
2.4 times safety factor
Different loads can be lifted in different directions, but 4 times safety factor is guaranteed
3.Complete specifications
The thread specifications are complete, the rated load range is wide (M8-M48, 0.32T-32T), and the thread size can be customized according to customer requirements.
4.Alloy steel, electrostatic spraying
The bolts are made of alloy steel 42CrMo, the tensile strength before heat treatment is 1080Mpa, the mechanical properties are improved after the material is changed, and the surface of the ring is sprayed with electrostatic spraying after boiling to improve the surface anti-corrosion ability.

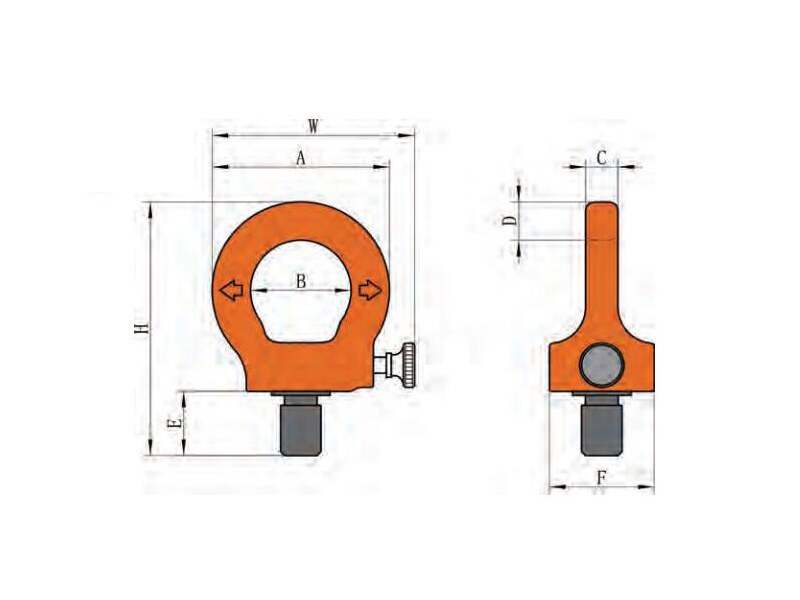

BLT094 Eye Type Rotary Ring Unc Thread With Stopscrew Drawing

BLT094 Eye Type Rotary Ring Unc Thread With Stopscrew Parameters

ITEM NO. WLL/T TPI WEIGHT/KG
X (Z)
BLT094-5/16 0.3 (1) 5/16-18UNC 0.15
BLT094-3/8 0.4 (1) 3/8-16UNC 0.15
BLT094-7/16 0.75 (2) 7/16-14UNC 0.2
BLT094-1/2 0.75 (2) 1/2-13UNC 0.2
BLT094-5/8 1.5 (4) 5/8-11UNC 0.35
BLT094-3/4 2.3 (6) 3/4-10UNC 0.6
BLT094-7/8 2.3 (6) 7/8-9UNC 0.6
BLT094-1 3.2 (8) 1-8UNC 1
BLT094-1-1/4 4.5 (12) 1 1/4-7UNC 2
BLT094-1-1/2 9 (24) 1 1/2-6UNC 5
BLT094-1-3/4 12 (32) 1 3/4-5UNC 7.5
ITEM NO. TECHNICAL PARAMETERS/MM
E A B C
BLT094-5/16 12 44 25 8
BLT094-3/8 15 44 25 8
BLT094-7/16 18 52 30 10
BLT094-1/2 18 52 30 10
BLT094-5/8 24 61 35 14
BLT094-3/4 30 70 40 16
BLT094-7/8 30 70 40 16
BLT094-1 36 84 48 19
BLT094-1-1/4 45 105 60 24
BLT094-1-1/2 63 147 82 34
BLT094-1-3/4 72 168 94 38
ITEM NO. TECHNICAL PARAMETERS/MM
D F S H
BLT094-5/16 9.5 26 6 61
BLT094-3/8 9.5 26 6 64
BLT094-7/16 11 32 8 75
BLT094-1/2 11 32 8 75
BLT094-5/8 13 39 10 90
BLT094-3/4 15 47 12 107
BLT094-7/8 15 47 12 107
BLT094-1 18 55 14 126
BLT094-1-1/4 22.5 67 17 158
BLT094-1-1/2 32.5 90 24 220
BLT094-1-3/4 37 103 27 251.5
