BLT094 Key Eye Point

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China BLT094 Key Eye Point:

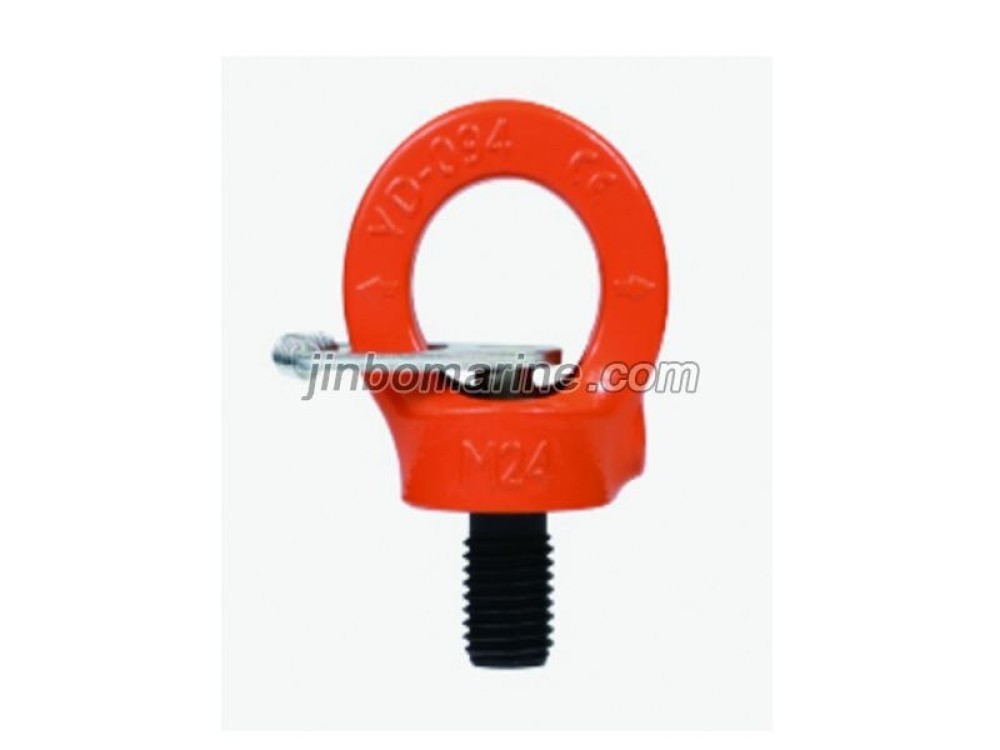

BLT094 Key Eye Point

Metric Thread:

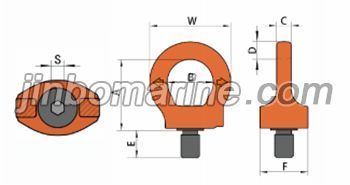

ITEM NO. WLL/T M Dimensional Parameters/mm Locking Torque/Nm Kg
E A B C D F W S
BLT094-M8 0.3 M8x1.25 12 40 25 8 9.5 26 44 6 10-40 0.12
BLT094-M10 0.4 M10x1.5 15 40 25 8 95 26 44 6 10-40 0.13
BLT094-M12 0.75 M12x1.75 18 47 30 10 11 32 52 8 15-40 0.2
BLT094-M14 0.75 M14x2.0 18 47 30 10 11 32 52 8 30-100 0.2
BLT094-M16 1.5 M16x2.0 24 54 35 14 13 39 61 10 45-130 0.4
BLTO94-M18 1.5 M18x2.5 24 54 35 14 13 39 61 10 100-170 0.4
BLT094-M20 2.3 M20x2.5 30 63 40 16 15 47 70 12 100-170 0.6
BLT094-M22 2.3 M22x2.5 40 63 40 16 15 47 70 12 100-170 0.6
BLT094-M24 3.2 M24x3.0 40 73 48 19 18 55 84 14 190-280 1
BLT094-M27 3.2 M27x3.0 47 73 48 19 18 55 84 14 250-500 1
BLT094-M30 4.5 M30x3.5 47 91.5 60 24 22.5 67 105 17 270-600 1.9
BLT094-M33 4.5 M33x3.5 54 91.5 60 24 22.5 67 105 17 270-600 1.9
BLT094-M36 7 M36X4.0 54 114 72 29 27 85 126 22 270-600 3.6
BLT094-M42 9 M42X4.5 63 130 82 34 32.5 98 147 22 350-800 5.6
BLT094-M48 12 M48x5.0 72 151 96 38 36 114 168 27 350-800 8.5
