BLT098 Ultra-High Load Flange Hoist Ring

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China BLT098 Ultra-High Load Flange Hoist Ring:

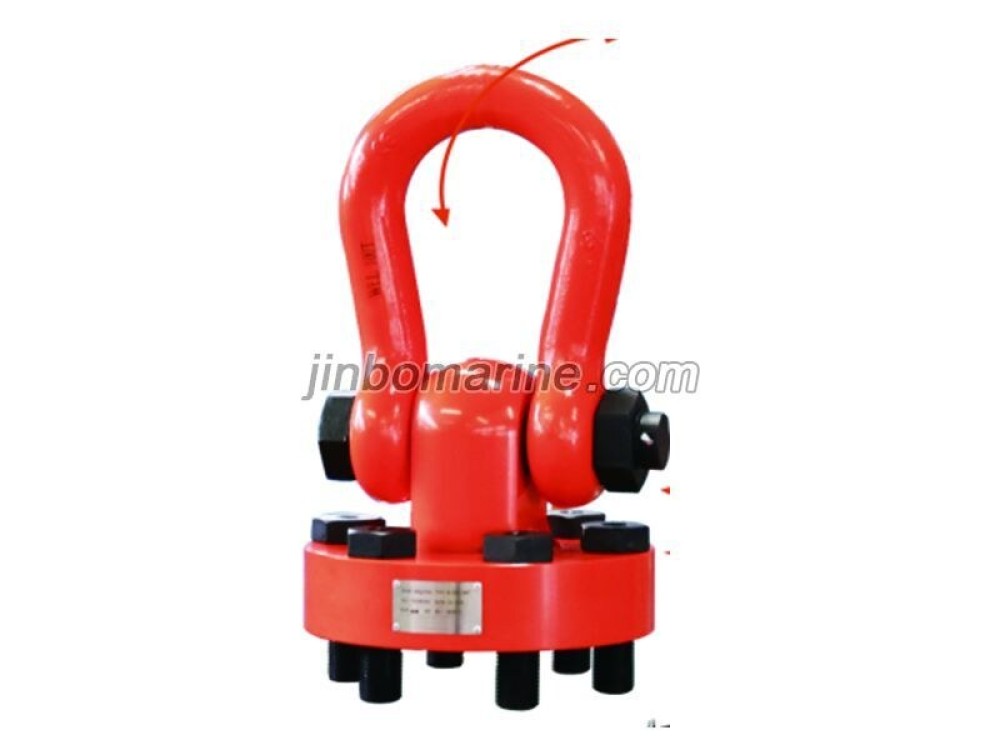

BLT098 Ultra-High Load Flange Hoist Ring

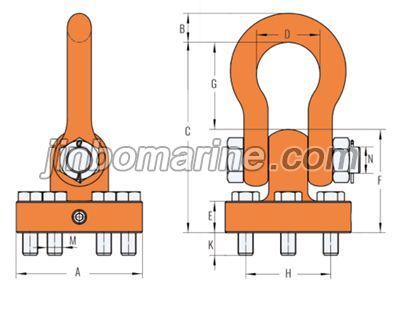

Metric Thread:

ITEM NO. WLL/T M Dimensional Parameters/mm Locking Torque/Nm Kg
A B C D E F G H K N
BLT098-85T 85 6-M48X5.0 400 75 600 190 100 326 274 310 71 82 350-800 200
BLT098-100T 100 6-M48X5.0 400 75 600 190 100 326 274 310 71 82 350-800 200
BLT098-120T 120 6-M48X5.0 570 89 688.5 238 120 391.5 297 445 75 95 350-800 414
BLT098-150T 150 10-M42X4.5 570 102 729 275 120 417 312 420 63 108 350-800 487
BLTO98-200T 200 10-M48X5.0 650 120 891 290 130 474 417 500 71 130 350-800 729
BLT098-250T 250 12-M48X5.0 730 140 1053 305 150 567.5 485.5 580 72 150 350-800 1031
