BLT118 Safe Rotating Lifting Ring

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China BLT118 Safe Rotating Lifting Ring:

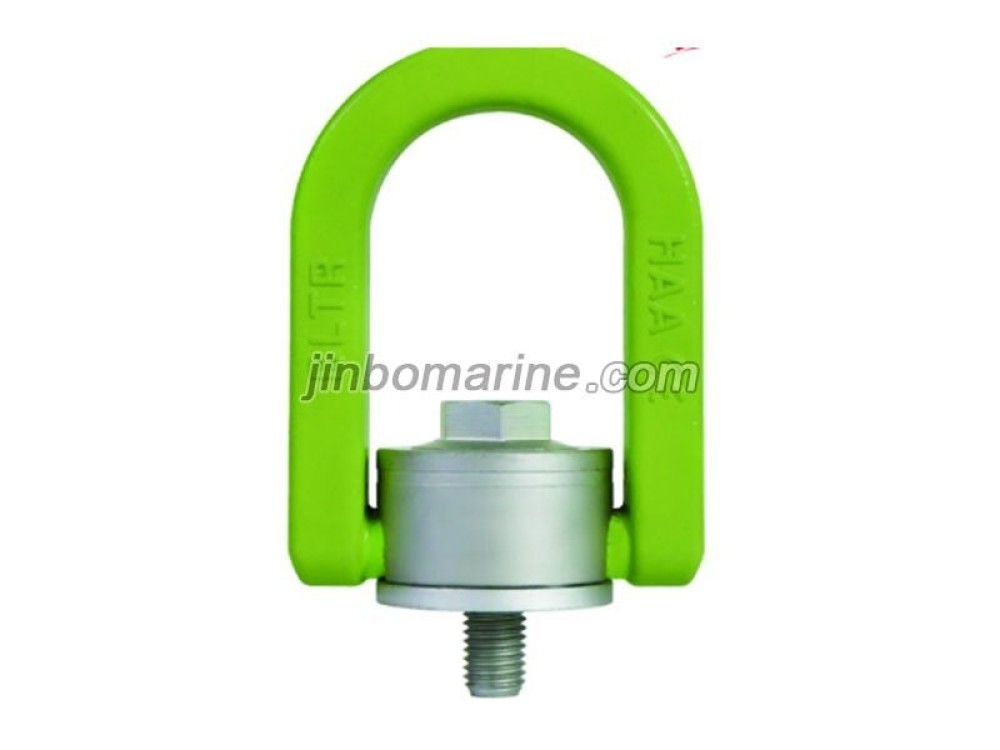

BLT118 Safe Rotating Lifting Ring

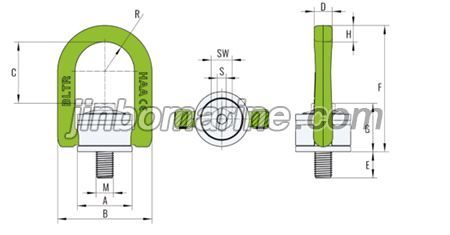

Metric Thread:

ITEM NO. WLL/T M Dimensional Parameters/mm Locking Torque/Nm Kg
E A B C D F G H R S SW
BLT118-M6 0.2 M6x1.0 12 33 55 40 11.5 80 30 9.5 17.5 6 13 10 0.3
BLT118-M8 0.5 M8x1.25 12 33 55 40 11.5 80 30 9.5 17.5 6 13 10 0.3
BLT118-M10 0.7 M10x1.5 15 33 55 40 11.5 80 30 9.5 17.5 6 13 10 0.3
BLT118-M12 1 M12x1.75 20 33 55 40 11.5 80 30 9.5 17.5 6 13 15 0.3
BLT118-M14 1.5 M14x2.0 21 50 86 56 16.5 115.5 44.5 15 27 8 19 30 0.7
BLT118-M16 2 M16x2.0 24 50 86 56 16.5 115.5 44.5 15 27 8 19 50 1
BLT118-M18 2.5 M18x2.5 26 65 113 82 25 161 58 21 34.5 10 27 70 1.8
BLT118-M20 3 M20x2.5 30 65 113 82 25 161 58 21 34.5 10 27 100 2
BLT118-M22 4 M22x2.5 33 65 113 82 25 161 58 21 34.5 10 27 100 2.3
BLT118-M24 5 M24x3.0 36 65 113 82 25 161 58 21 34.5 10 27 160 2.6
BLT118-M27 5.6 M27x3.0 38 87 145 98 30 204 76.5 29 45.5 14 34 200 4.2
BLT118-M30 7.8 M30x3.5 48 87 145 98 30 204 76.5 29 45.5 14 34 500 4.5
BLT118M33 8.3 M33x3.5 48 87 145 98 30 204 76.5 29 45.5 14 34 500 5.2
BLT118-M36S 9 M36x4.0 54 87 145 98 30 204 76.5 29 45.5 14 34 500 5.7
BLT118-M36B 12.5 M36x4.0 56 110 184 118 38 251 96.5 36 57 19 46 600 11
BLT118-M39 13.8 M39x4.0 56 110 184 118 38 251 96.5 36 57 19 46 600 10.5
BLT118-M42 15.6 M42x4.5 63 110 184 118 38 251 96.5 36 57 19 46 600 11.2
