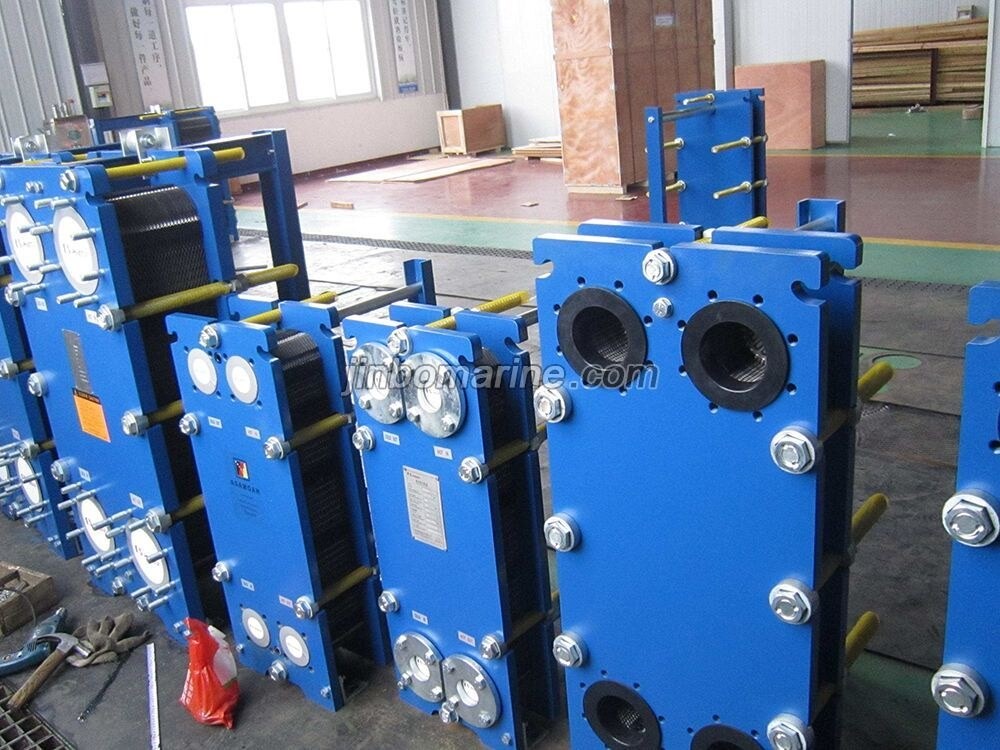

BR0.8 Plate Heat Exchanger

Request a Quote Not what you need, please send your RFQs via Email.

Details

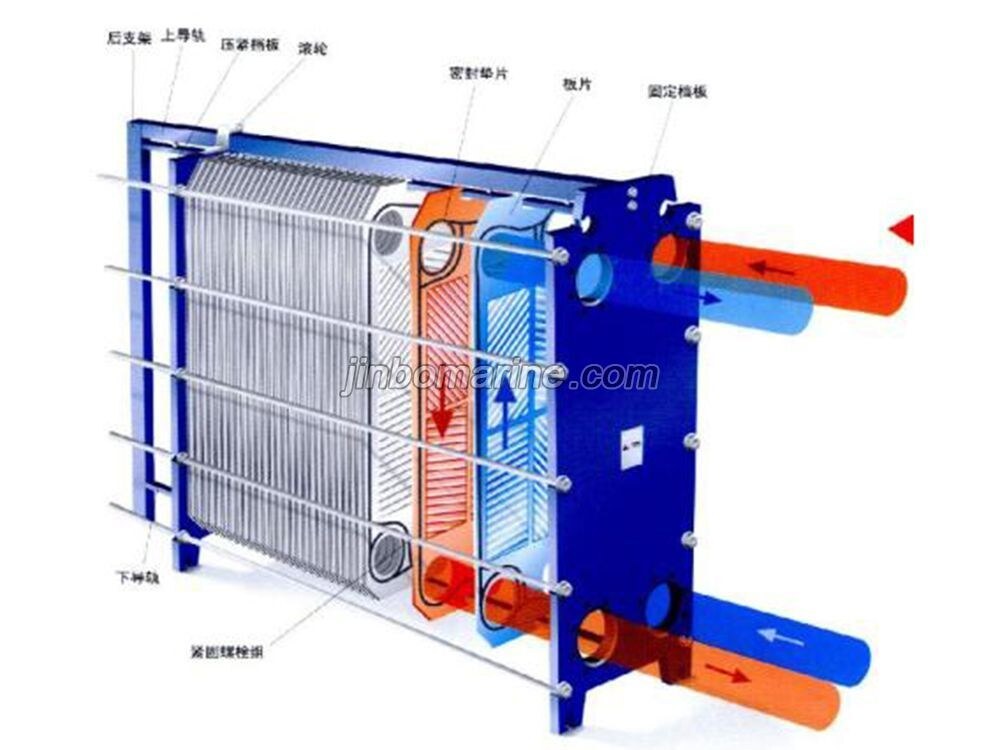

BR0.8 plate heat exchanger design concept:

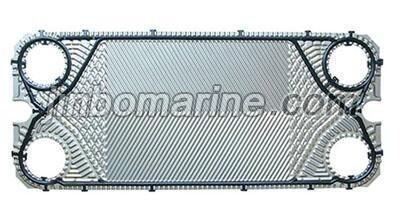

the plate with a new pressurized diversion zone design greatly improves the heat transfer efficiency of plate, reduce dead angle, improve the scale of the plate. All the sealing gaskets are made of free form, which reduces the cost of operation and maintenance and is easy to maintain.

The dimension of the plate is mm3:1716*606*0.7

The monolithic heat transfer area is M2:0.84

Plate spacing mm:4

The cross-sectional area of single channel is M2:0.00226

The maximum processing capacity was mm3/h:100-400

Flange diameter DNmm 200

The working temperature℃ ≤180

Working pressure Mpa:0.6,1.0

Angle hole diameter mm:210

Size:

B=640 C=1653 F=213 E=342 B1=760 H=1840 R=13

No: Total heat
transfer area m2
Number of plates
(sheets)
L(mm) D A A1 Weight(kg)
1 70 71 316 730 490 995 2318/2412
2 80 81 348 770 528 1055 2412/2513
3 90 91 381 802 562 1130 2505/2617
4 100 101 414 845 604 1195 2600/2778
5 110 111 447 880 638 1270 2690/2822
6 120 121 480 920 680 1330 2787/2922
7 140 141 570 995 756 1470 2974/3128
8 150 151 635 1035 794 1545 3067/3232
9 160 161 701 1070 832 1605 3160/3336
10 180 181 791 1150 908 1745 3348/3538
11 200 291 947 1225 984 1885 3535/3742
12 210 211 802 1260 1022 1955 3628/3845
13 220 221 840 1300 1060 2020 3722/3947
14 230 131 878 1340 1098 2095 3815/4050
