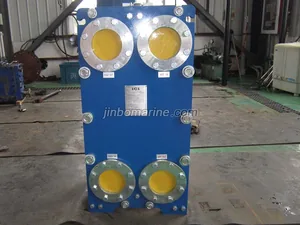

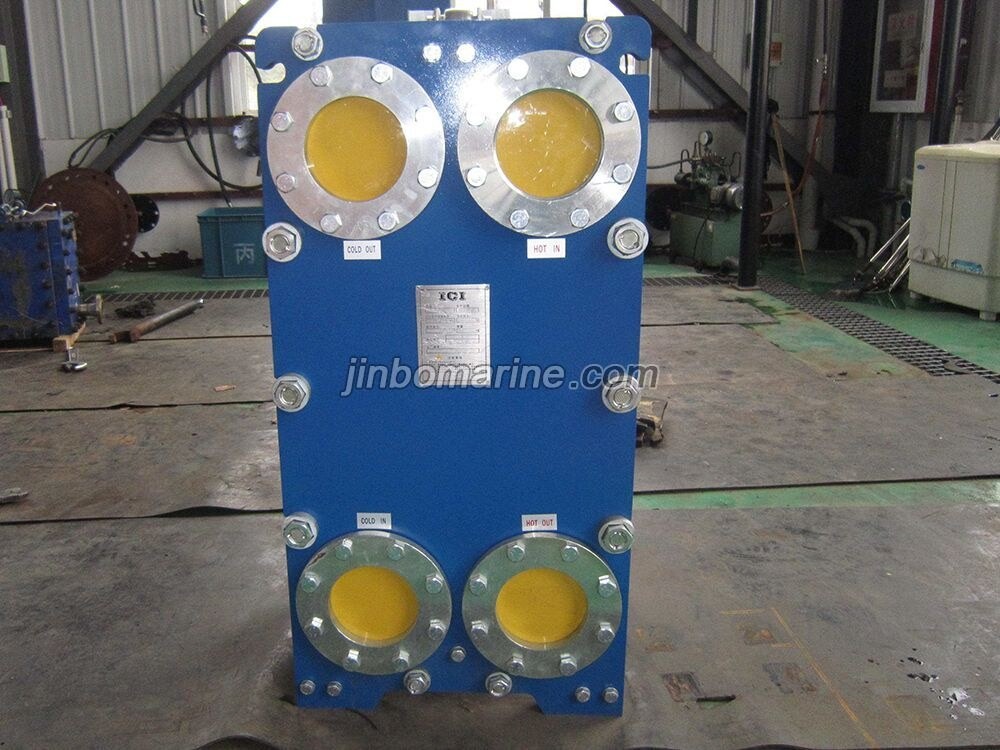

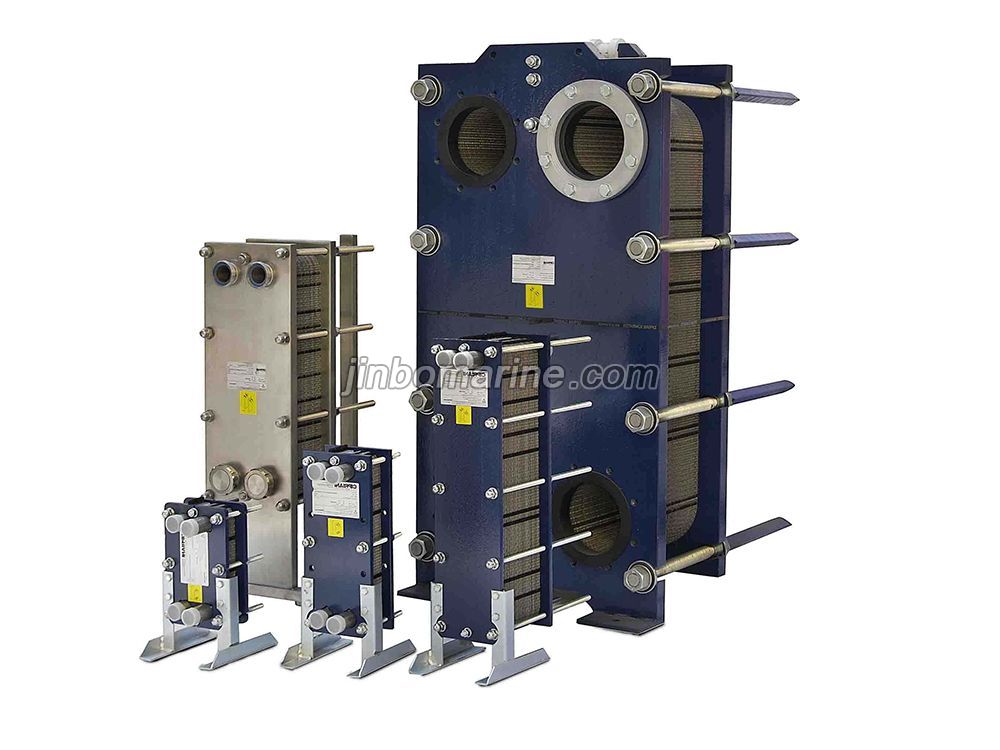

BR1.3 Plate Heat Exchanger

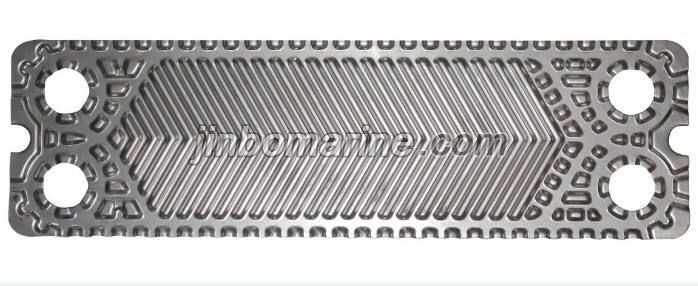

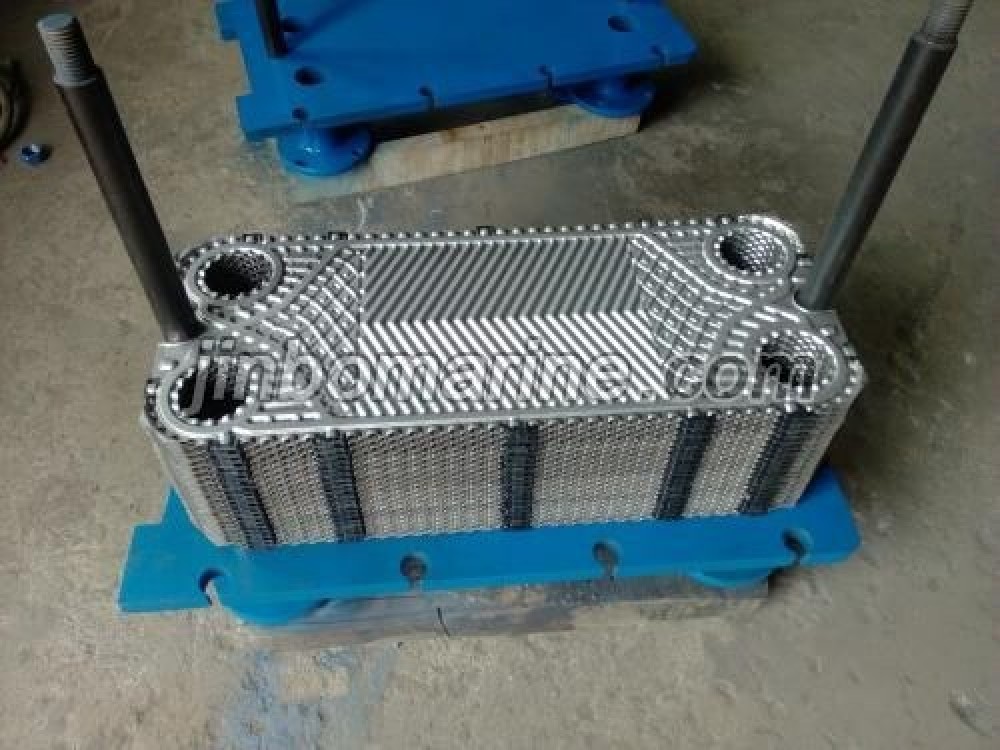

The plate with a new pressurized diversion zone design greatly improves the heat transfer efficiency of plate, reduce dead angle, improve the scale of the plate. All the sealing gaskets are made of free form, which reduces the cost of operation and maintenance and is easy to maintain.

The dimension of the plate is mm3：1770*980*0.7

The monolithic heat transfer area is M2：1.304

Plate spacing mm：3.5

The cross-sectional area of single channel is M2：0.00328

The maximum processing capacity was m3/h：760

The working temperature℃ ≤180

Working pressure Mpa：0.6,1.0

Angle hole diameter mm：300

DN≤300 B=810 C=1749 F=356 E=600 B1=1140 H=2180 R=15
