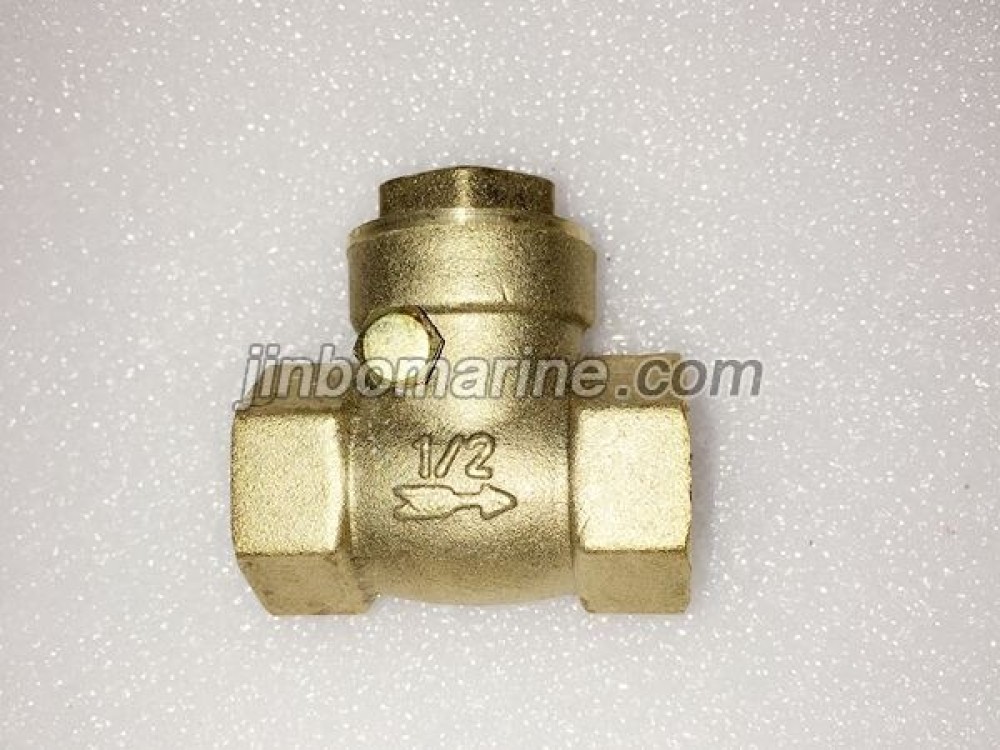

Bronze DIN Swing Check Valve with BSP Female Threaded Ends
- Category:GB Marine Check Valve
- Material:Bronze
- IMPA Code:755771~755789
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

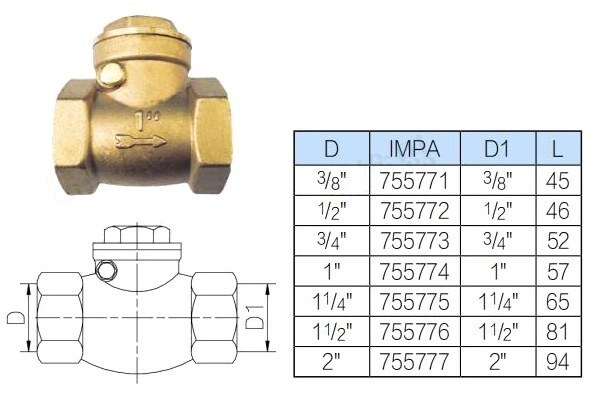

China Bronze DIN Swing Check Valve with BSP Female Threaded Ends:
Bronze DIN Swing Check Valve with BSP Female Threaded Ends can be installed horizontally & vertically.
Max Working Pressure: 16Bar
Main Parts & Material:
1. Body---Bronze
2. Disc & Bonnet---Brass
3. Gasket---Asbestos-free
Main Size:
| IMPA | D | L | H |
| Metal Seated | |||
| 755771 | 3/8" | 45 | 35 |
| 755772 | 1/2" | 46 | 38 |
| 755773 | 3/4" | 52 | 49 |
| 755774 | 1" | 57 | 54 |
| 755775 | 1-1/4" | 65 | 60 |
| 755776 | 1-1/2" | 81 | 70 |
| 755777 | 2" | 94 | 77 |
| 755778 | 2-1/2" | 105 | 94 |
| 755779 | 3" | 130 | 130 |
| PTFE Disc Seal | |||
| 755781 | 3/8" | 45 | 35 |
| 755782 | 1/2" | 46 | 38 |
| 755783 | 3/4" | 52 | 49 |
| 755784 | 1" | 57 | 54 |
| 755785 | 1-1/4" | 65 | 60 |
| 755786 | 1-1/2" | 81 | 70 |
| 755787 | 2" | 94 | 77 |
| 755788 | 2-1/2" | 105 | 94 |
| 755789 | 3" | 130 | 130 |
