CB286-84 Cast Steel Lever Chain Stopper
- Category:Chain Stopper
- Material:Cast Steel
- Standards:CB286-84
- Certificate:mill certificate
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Cb286 84 Cast Steel Lever Chain Stopper.pdf
Request a Quote
Not what you need, please send your RFQs via Email.
Details

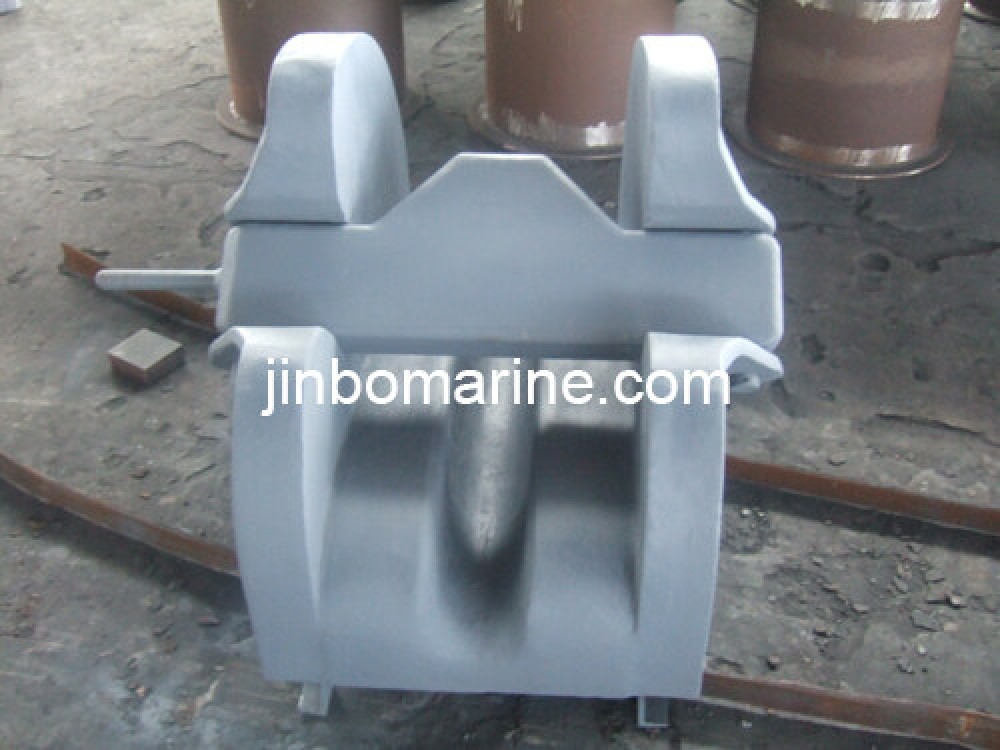

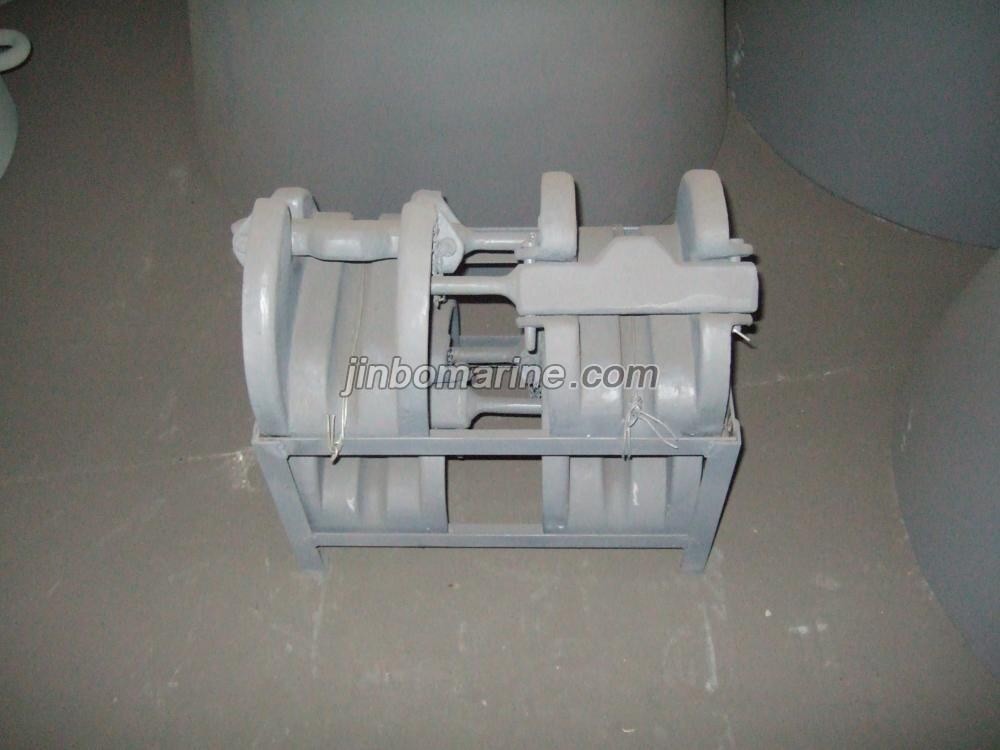

China CB286-84 Cast Steel Lever Chain Stopper:
Feature:
1.fast lead time
2.Withstand 80% of Chain Cable's breaking load
3.Customized service is available, Advanced equipment ,Strong consciousness in controlling quality.

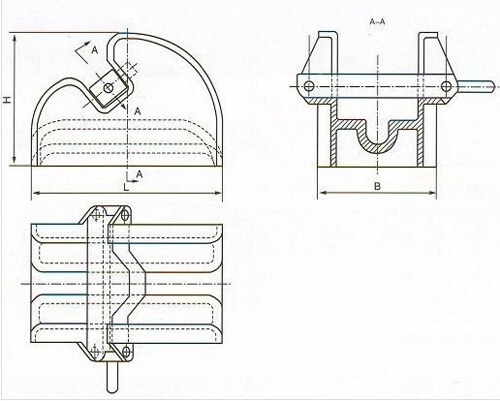

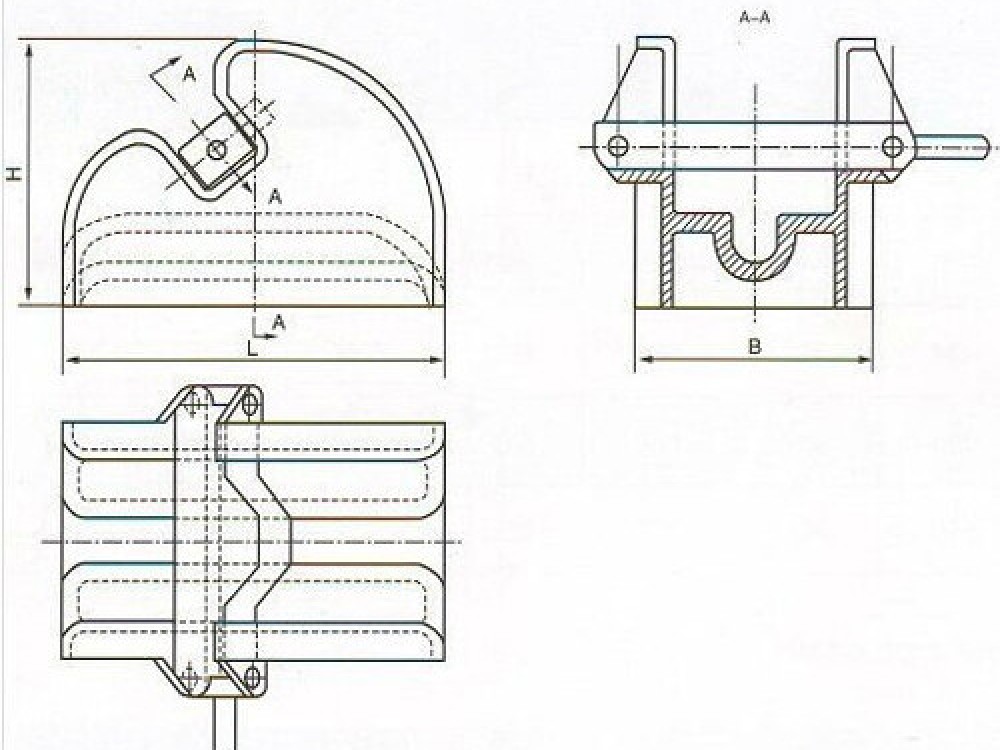

| CB286-84 cast steel lever chain stopper | |||||||||||||||
|
Chain diameter |
12.5-14 | 16-17.5 | 19-20.5 | 22-24 | 26-28 | 30-32 | 34-36 | 38-40 | 42-44 | 46-48 | 50-52 | 54-56 | 58-60 | 62-64 | 66-68 |
| B | 142 | 170 | 193 | 219 | 214 | 274 | 304 | 336 | 366 | 397 | 428 | 457 | 488 | 517 | 547 |
| H | 162 | 190 | 216 | 241 | 270 | 305 | 342 | 378 | 412 | 450 | 491 | 528 | 564 | 600 | 635 |
| L | 235 | 270 | 310 | 345 | 385 | 435 | 490 | 540 | 590 | 640 | 695 | 745 | 795 | 850 | 900 |
| Weld angle(f) | 5 | 6 | 6 | 7 | 7 | 9 | 9 | 10 | 10 | 12 | 12 | 13 | 13 | 14 | 14 |
| Weight(kg) | 20 | 25 | 30 | 37 | 46 | 56 | 69 | 85 | 108 | 139 | 173 | 210 | 210 | 305 | 363 |
