CB3062-79 BB Type Four Rollers Fairlead
- Category:Marine Fairlead
- Material:Q235 and 20# steel
- Standards:CB3062-79 BB Type
- Packing Details:Iron shelf packaging.
- Delivery Time:about 25 days.
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China CB3062-79 BB Type Four Rollers Fairlead:

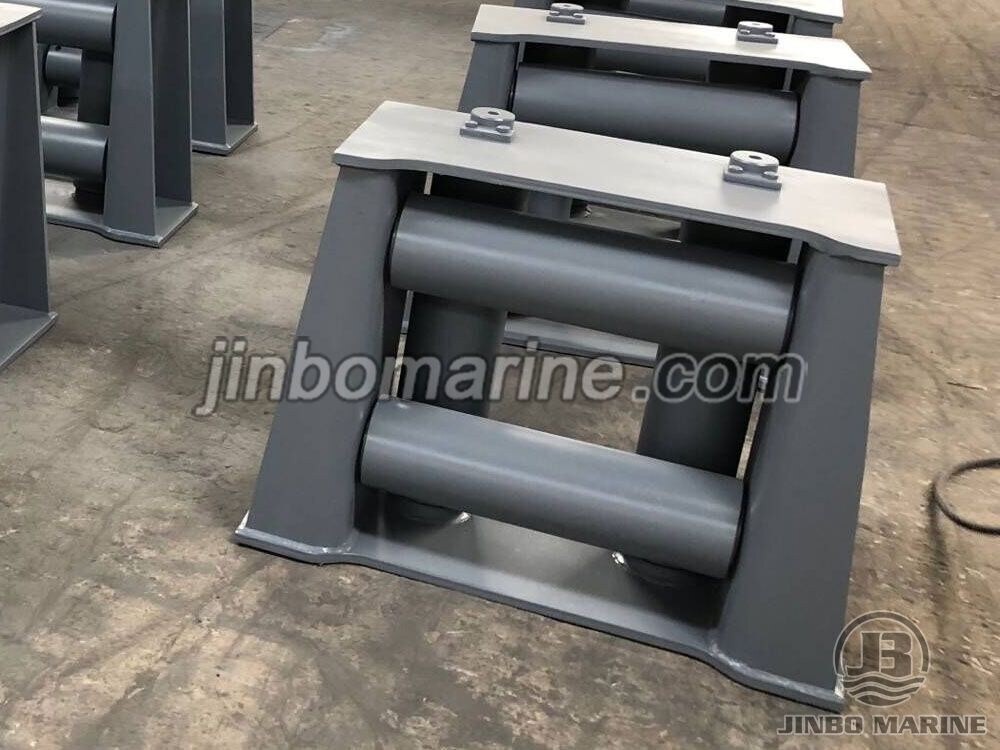

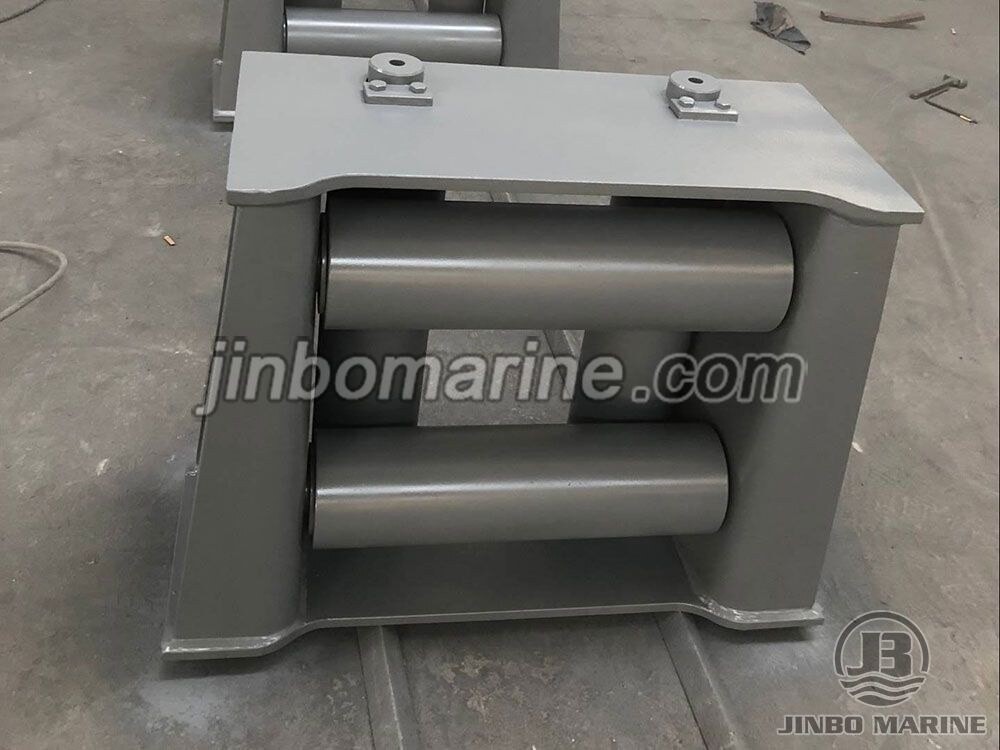

CB3062-79 BB Type Four Rollers Fairlead
Suitable for guide the rope on the vessel.
Frame Material:Q235
Axle And Roller:20# steel.
Specification:
| Steel wire dia | Nylon wire dia | E | F | D | d | L | L1 | L2 | L3 | B | B1 | B2 | H | H1 | Weight(kg) |
| 19.5 | 36 | 200 | 150 | 100 | 40 | 644 | 416 | 300 | 544 | 238 | 194 | 108 | 508 | 250 | 155 |
| 22.5 | 40 | 200 | 150 | 120 | 50 | 728 | 456 | 320 | 608 | 280 | 232 | 128 | 552 | 270 | 239 |
| 26 | 45 | 200 | 180 | 130 | 55 | 776 | 480 | 330 | 646 | 304 | 250 | 138 | 606 | 310 | 306 |
| 32 | 70 | 220 | 180 | 150 | 65 | 880 | 540 | 370 | 730 | 346 | 288 | 158 | 670 | 330 | 450 |
| 34.5 | 80 | 240 | 200 | 160 | 70 | 940 | 580 | 400 | 780 | 370 | 308 | 168 | 710 | 360 | 576 |
| 37.5 | 85 | 240 | 200 | 180 | 80 | 1030 | 620 | 420 | 850 | 417 | 345 | 190 | 770 | 380 | 756 |
| 43 | 95 | 260 | 210 | 200 | 90 | 1136 | 686 | 460 | 936 | 459 | 385 | 210 | 820 | 410 | 987 |
| 52 | 100 | 260 | 220 | 230 | 100 | 1256 | 746 | 490 | 1026 | 521 | 445 | 240 | 910 | 450 | 1370 |
| 60.5 | - | 300 | 240 | 260 | 120 | 1430 | 850 | 560 | 1170 | 590 | 500 | 270 | 1000 | 500 | 2008 |
| 68 | - | 320 | 250 | 320 | 150 | 1690 | 990 | 640 | 1370 | 714 | 620 | 330 | 1130 | 570 | 3352 |
