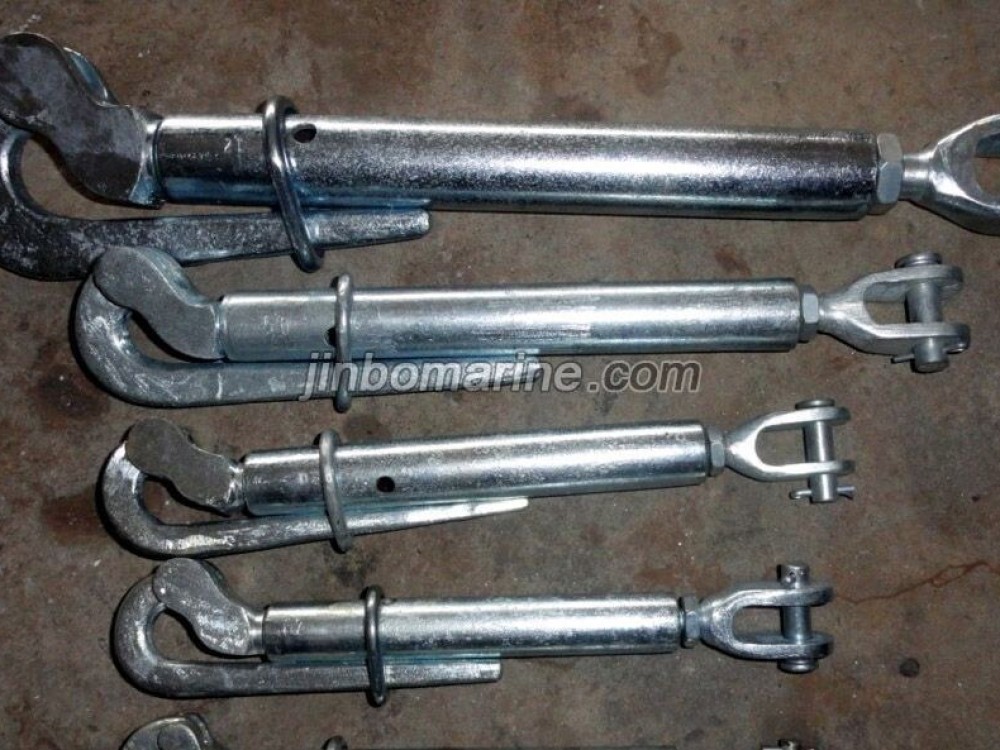

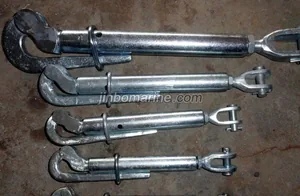

CB3474 Slip-hook turnbuckle for ship's rigging

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China CB3474 Slip-hook turnbuckle for ship's rigging:

CB3474 Slip-hook turnbuckle for ship's rigging, when ordering, please specify size and galvanized or ungalvanised.

Slip-hook turnbuckle Specification,

Type SWL(kgf) d Rope Dia B L l Weight
0.1 125 M6 2.7 40 300 210 0.38
0.2 200 M8 3.5 46 325 225 0.52
0.3 20 M10 4.9 52 355 245 0.66
0.5 500 M12 6.5 62 420 300 1.35
0.8 800 M14 8.4 70 465 335 1.85
1 1000 M16 9.4 80 495 355 2.36
1.2 1250 M18 10.5 100 540 390 2.61
1.6 1600 M20 12 100 580 420 2.88
2 2000 M22 14 110 600 430 3.14
2.5 2500 M24 15.5 110 650 470 3.65
3.2 3200 M27 17.5 120 700 510 4.16
4 4000 M30 19.5 130 740 540 4.9
5 5000 M36 21.5 142 780 570 5.63
