CDHD-40/24Ⅲ Marine Charging Power Core

Request a Quote Not what you need, please send your RFQs via Email.

Details

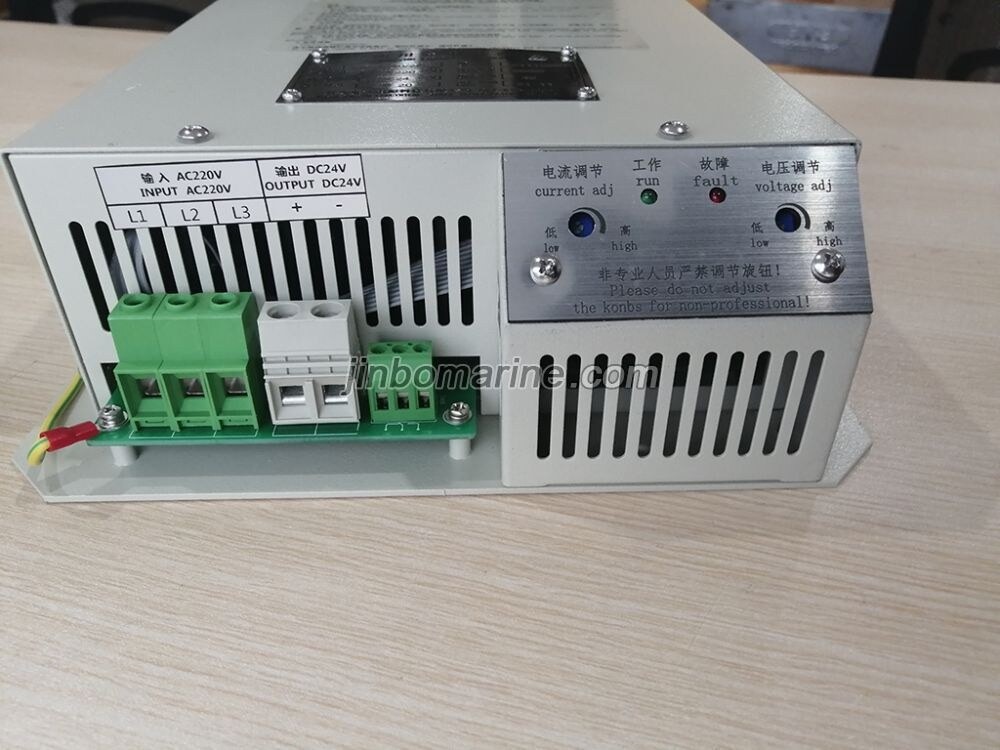

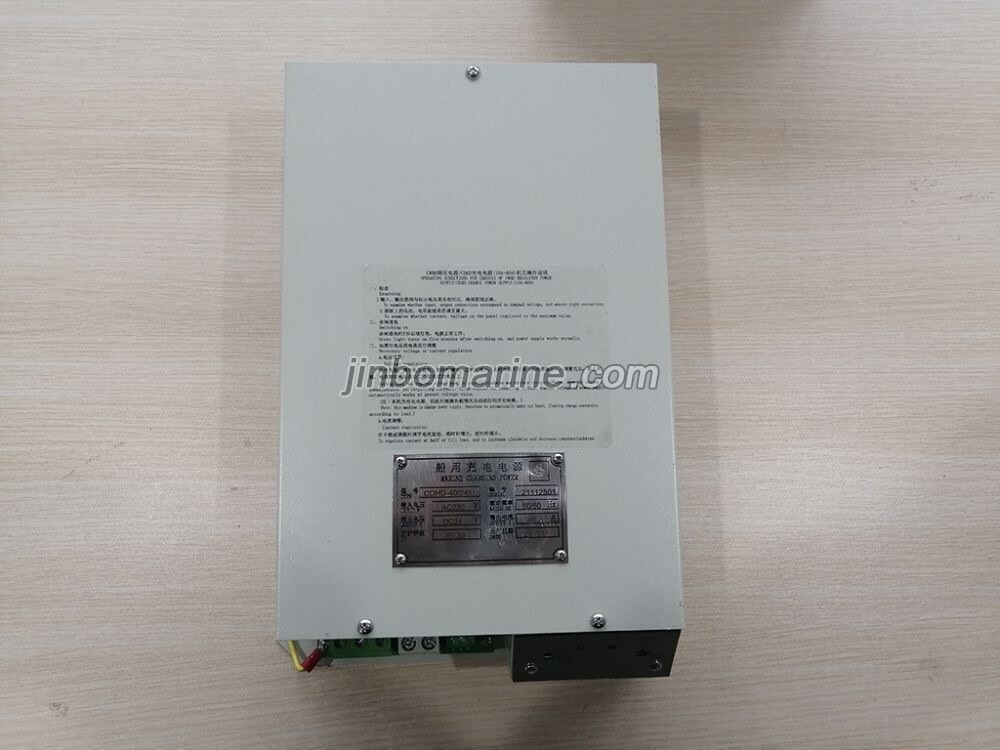

CDHD-40/24Ⅲ Marine Charging Power:

Marine charging power supply is a switching power supply multifunctional charging power supply using high frequency PWM or PFM modulation technology, with IGBT, field effect power tube and pulse width or frequency modulation integrated controller as the main components.

1. Eliminating the bulky and noisy power frequency transformer, the weight of the whole machine is only a quarter of the thyristor charging power supply.

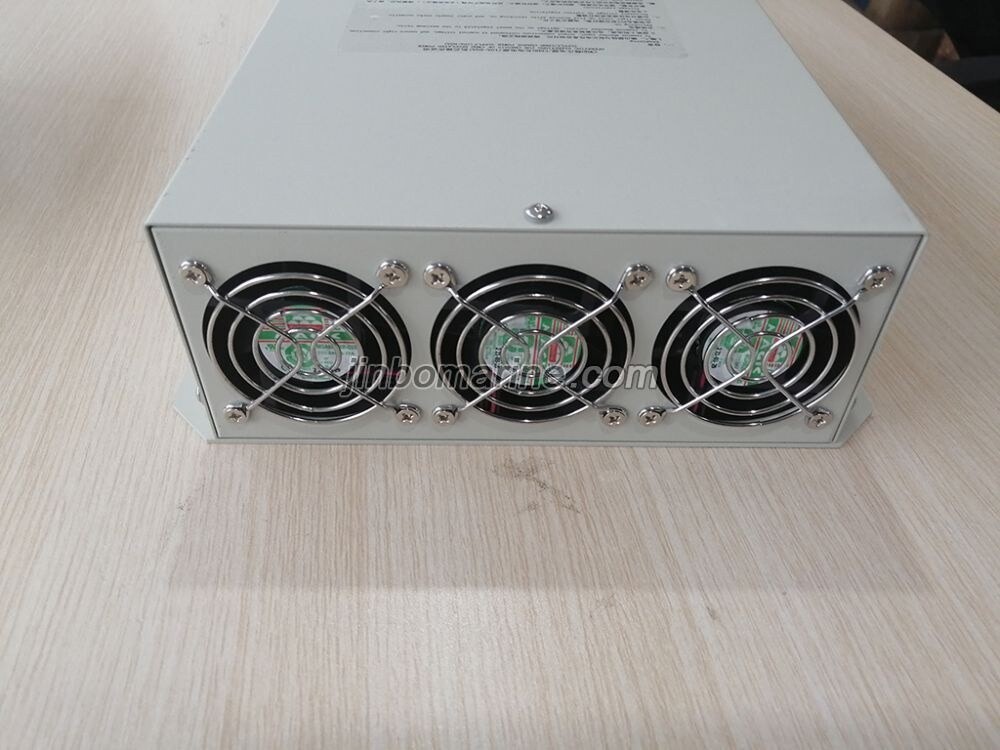

2. The power supply is provided with multiple functional module options. The whole machine adopts intelligent cooling, which can ensure the reliable operation of the power supply even in the high temperature cabin.

3. This charging power supply is a three-stage automatic charging power supply (constant current equalization charging --- constant voltage equalization charging --- floating charging). The entire process of charging the battery is first entered into equalization charging, and the constant current is automatically completed first, and then constant voltage , When the current drops to near zero, the balanced charging is completed, so that it (manual or automatic) will be transferred to "floating charging" to trickle to maintain the battery in a fully charged state.

4. CDHD series marine charging power supply has type approval certificate issued by China Classification Society.

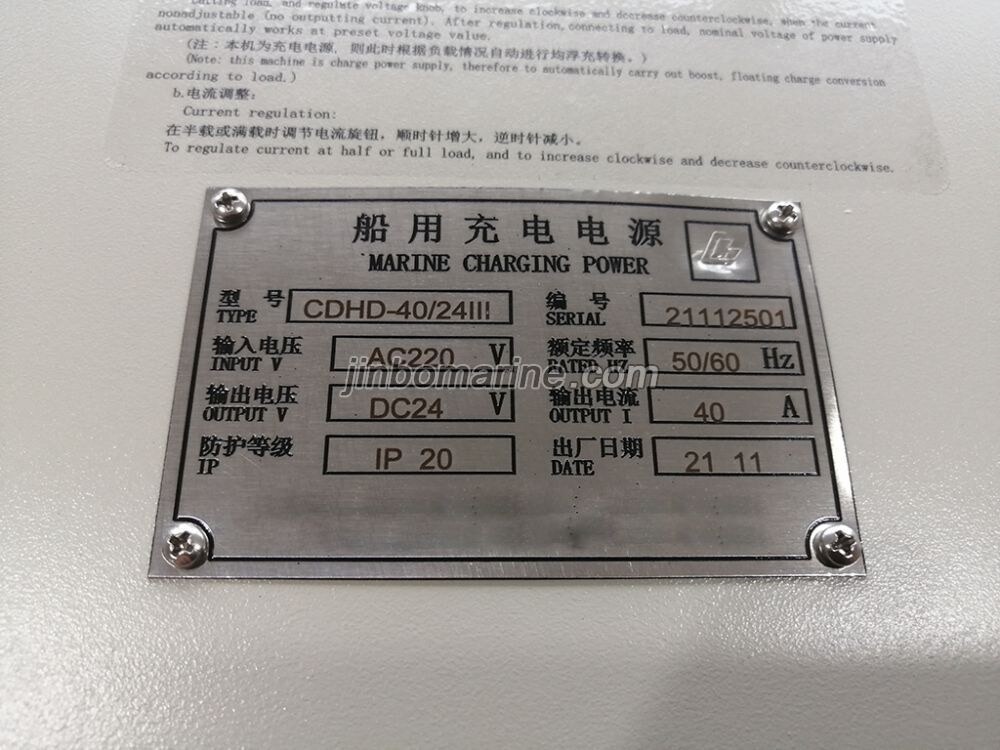

Data sheet:

Specifications(Output current) 20~40A
Input Rated voltage Single-phase 220VAC、Three-phase 380VAC、Three-phase 440VAC
Input range Rated voltage ±15%
Input frequency 45~65HZ
Efficiency ≥87%
Maximum current Single-phase 220 <50A
Three-phase 380 <30A
Three-phase 440 <27A
Output Floating voltage 251VDC±2V(Can be adjusted according to customer requirements and battery specifications)
Average voltage 268VDC±2V(Can be adjusted according to customer requirements and battery specifications)
Average floating charge
conversion current
Rated output current 10%±1A
Regulation accuracy ±1%
Output ripple and noise VPP≦300mV
Function Alarm and protection functions Input under voltage protection, input over voltage protection, output under voltage warning,
output over voltage protection, output short circuit protection, output over current protection
Standard functions Public warning, fault passive dry contact port (contact limit specification: 32V / 1A)
Optional functions Input instructions, work instructions, fault instructions, current regulation
Working environment Operating temperature ‐15℃~+55℃
Storage temperature ‐25℃~+85℃
Relative humidity 0~95%(Non-condensing)
Atmospheric pressure 70kPa~106kPa
Cooling method Air-cooled
Standard range Safety IEC61000-4-2、IEC61000-4-3、IEC61000-4-4、IEC61000-4-5、IEC61000-4-6、IEC60092-101、IEC60068-2-11
Conduction, radiation CISPR16、EN55022
Certification CCS Type approval
Others Size (WxDxH) mm 360x520x190
Weight 25kg
Installation method Wall mounted installation
