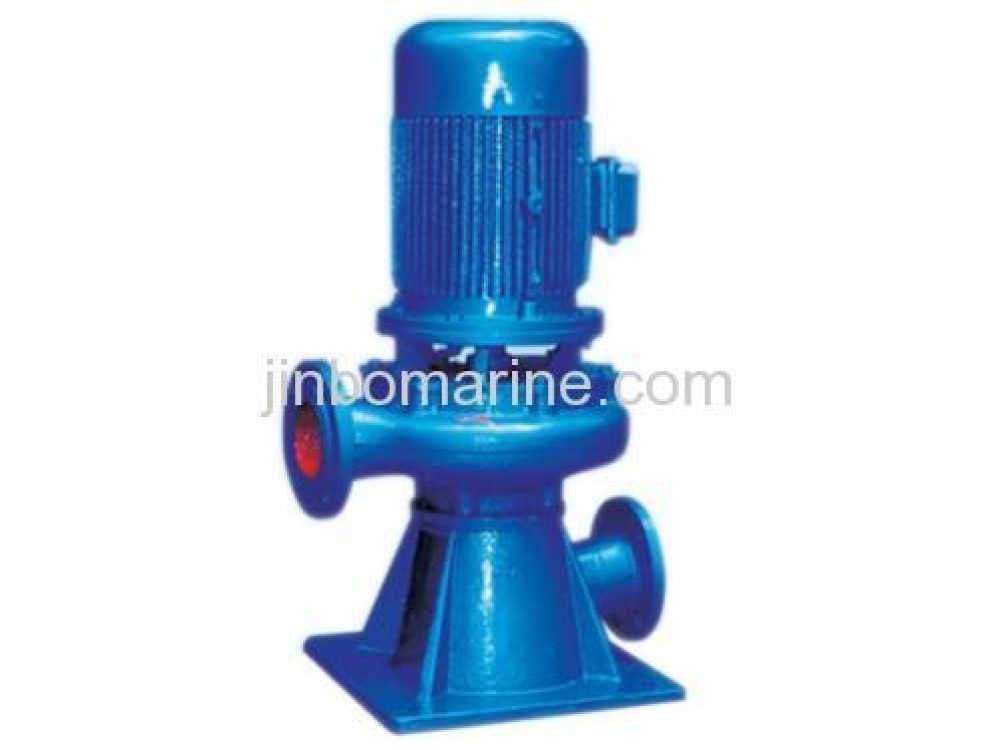

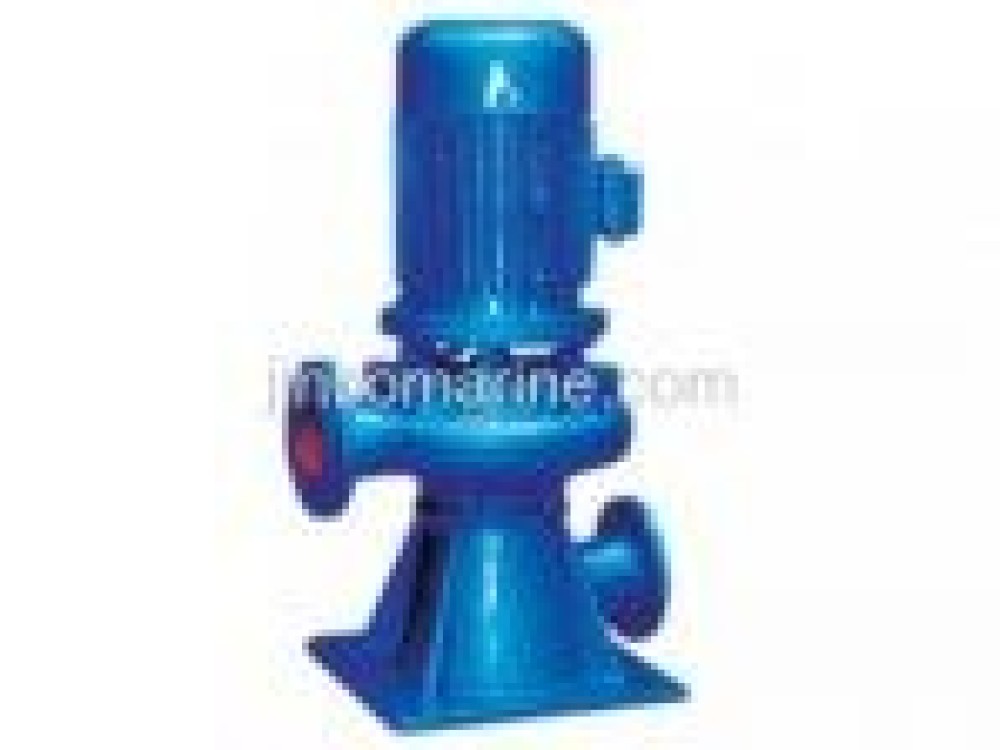

CLW Series Vertical Marine Sewage Pump

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Main Specification

Type Capacity Head Efficiency Power Speed Voltage Current Port Weight
(m3/h) (l/s) (m) (%) (kw) (r/min) (V) (A) (mm) (kg)
10-10-1 10 2.8 10 44 1 2900 380 3.2 50 29
15-7-1 15 4.2 7 47 1 2900 380 3.2 50 29
10-15-1.5 10 2.8 15 44 1.5 2900 380 4.3 50 32
15-10-1.5 15 4.2 10 47 1.5 2900 380 4.3 50 32
25-8-1.5 25 6.9 8 51 1.5 2900 380 4.3 50 32
15-20-2.2 15 4.2 20 47 2.2 2900 380 4.9 65 45
25-14-2.2 25 6.9 14 50 2.2 2900 380 4.9 65 45
40-10-2.2 40 11.1 10 54 2.2 2900 380 4.9 65 45
20-22-3 20 5.6 22 49 3 2900 380 6.4 65 45
30-16-3 16 4.4 16 52 3 2900 380 6.4 65 45
40-12-3 40 11.1 12 54 3 2900 380 6.4 65 45
20-25-4 20 5.6 25 49 4 2900 380 8.2 65 75
30-18-4 30 8.3 18 52 4 2900 380 8.2 65 75
40-15-4 40 11.1 15 54 4 2900 380 8.2 65 75
60-13-4 60 16.7 13 57 4 2900 380 8.2 65 75
25-30-5.5 25 6.9 30 52 5.5 1470 380 12 50 75
30-21-5.5 30 8.3 21 52 5.5 1470 380 12 100 175
45-18-5.5 45 12.5 18 55 5.5 1470 380 12 100 175
65-15-5.5 65 18.1 15 45 5.5 1470 380 12 100 175
70-14-5.5 70 19.4 14 58 5.5 1470 380 12 100 175
100-8-5.5 100 27.8 8 60 5.5 1470 380 12 100 175
20-40-7.5 20 5.6 40 51 7.5 2900 380 16 80 200
45-30-7.5 45 12.5 30 52 7.5 1470 380 16 100 200
50-27-7.5 50 13.9 27 55 7.5 1470 380 16 100 200
70-20-7.5 70 19.4 20 58 7.5 1470 380 16 100 200
100-13-7.5 100 27.8 13 60 7.5 1470 380 16 100 200
150-8-7.5 150 41.7 8 62 7.5 1470 380 16 150 200
45-32-11 45 12.5 32 55 11 1470 380 24.1 100 280
70-22-11 70 19.4 22 58 11 1470 380 24.1 100 280
100-16-11 100 27.8 16 59 11 1470 380 24.1 150 280
150-10-11 150 41.7 10 61 11 1470 380 24.1 150 280
