Commercial Type Turnbuckle
Main Specification Turnbuckle usually Forged, Free forged and Casting. The surface of turnbuckle original color, galvanised,hot galvanized Material is 45# Steel, Q235 ...
Loading product images...

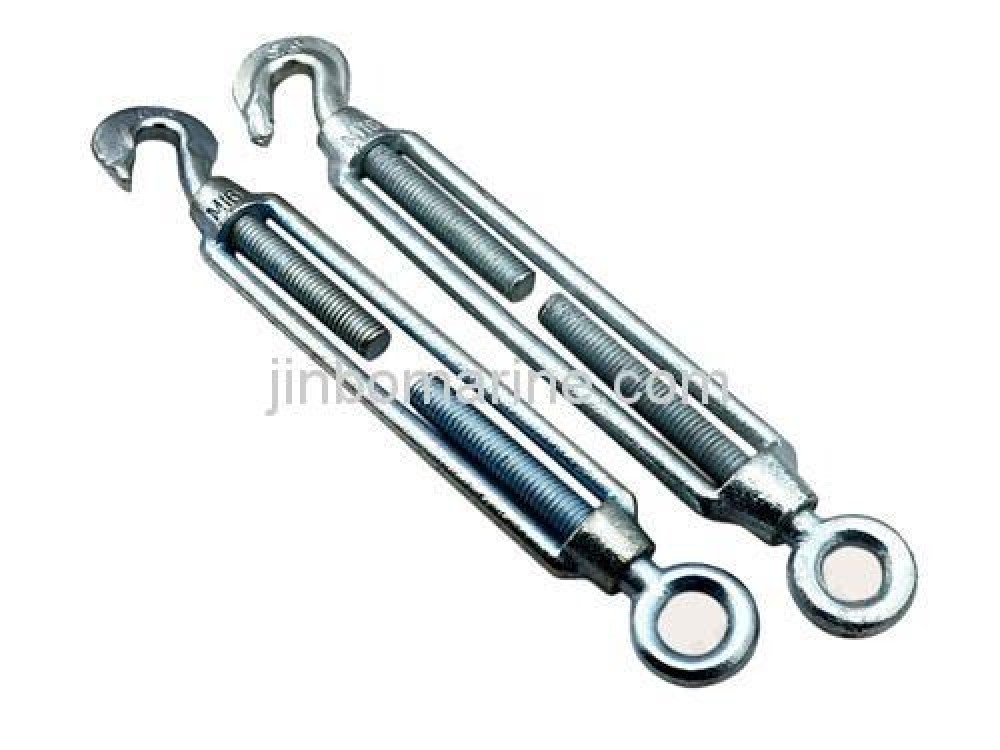

Commercial Type Turnbuckle
PDF Datasheet
We can supply according to your requirement.
Main Specification
Turnbuckle usually Forged, Free forged and Casting.
The surface of turnbuckle original color, galvanised,hot galvanized
Material is 45# Steel, Q235

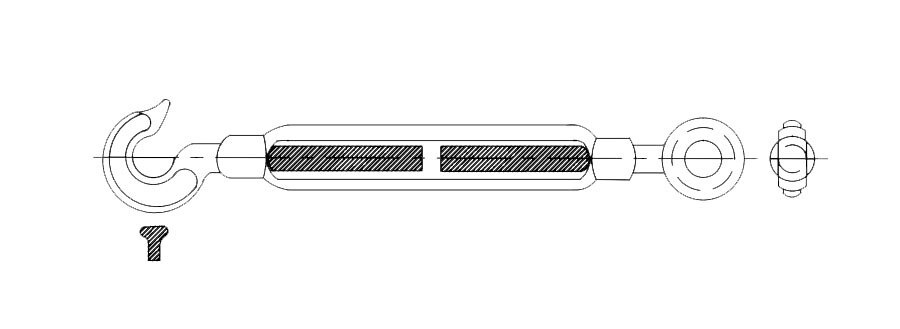

Size Table
| SWL kg | Specification | B | V | D | E | L | Weight kg |
|---|---|---|---|---|---|---|---|
| 100 | 6*100mm | 145 | 215 | 12 | 10 | 100 | 0.16 |
| 200 | 8*125mm | 185 | 280 | 14 | 12 | 125 | 0.24 |
| 300 | 10*150mm | 210 | 325 | 16 | 14 | 150 | 0.39 |
| 500 | 12*200mm | 275 | 430 | 19 | 18 | 200 | 0.64 |
| 1000 | 16*250mm | 345 | 540 | 23 | 24 | 250 | 1.44 |
| 1500 | 20*300mm | 435 | 670 | 28 | 26 | 300 | 2.45 |
| 2200 | 22*320mm | 480 | 740 | 34 | 32 | 325 | 3.6 |
| 3000 | 24*350mm | 555 | 830 | 36 | 36 | 350 | 5 |
