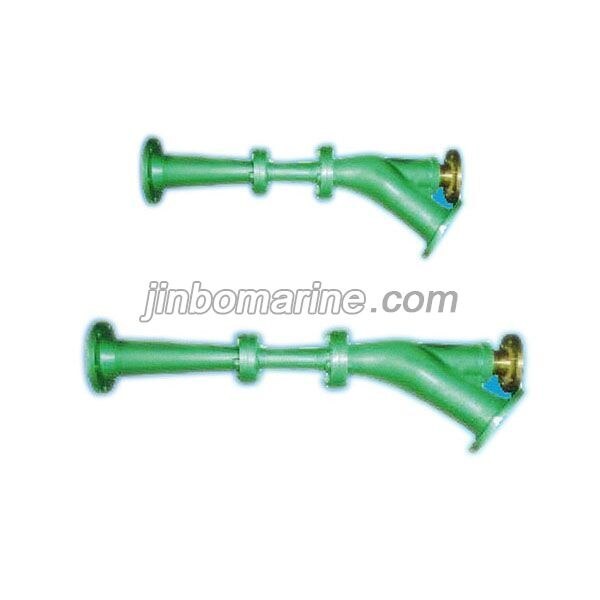

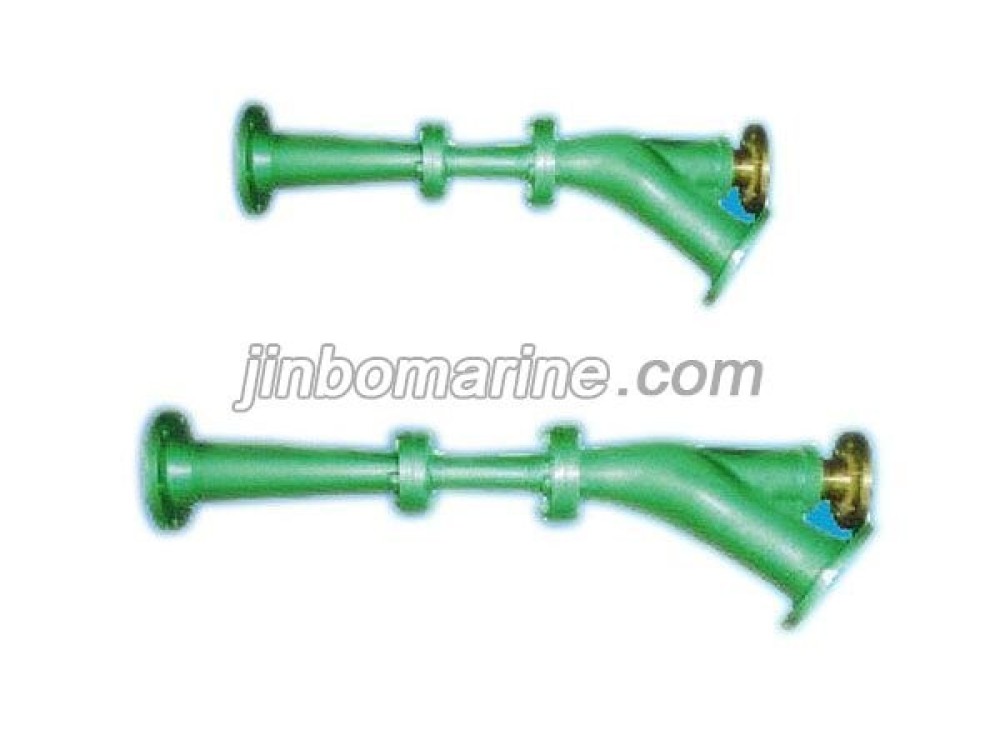

CP Series Marine Water Jet Pump CP Ejector Pump
- Category:Jet pump
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China CP Series Marine Water Jet Pump CP Ejector Pump:
CP series jet pump is used for drainage of boats and ship.
| Main Technical Data | ||||
| Model |
Flow rate Q （m³/h） |
Net srction hight (m) |
Discharge pressure (Mpa) |
Weight (Kg) |
| CP5-0.7 | 5 | 4 | 0.08 | 5.8 |
| CP10-0.7 | 10 | 4 | 0.08 | 7.5 |
| CP10-0.7K | 10 | 4 | 0.08 | 6.9 |
| CP20-0.7 | 20 | 4 | 0.08 | 11.5 |
| CP20-0.7K | 20 | 4 | 0.08 | 10.8 |
| CP30-0.7 | 30 | 4 | 0.08 | 13 |
| CP50-0.7 | 50 | 4 | 0.08 | 19 |
| CP100-0.7 | 100 | 2 | 0.08 | 21.5 |
| CP200-0.7 | 200 | 2 | 0.09 | 106 |
| CP5-0.3 | 5 | 4 | 0.09 | 17 |
| CP10-0.3 | 10 | 4 | 0.05 | 23.5 |
| CP15-0.3 | 15 | 4 | 0.05 | 25.5 |
| CP20-0.3 | 20 | 4 | 0.05 | 29.5 |
| CP30-0.3 | 30 | 4 | 0.05 | 50 |
| CP50-0.3 | 50 | 3 | 0.06 | 54.5 |
| CP100-0.3 | 100 | 3 | 0.06 | 72.5 |
| Alao have bigger pumps, pls contact us for more information. | ||||
