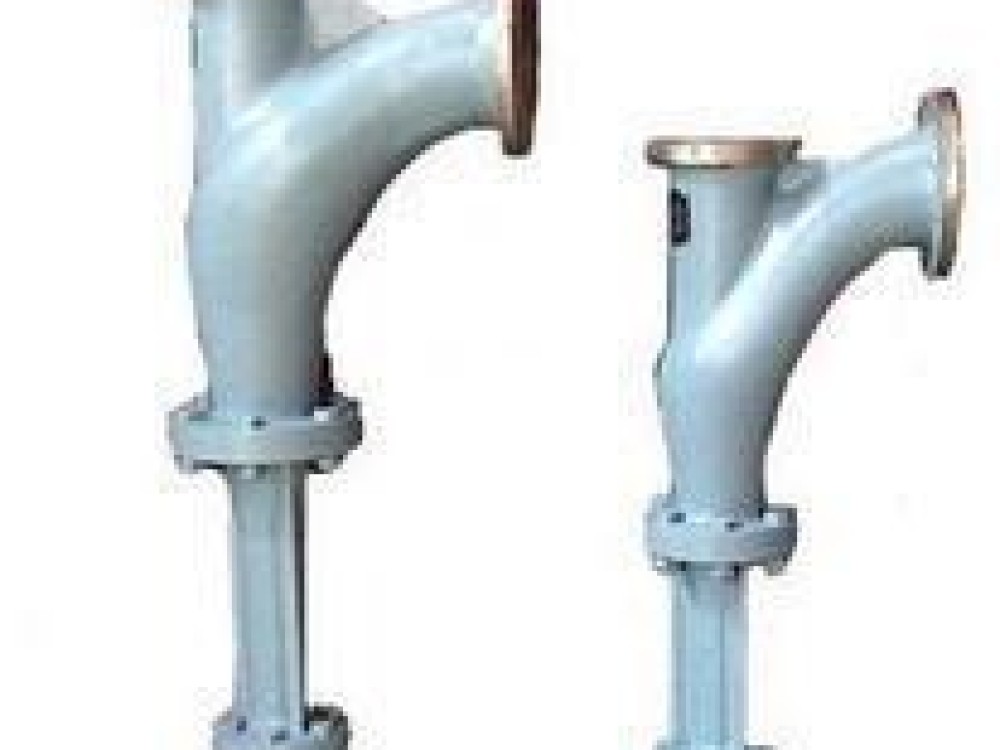

CPT series marine injection pump

General description

The pump suction flange axis perpendicular to the pump body axis,convenient installation. Has a self-priming performance,can work continuously steadily. No moving parts, long service life. Hydrophobic system is mainly used in ships, also can be used for environmental protection, chemical industry, water conservancy, building materials, etc, for sea water, mixed liquid, river dredging, conveying powder, etc

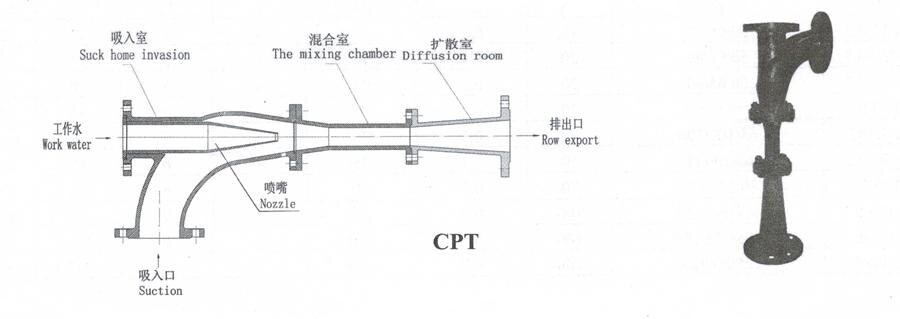

Structural Specifications


Performance prarmeter

Type Capacity Delivery suc'head working pressure water consumption weight
m3/h m m mpa m3/h kg
CP5-0.7T 5 8 4 0.7 3.6 14
CP5-0.3T 5 5 4 0.3 6 17.2
CP10-1.0T 10 20 5 1 16.7 16
CP10-0.7T 10 8 4 0.7 7 20
CP10-0.3T 10 5 4 0.3 12 20.5
CP15-0.5T 15 11 7 0.5 24 26
CP15-0.3T 15 5 4 0.3 19 25.8
CP15-0.7T 15 15 4 0.7 27 28.5
CP20-0.7T 20 8 4 0.7 14 28.5
CP20-0.3T 20 5 4 0.3 24 26
CP30-0.7T 30 8 4 0.7 21 32
CP30-0.3T 30 5 4 0.3 36 50
CP40-0.3T 40 5 4 0.3 47 49.5
CP50-1.0T 50 20 5 1 64 52
CP50-0.7T 50 8 4 0.7 35 48
CP50-0.3T 50 6 3 0.3 55 56
CP60-0.7T 60 6 6 0.7 50 55.5
CP80-0.7T 80 10 5 0.7 90 75
CP100-0.7T 10 9 2 0.7 60 71.5
CP100-0.3T 100 6 3 0.3 110 73
CP100-0.2T 100 7 3 0.2 305 120
CP200-0.7T 200 9 2 0.7 120
