CV-50/30, CV-40/30, Middle Pressure Water Cooling Marine Air Compresso

Request a Quote Not what you need, please send your RFQs via Email.

Details

Description:


Model: CV-50/30, CV-40/30, CV-30/30 automatic control unit for marine medium pressure air compressor

Type: type V, two row, water cooled, medium pressure piston type, elastic coupling direct drive.

Air displacement: 30~50 m3/h

Rated pressure: 3 MPa

Features:


Product features:

compact structure, high efficiency, light weight, small volume, low noise, low exhaust temperature, smooth operation; suitable for marine main engine and various medium-sized diesel engine start-up, also can be used for the brake of hydropower stations, all kinds of valves, meters, vessel pressure test and other needs 1.5-3.0 MPa of various industrial departments The door is used. The product can provide the following functions according to the user's needs: the main and backup of the two machines are mutual control function, temperature control function, import pressure controller, exhaust outlet high-pressure hose.

Product features:

there are single row, V type two stage compression piston type.

It has high efficiency, light weight, small volume, low noise and smooth operation.

Discharge capacity: 20~120 m3/h; rated pressure: 3 MPa.

The products have manual / automatic shutdown, starting, unloading and discharging functions.

It has direct drive and belt drive.

It is suitable for starting the main engine of ships.

Warm tips: according to user needs, you can provide:

1. The two machines are controlled by each other.

2. Temperature control function

3. Inlet pressure controller

4. Exhaust outlet high pressure hose

Techinical data:

Model Displacement Specified Pressure Rotating Speed Motor Power Dimension (L×W×H) Weight
m3/h m3/ min Mpa r/min kW HP mm kg
CZ-20/30SZK (Direct Connection) 20 0.34 3 960 5.5 7.5 900×600×850 250
CZ-20/30SZK 1000 1070×490×810 225
CV-30/30 (Direct Connection) 30 0.5 720 7.5 10 1230×730×690 330
CV-40/30 (Direct Connection) 40 0.67 870 11 15 1230×730×690 340
CV-50/30 (Direct Connection) 50 0.83 970 11 15 1230×730×690 340

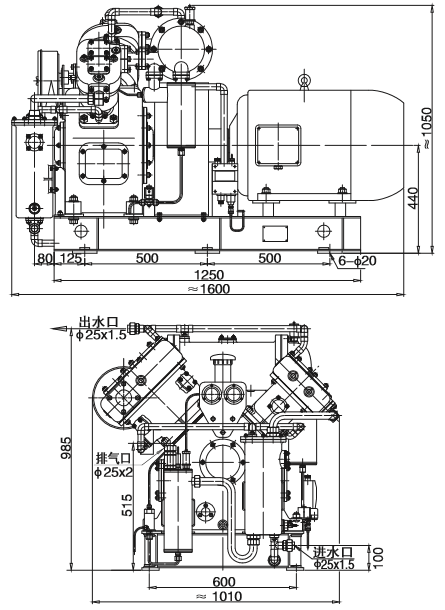

CV-90/30 (Direct Connection) 90 1.5 730 22 30 1600×1010×1050 900
CV-120/30 (Direct Connection) 120 2 975 30 40 1600×1010×1050 1000
