CVF-40/30 Marine Medium Pressure Air Compressor

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

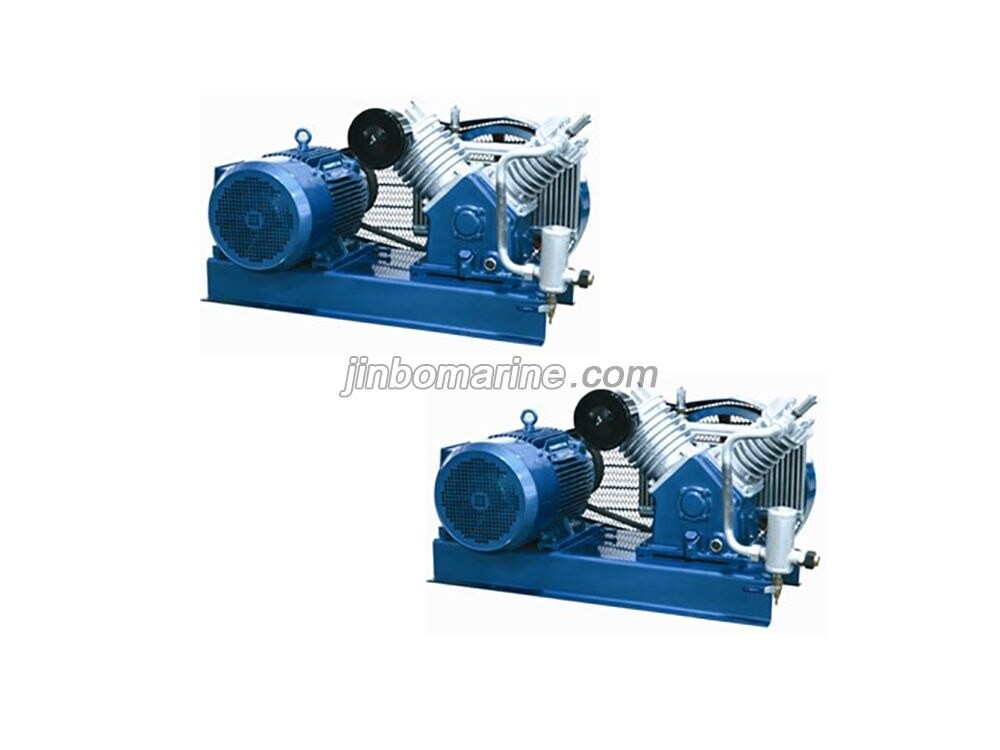

China CVF-40/30 Marine Medium Pressure Air Compressor:

Models: CVF-40/30

Type: V type, air cooled, two stage compression piston

Displacement: 40m3 / h

The rated pressure: 3.0 MPa

Product features

With highly efficient, low noise, smooth operation

Apply to ship host and all kinds of Marine diesel engine start, can also be used to start or braking of hydropower equipment, blow molding and rubber products, pressure vessel inspection, hyperbaric oxygen chamber, etc. It can also be for traffic construction and other industries to provide medium voltage source. According to the needs of users of products can provide the following functions

Two main for the functions of each control, temperature control, inlet pressure controller, exhaust outlet high pressure hose.

Specification

Model Displacement Specified Pressure Rotating Speed Motor Power Dimension（L×W×H） Weight
m3/h m3/ min MPa r/min kW HP mm kg
CVF-40/30 40 0.67 3.0 640 11 15 1100×650×580 300
