CWF-10/1 Type Marine Vertical Low Pressure Air Compressor
Model: CWF-10/1 Type: W, air cooled, two stage compression piston Displacement: 10 m3 / h The rated pressure: 1.0 MPa Product features Type has a single row, V, W, the secondar...
Loading product images...

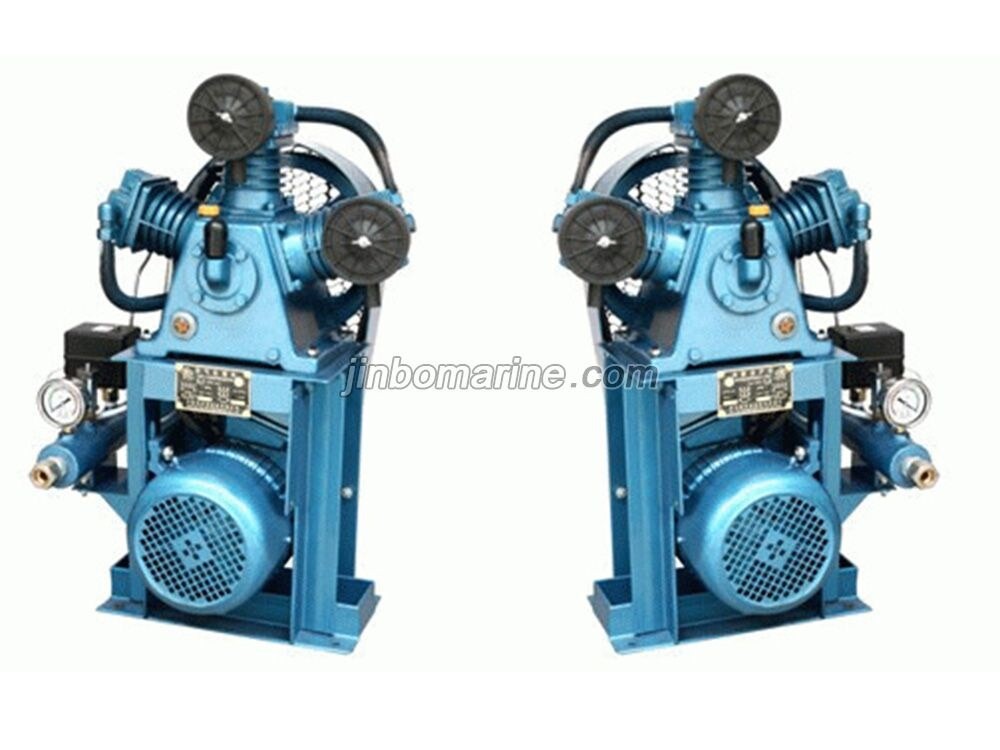

CWF-10/1 Type Marine Vertical Low Pressure Air Compressor
PDF Datasheet
We can supply according to your requirement.
China CWF-10/1 Type Marine Vertical Low Pressure Air Compressor:
Model: CWF-10/1
Type: W, air cooled, two stage compression piston
Displacement: 10 m3 / h
The rated pressure: 1.0 MPa
Product features
Type has a single row, V, W, the secondary compression piston.
Small size, light weight; Low energy consumption, low noise, long service life.
Products with manual/automatic stop, start, and unloading relief function.
Apply to ship whistle, oil and gas stove and ancillary equipment required for air.
Easy to maintenance.
Small size, light weight; Low energy consumption, low noise, long service life.
Products with manual/automatic stop, start, and unloading relief function.
Apply to ship whistle, oil and gas stove and ancillary equipment required for air.
Easy to maintenance.
Specification
| Model | Displacement Capacity（m3/h） | Specified | Rotating | Motor Power | Dimension（L×W×H）mm | Weight（kg） | |
| Pressure（MPa） | Speed（r/min） | kW | HP | ||||
| CWF-10/1(Vertical) | 10 | 1.0 | 750 | 1.5 | 2 | 500×400×740 | 85 |
| CWF—10/1 | 10 | 1.0 | 750 | 1.5 | 2 | 900×400×650 | 93 |
