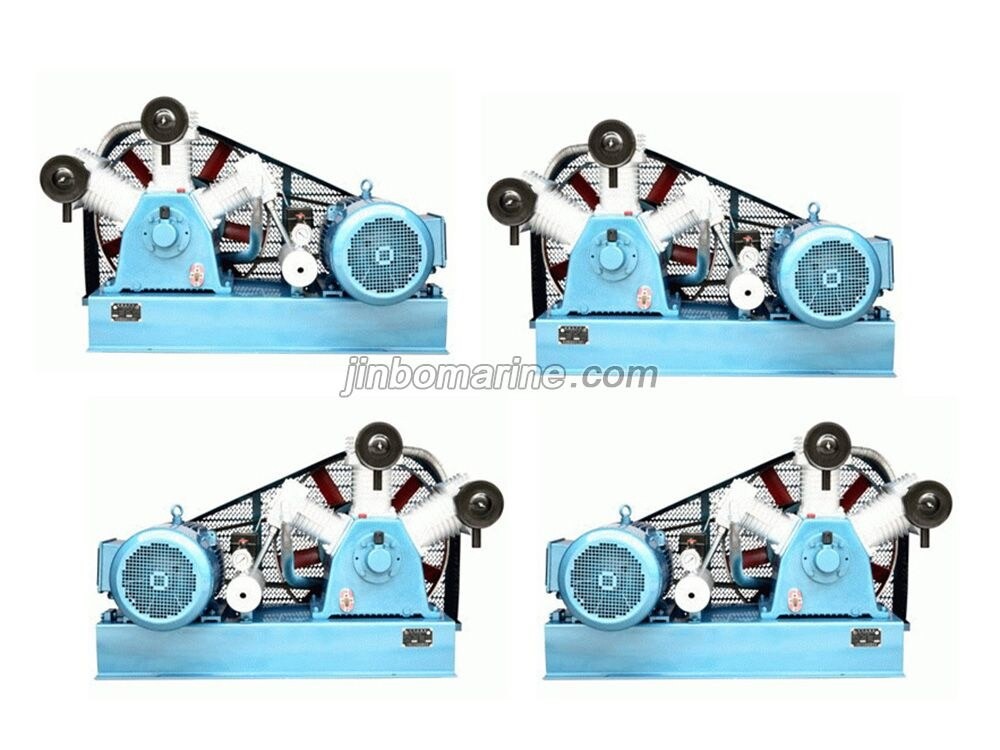

CWF-40/1 Type Low Pressure Marine Air Compressor
- Category:Low Pressure Air Cooled Marine Air Compressor
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China CWF-40/1 Type Low Pressure Marine Air Compressor:
Models: CWF-40/1
Type: W, air cooled, two stage compression piston
Displacement: 40 m3 / h
The rated pressure: 1.0 MPa
Product features
Type has a single row, V, W, the secondary compression piston.
Low energy consumption, low noise, long service life.
Products with manual/automatic stop, start, and unloading relief function.
Apply to ship whistle, oil and gas stove and ancillary equipment required for air.
Easy to maintenance.
Specification
| Model | Displacement Capacity（m3/h） | Specified | Rotating | Motor Power | Dimension（L×W×H）mm | Weight（kg） | |
| Pressure（MPa） | Speed（r/min） | kW | HP | ||||
| CZF—40/1 | 40 | 1.0 | 780 | 5.5 | 7.5 | 1220×560×810 | 260 |
