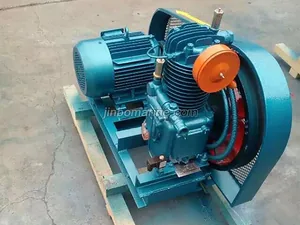

CZ-10/30 Medium Pressure Air cooled Marine Air Compressor

Request a Quote Not what you need, please send your RFQs via Email.

Details

China CZ-10/30 Medium Pressure Air cooled Marine Air Compressor:

Type: Belt driven,piston.
High efficiency,Light weight, Small volume, Low noise and reliable running.
Discharge capacity: 10.0m3/h.
Discharge pressure: 3.0 MPa.
Products with manual/automatic shutdown, starting, unloading and pressure relief.

Mainly used for starting the main engine of ships.

Specification

Model Type Displacement capacity Specified Pressure Rotating Speed Motor Power Weight Overrall Size (L*W*H)
m3/h m3/min Mpa r/min KW Kg mm
CZ-20/30 Vertical two stage compression 20 0.33 3.0 1000 5.5 210 970*490*710 Belt unit 1130*510*710 Water cooled unit
CZ-10/30 10 0.167 500 3.0
Applicable to less than 0.32 cubic meters of air bottle
