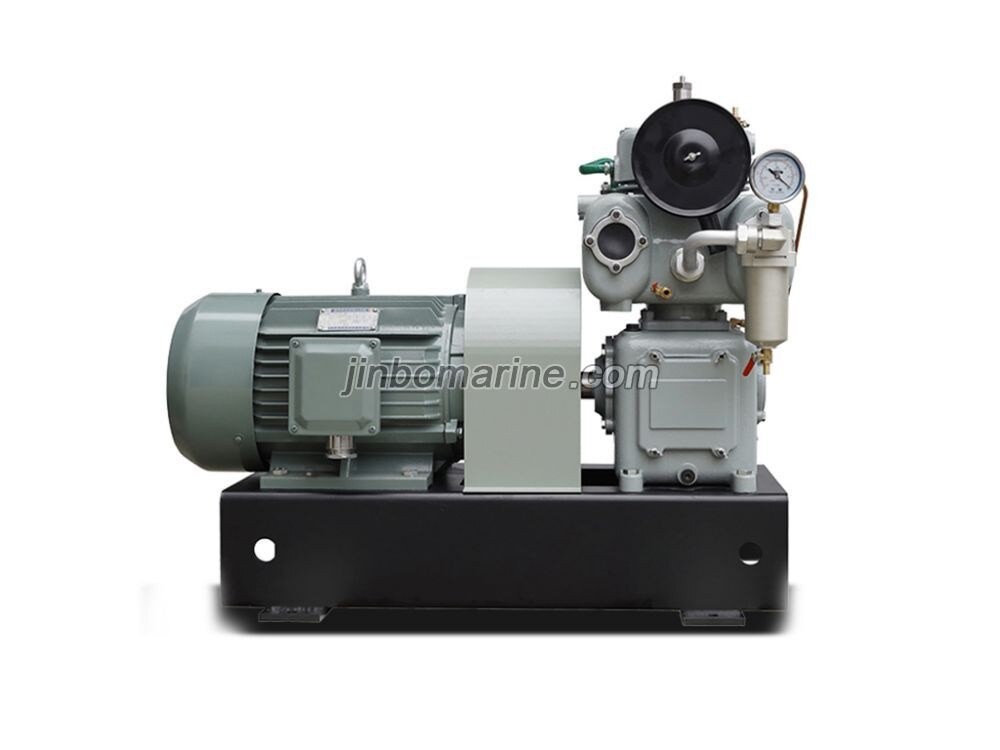

CZ-20/30S Series Middle Pressure Water Cooling Marine Air Compressor

Request a Quote Not what you need, please send your RFQs via Email.

Details

CZ-20/30S Series Middle Pressure Water Cooling Marine Air Compressor

1. Water cooled unit, small volume, low noise,

2. Automatic control, high and low pressure automatic start and stop, automatic unloading and blowdown;

3. Provide the certificate of classification society

4. Through water cooling, the cooling effect is good and the work is stable and reliable.

5. Stable exhaust pressure, low maintenance cost and long service life

6. Main air compressor for ships

Technical data:

No. Model Volume flow m3/min Exhaust pressure MPa Power kW Frequency HZ Rated speed r/min Weight kg L x W x H mm
1 CZ-20/30S 20 3 5.5 50 1000 230 900x500x680
