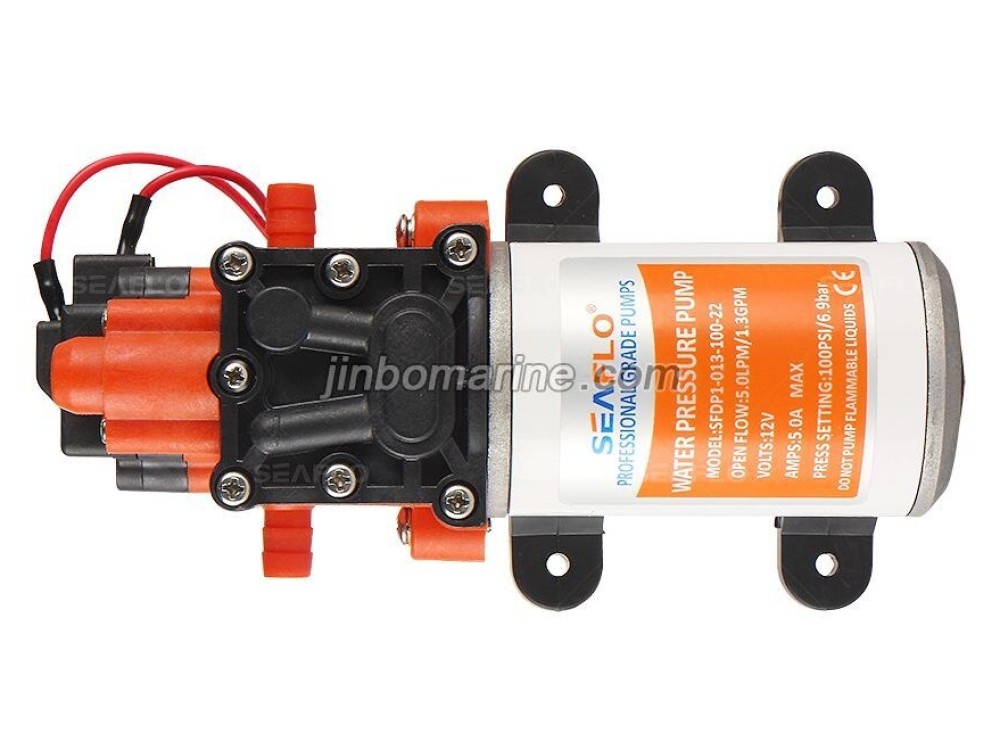

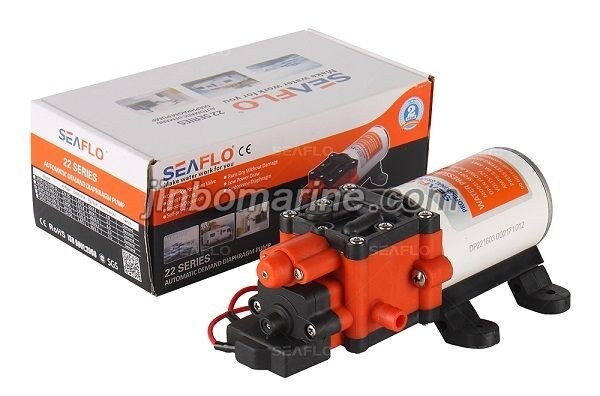

Diaphragm Pump - 22 Series DC
General description:
12V/24V 2.0-5.0LPM 17-120PSI
The 22-Series Pumps are compact and designed for a wide range of applications including liquid transfer, spraying, circulation, filtration and dispensing. The 22-series of diaphragm pumps are self-priming, can be run dry without harm and have an internal bypass feature which reduces pump cycling. It provides up to 1.4 gallons per minute. Miniature multi outlet water pressure pump serves 1 or 2 3/8” (10 mm) outlets at any one time. This compact automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when faucet is opened and closed.
Parameter pump and motor:
| PUMP | |
| Type |
2 Chamber positive displacement diaphragm pump, self priming, capable of being run dry |
| Control Type | Pressure switch & By pass control |
| Max Recommended Temperature | 60° C (140° F) |
| Priming Capabilities | 6 feet (1.8 m) suction lift |
| Re-start Pressure |
Shut-off Pressure 60 PSI : 48 PSI ±5 PSI (±0.3 bar) Shut-off Pressure 80PSI : 65 PSI ±5 PSI (±0.3 bar) Shut-off Pressure 100PSI : 75 PSI ±5 PSI (±0.3 bar) |
| Inlet/Outlet Ports | 3/8" (10mm) hose barb |
| Weight | 2.4lbs (1.1kg) |
| MOTOR | |
| Leads | 18 AWG, 10" (25cm) long with 2-Pin connector/Leads |
| Duty Cycle | Intermittent |
| Max. Draw | 6.0 A |
| Fuse Amps | 9.0 A |
STANDARD PUMP CONFIGURATIONS
| Model | Voltage |
Open Flow (GPM/LPM) |
Control Type |
Max Draw |
Shut-off Pressure (PSI/BAR) |
Valves | Diaphragm | Ports |
Wire Connections |
| SFDP1-013-060-22 | 12V | 1.3 / 5.0 | Demand & Bypass | 5.0A | 60 / 4.1 | EPDM | Santoprene | 3/8" Barb | 2-Pin/Leads |
| SFDP2-013-060-22 | 24V | 1.3 / 5.0 | Demand & Bypass | 2.5A | 60 / 4.1 | EPDM | Santoprene | 3/8" Barb | 2-Pin/Leads |
| SFDP1-013-100-22 | 12V | 1.3 / 5.0 | Demand & Bypass | 6.0A | 100 / 6.9 | EPDM | Santoprene | 3/8" Barb | 2-Pin/Leads |
| SFDP2-013-100-22 | 24V | 1.3 / 5.0 | Demand & Bypass | 3.0A | 100 / 6.9 | EPDM | Santoprene | 3/8" Barb | 2-Pin/Leads |
| SFDP1-014-080-22 | 12V | 1.4 / 5.1 | Demand & Bypass | 5.5A | 80 / 5.5 | EPDM | Santoprene | 3/8" Barb | 2-Pin/Leads |
