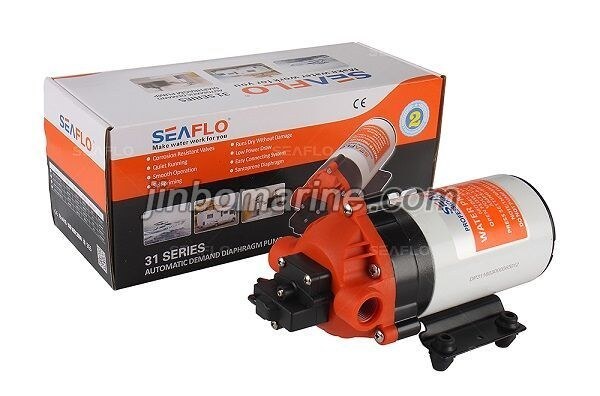

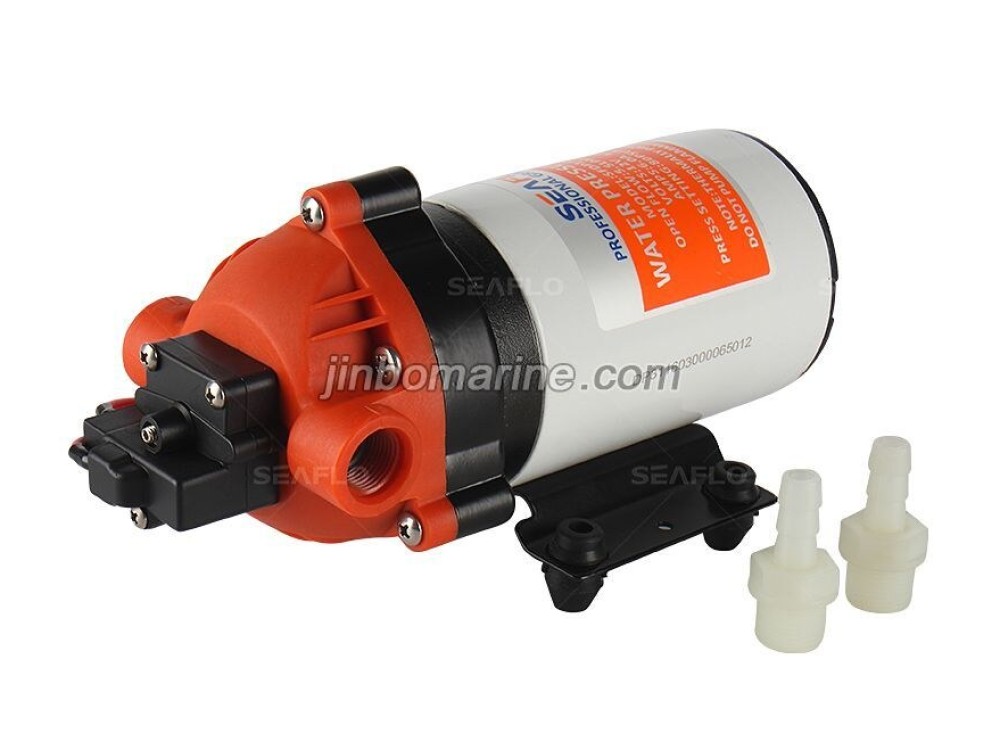

Diaphragm Pump - 31 Series DC
- Category:Diaphragm Pump
- Standards:standard
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
China Diaphragm Pump - 31 Series DC:
Diaphragm Pump -31 Series DC
General description:
12V/24V 2.0-8.0LPM 17-160PSI
The 31-Series is our continuous-duty on-demand positive displacement pump. It provides reliable performance in moderate water flow, high-pressure applications. This 3-chamber diaphragm pump provides up to 1.8 gallons per minute and is capable of self-priming up to 6 vertical feet, and can run dry without damage. Miniature multi outlet water pressure pump serves 1 or 2 3/8” (10 mm) outlets at any one time. This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops when the fixture is opened and closed. They are easy to install, service and winterize.
Parameter pump and motor:
| PUMP | |
| Type | 3 Chamber positive displacement diaphragm pump, self priming, capable of being run dry |
| Control Type | Pressure switch |
| Max Recommended Temperature | 60° C（140° F） |
| Priming Capabilities | 6 feet (1.8 m) suction lift |
| Re-start Pressure | Shut-off Pressure 80PSI : 65 PSI ±5 PSI (±0.3 bar) |
| Inlet/Outlet Ports | 3/8"-18 FNPT |
| Weight | 5.0 lbs (2.3 kg) |
| MOTOR | |
| Leads | 16 AWG, 13" (33cm) long with 2-Pin connector/Leads |
| Duty Cycle | Continuous |
| Max.Amp Draw | 9.0 A |
| Fuse | 13.5 A |
STANDARD PUMP CONFIGURATIONS
| Model | Voltage |
Open Flow (GPM/LPM) |
Control Type |
Max Draw |
Shut-off Pressure (PSI/BAR) |
Valves | Diaphragm | Ports |
Wire Connections |
| SFDP1-015-080-31 | 12V | 1.5 / 5.5 | Switch | 8.0 | 80 / 5.5 | EPDM | Santoprene | 3/8"-18 FNPT | 2-Pin/Leads |
| SFDP2-015-080-31 | 24V | 1.5 / 5.5 | Switch | 4.5 | 80 / 5.5 | EPDM | Santoprene | 3/8"-18 FNPT | 2-Pin/Leads |
| SFDP1-018-080-31 | 12V | 1.8 / 7.0 | Switch | 9.0 | 80 / 5.5 | EPDM | Santoprene | 3/8"-18 FNPT | 2-Pin/Leads |
| SFDP2-018-080-31 | 24V | 1.8 / 7.0 | Switch | 4.5 | 80 / 5.5 | EPDM | Santoprene | 3/8"-18 FNPT | 2-Pin/Leads |
