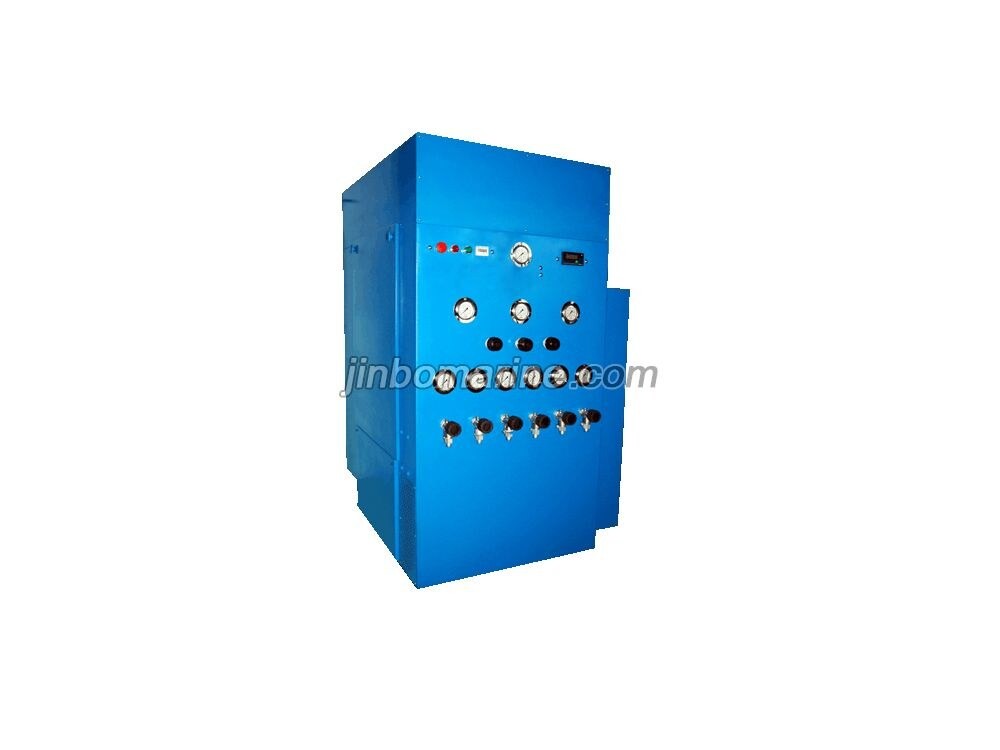

Diving Breathing High Pressure Air Compressor LYW500

LYX500 high pressure air compressor is silent and stationary compressor for breathing in diving, firefighting industry. It compresses free air to 30Mpa and removes oil, vapor and other contaminants by filters and separators. Noise is very small. It is safe and reliable source of pure air. The air quality accords to EN international breathing compressed air quality.

Air-cooling piston reciprocating
Oil splash lubrication
Copper pipe inter-cooler and after cooler
Specially treated alloy cylinder, piston and piston ring
High-strength nylon cooling fan assembly
Intake filter
Anti-shock floor mat
Manual condensate drain knob
Filling hose and filling valve
Safety valves protection for every stage
High temperature resistance plastic powder coating steel frame and base
Activated carbon, monocular sieve for air purification in the filter
Consumables and manuals are provided with every compressor
The warranty period is 1 years

Model	Drive	Operating pressure	Delivery rate	Power	Dimension	Net weight	Noise level
LYX500	Three-phase motor	Max 30Mpa	500L/min	11kw	98*120*165 Cm	500 kg	<75 dB（A）
