DSG51A Multi-Function Pipe Crimping Machine
- Category:Hose Crimping Machine
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

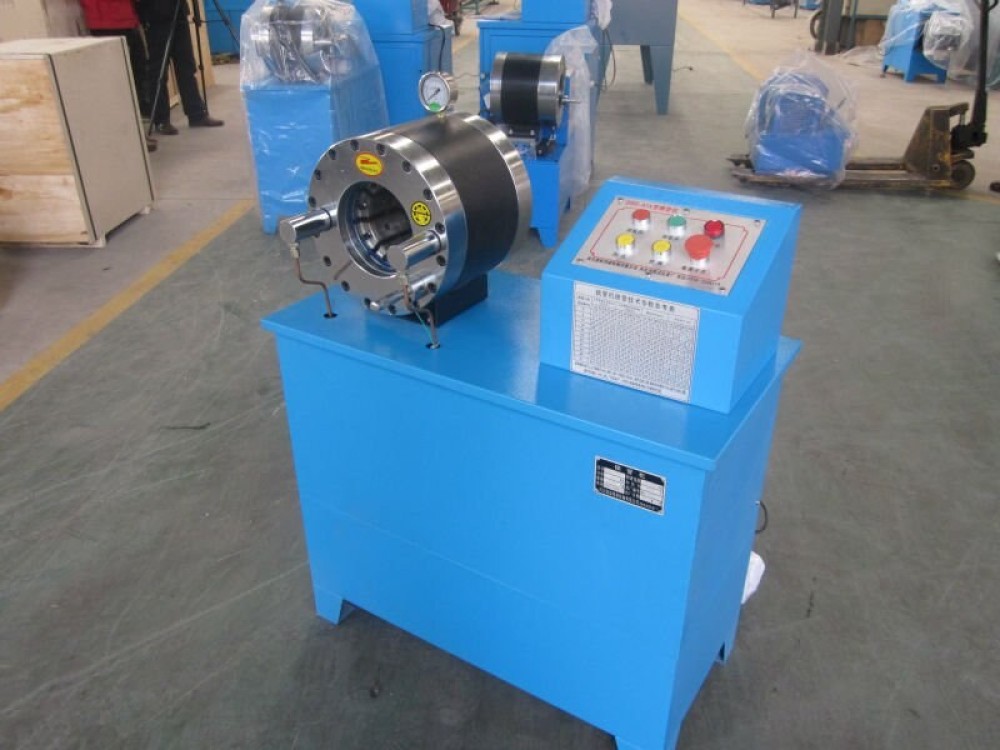

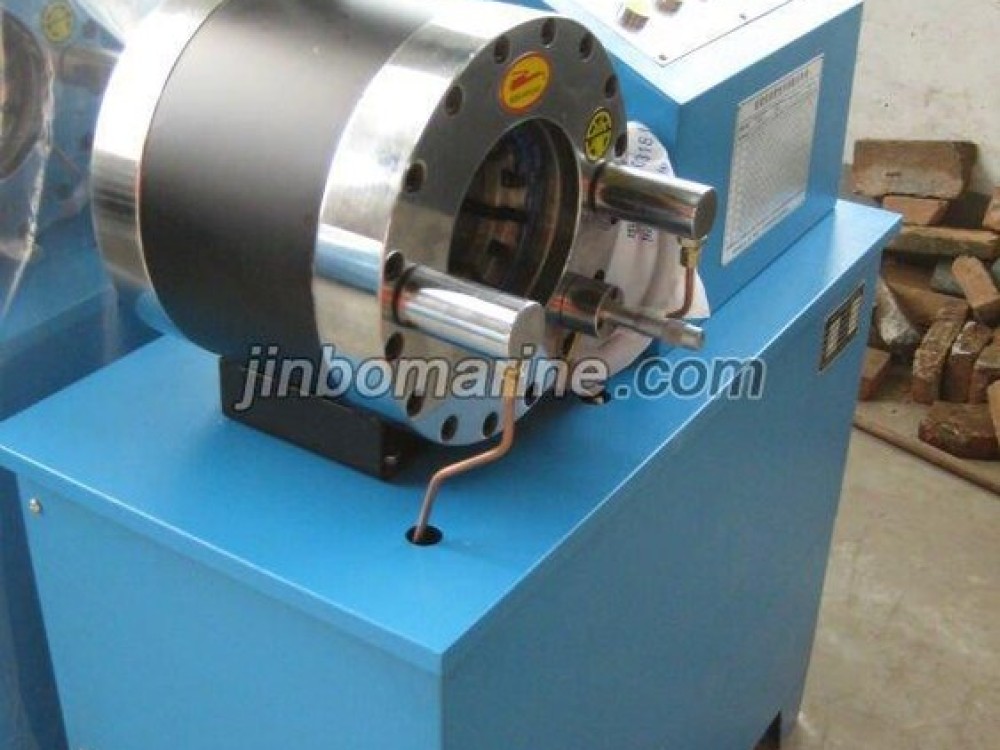

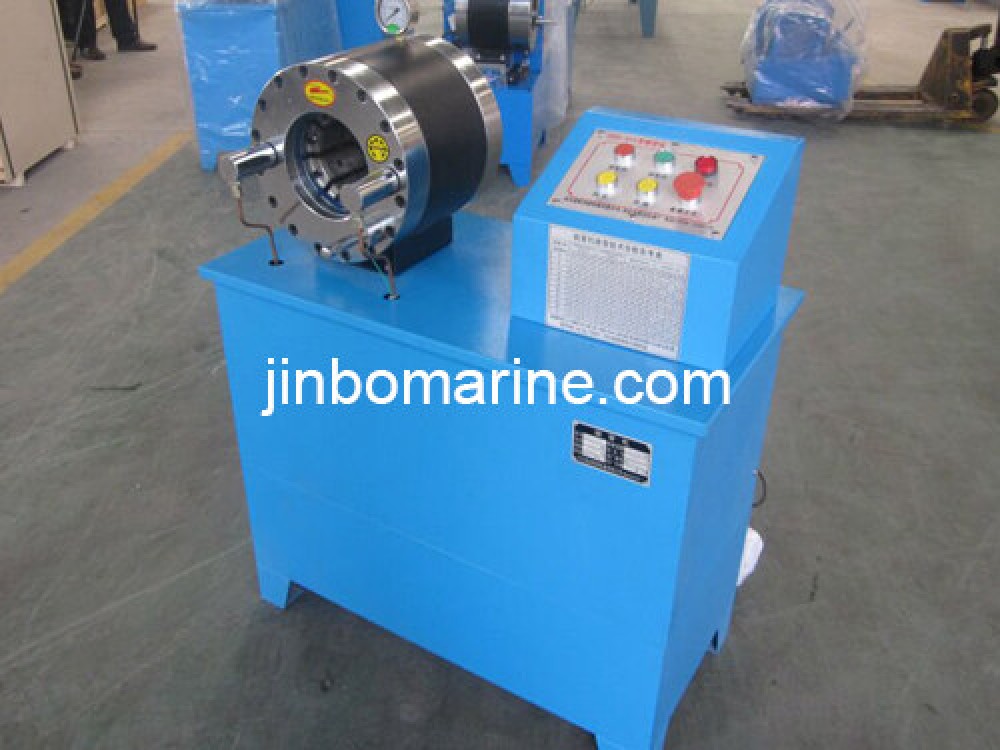

China DSG51A Multi-Function Pipe Crimping Machine:
DSG51A Multi-function pipe crimping machine is suitable for industry,agriculture hose crimping. This machine is small, light and easy for operation.
| Model | DSG-51A | DSG-51B |
| Crimping Inside Diameter(mm) | φ6～φ51 | |
| Ruler Precision(mm) | 0.02 | |
| Max. Crimping Force(T) | 407 | |
| Motor Speed(r/min) | 1420 | |
| Oil Pump Capacity (ml/r) | 10 | |
| Oil Pump Rated Pressure（MPa） | 20 | |
| Overall Size(mm) | 850×430×1030 | |
| Power(kW) | 3 | 3.75 |
| Weight(kg) | 240 | 260 |
| Name: | Hose crimping machine,hose crimper,Pipe locking machine,Locking pipe machine,tube locking machine, tube crimping machine,tube crimper,pipe crimping machine,pipe crimper. |
| Usage | Crimping hose |
| Popular type: | DX68 Hydraulic high pressure hose crimping machine 6-51mm |
| DSG51A Multi-function pipe crimping machine 6-51mm | |
| DSG51B Multi-function pipe crimper 6-51mm | |
| DSG75 High pressure hose crimper 6-75mm | |
| DSG150 High pressure hose crimping machine 6-150mm | |
| DSG102S hose crimping machine 6-102mm | |
| DSG250A Locking Pipe Machine 6-51mm | |
| DSG250B tube crimping Machine 6-51mm | |
| DSG250C Pipe Locking Machine 6-51mm | |
| JK400 tube crimper 6-64mm | |
| JKS200 Manual type hose crimping machine 6-32mm | |
| SK100 Numeric control locking pipe machine 4-89mm |
