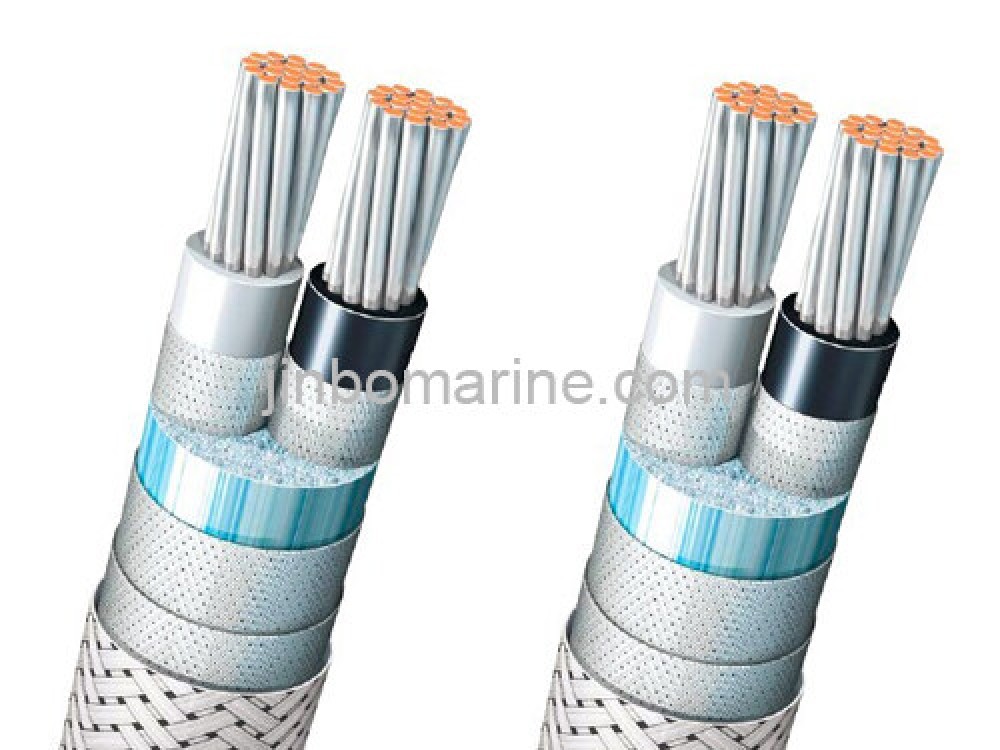

DSRC Double Cores Marine Power & Lighting Cable
- Category:JIS C 3410 Cable
- Material:Tinned Copper/Silicone Rubber insulation/Galvanized Steel Wire Braided/
- Standards:JIS C 3410-1999
- Certificate:LR, ABS,BV, GL, RINA, DNV, NK, KR, CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
China DSRC Double Cores Marine Power & Lighting Cable:
DSRC Cable is Double Cores Silicone Rubber Galvanized Steel Wire braided High Temperature Use Marine Power & Lighting Cable.
TSRC Cable is Three Cores Silicone Rubber Galvanized Steel Wire braided High Temperature Use Marine Power & Lighting Cable.
Cable Construction
|
Classification |
Code |
Construction details |
|
Conductor |
D/T |
Tinned Copper Wire JIS C3410 |
|
Insulation |
SR |
Silicone Rubber as per JIS C 3410 |
|
Armor |
C |
Galvanized steel wire braided |
|
Paint |
|
The white paint should be painted uniformly |
Standards
Design : JIC C 3410(1999)
Flammability: IEC 60332-1 & IEC 60332-3 Category A
Cores & Size
Number of Conductor: 2 Cores or 3 Cores
Size of Conductor (mm2): 1.5 2.5 4
Feature
Halogen-free, Low Smoke, Flame retardant
Maximum Working Voltage and Testing Voltage
| Nominal voltage (V) | Maximum working voltage (V) | (Test voltage) V/min. | |
| a.c | d.c | ||
| 250V | 250V | 450V | 1500/5 |
| 0.6/1 kV | 0.6/1 kV | 0.9/1.5kV | 3500/5 |
Minimum Bending Radius
The bending radius for the installation of cables should be not less than the values given as follows：
| Type of cable | Minimum bending radius |
 |
|
| Up to 1.8/3kV | Unarmored or unbraided |
|
|
| D ≤ 25mm | 4XD | ||
| D > 25mm | 6XD | ||
| Metal braid screened or armored | 6XD | ||
| Tape screened | 8XD | ||
| 3.6/6kV | Single core | 12XD | |
| above | 3-core | 9XD | |
Application:
The cable is fixed installation, used for power, lighting and control in most area and open deck area in ship.
