DZ-5000 Big Capacity marine motorized plunger type oily water delivery pump
- Category:Reciprocating Pump
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details

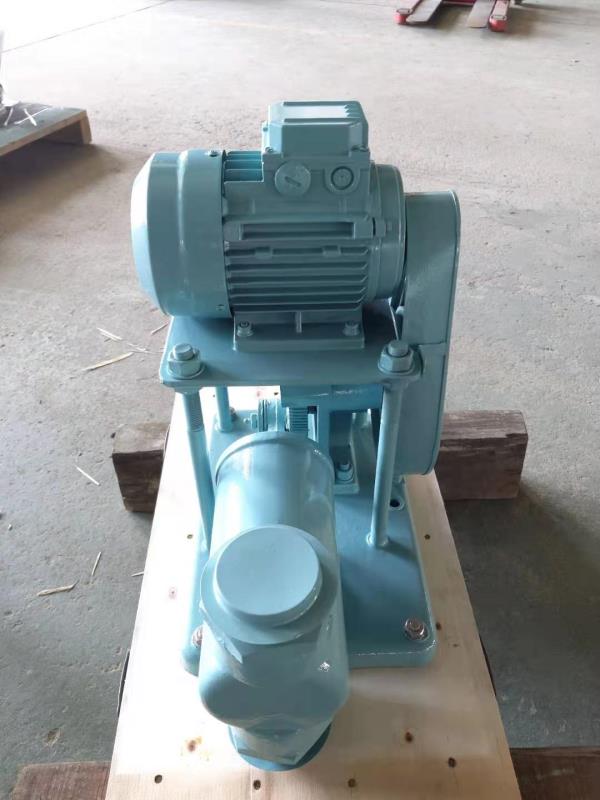

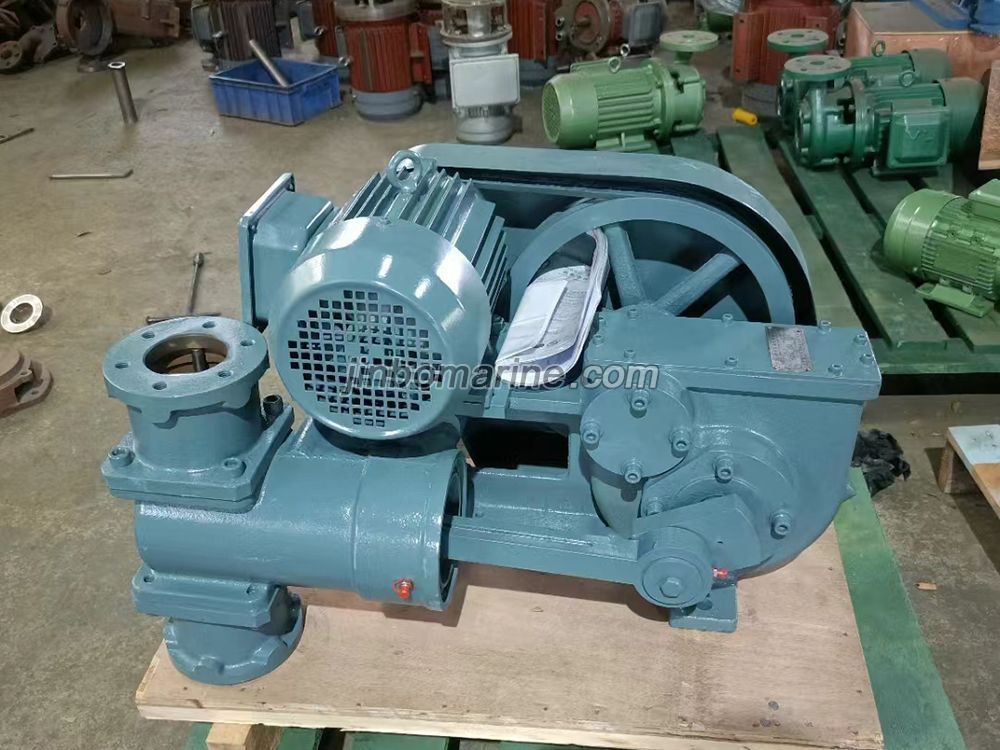

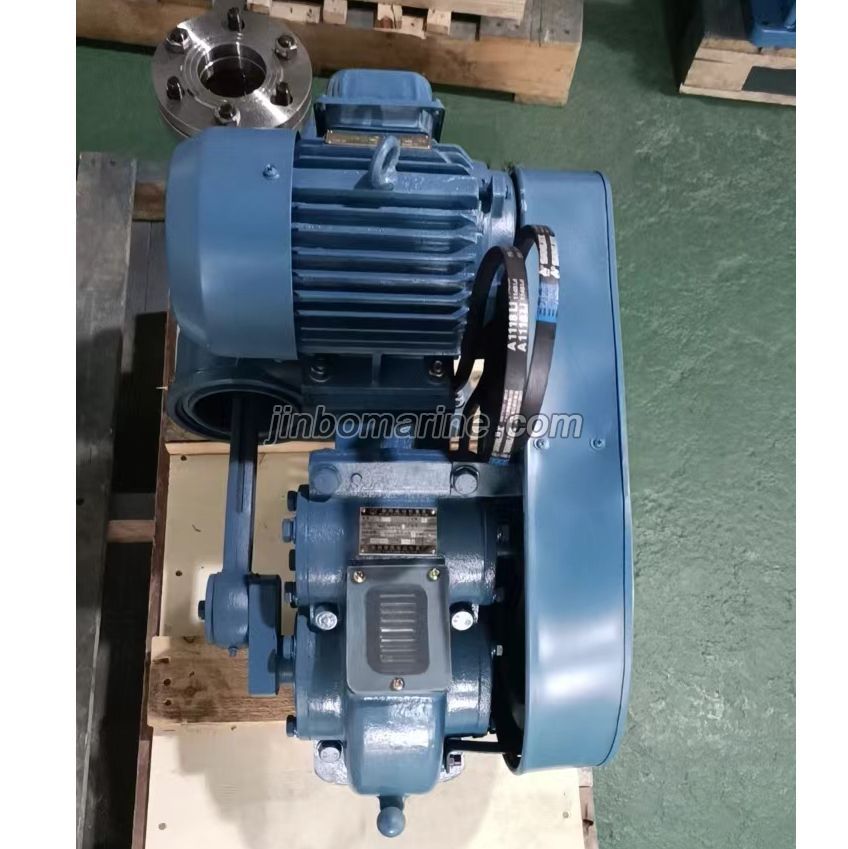

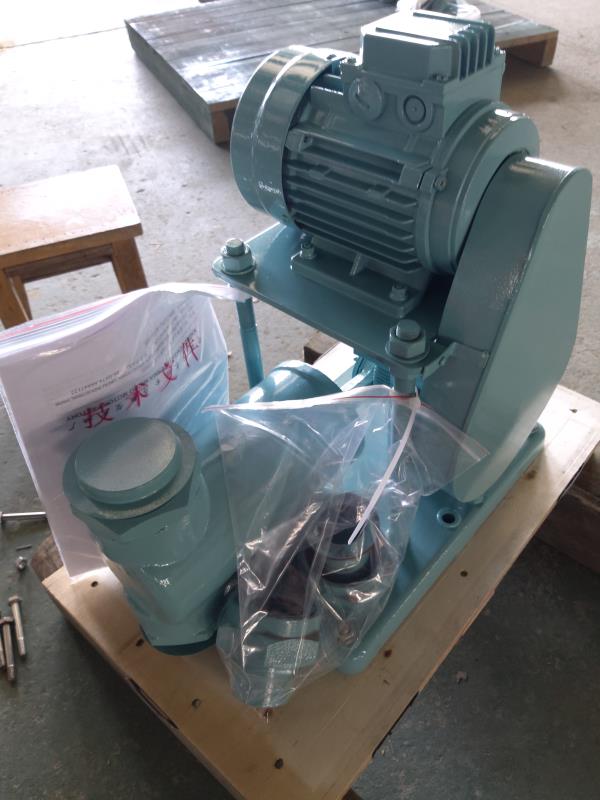

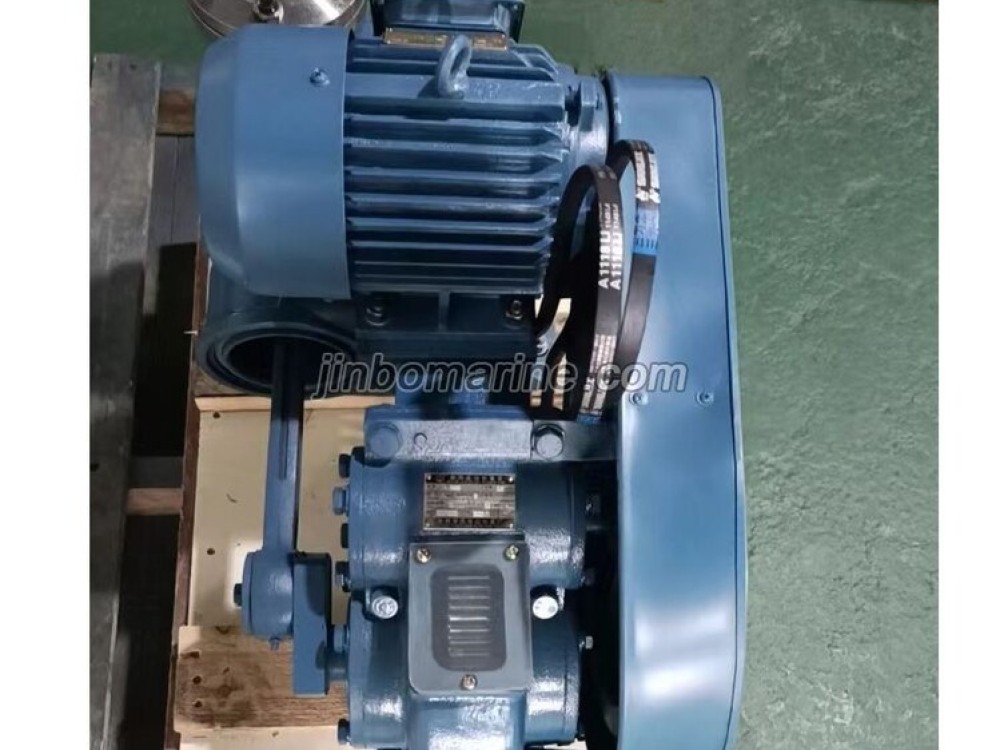

DZ-5000 Big Capacity marine motorized plunger type oily water delivery pump
DZ-5000 marine motorized plunger type oily water delivery pump is a single cylinder single-action horizontal reciprocating motorized plunger-type pump manufactured according to the technical standard CB/T3160-92.
Testing by the Chinese classification societies has made an inspection of it to find that all the performances and index meet the requirements of the national ship building code. The model of the product has been approved.
Techincal data:
|
Item |
Type |
DZ-100 |
DZ-250 |
DZ-500 |
DZ-1000 |
DZ-2000 |
DZ-3000 |
DZ-4000 |
DZ-5000 |
|
|
Head |
Mpa |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
|
|
Delivery capacity |
m³/h |
0.1 |
0.25 |
0.5 |
1 |
2 |
3 |
4 |
5 |
|
|
Suction lift |
m |
6 |
6 |
6 |
6 |
6 |
6 |
6 |
6 |
|
|
Reciprocating times |
min |
50 |
56 |
50 |
50 |
70 |
70 |
60 |
70 |
|
|
Stroke |
mm |
28 |
42 |
64 |
64 |
80 |
90 |
120 |
120 |
|
|
Cylinder diameter |
mm |
40 |
50 |
60 |
85 |
90 |
105 |
115 |
115 |
|
|
Suction and discharge |
mm |
20 |
25 |
25 |
40 |
40 |
50 |
65 |
65 |
|
|
Motor |
Power |
KW |
0.12 |
0.18 |
0.25 |
0.37 |
0.75 |
1.1 |
1.5 |
1.5 |
|
Voltage |
V/HZ |
A.c380/50 |
A.c380/50 |
A.c380/50 |
A.c380/50 |
A.c380/50 |
A.c380/50 |
A.c380/50 |
A.c380/50 |
|
|
Speed |
r/min |
1400 |
1400 |
1400 |
1400 |
1400 |
1400 |
1400 |
1400 |
|
|
YS-H6314 |
YS-H6324 |
YS-H7114 |
YS-H7124 |
YS-H8024 |
Y90S-4-H |
Y90L-4-H |
Y90L-4-H |
|||
|
Pump weight |
kg |
15 |
27 |
27 |
37 |
47 |
110 |
140 |
140 |
|
|
Outline |
Length |
mm |
293 |
345 |
405 |
452 |
467 |
710 |
800 |
800 |
|
Width |
mm |
190 |
230 |
275 |
265 |
340 |
390 |
420 |
420 |
|
|
Height |
mm |
316 |
360 |
420 |
435 |
490 |
490 |
520 |
520 |
|
