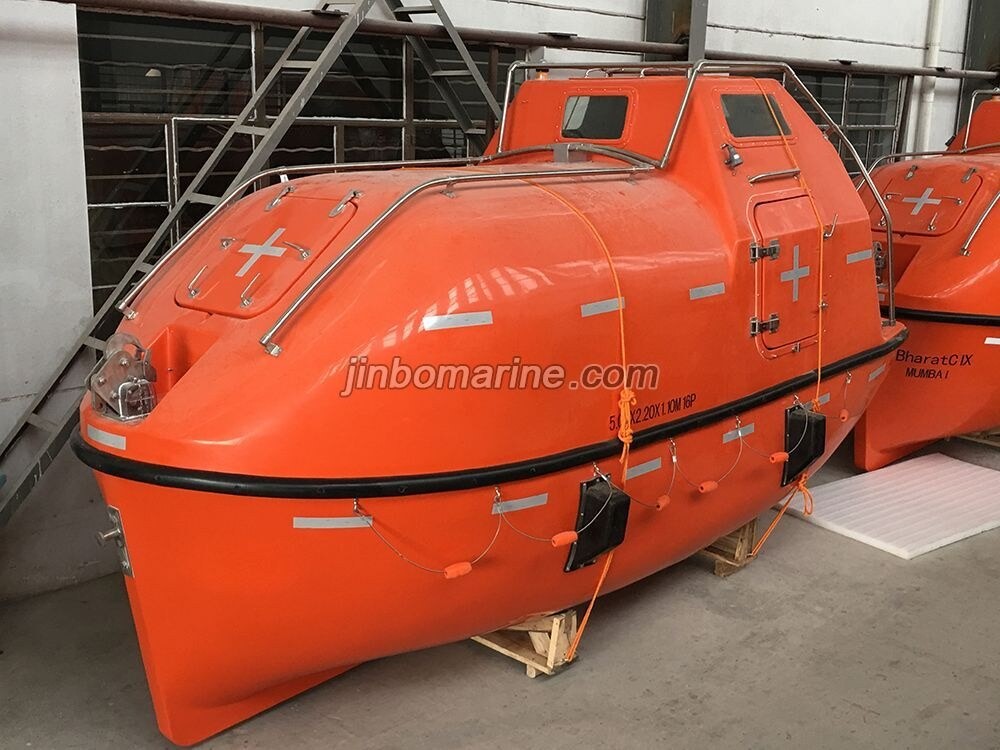

Fireproofing Type GRP Totally Enclosed Lifeboat Rescue Boat

Request a Quote Not what you need, please send your RFQs via Email.

Details

Product Description:

Totally enclosed lifeboat has been designed and manufactured in accordance with LIFE-SAVING APPLIANCE CODE MSC.218(82)&MSC.272(85) and tested in accordance with MSC. 81(70) and its amendments MSC.226(82) &MSC.274(85)

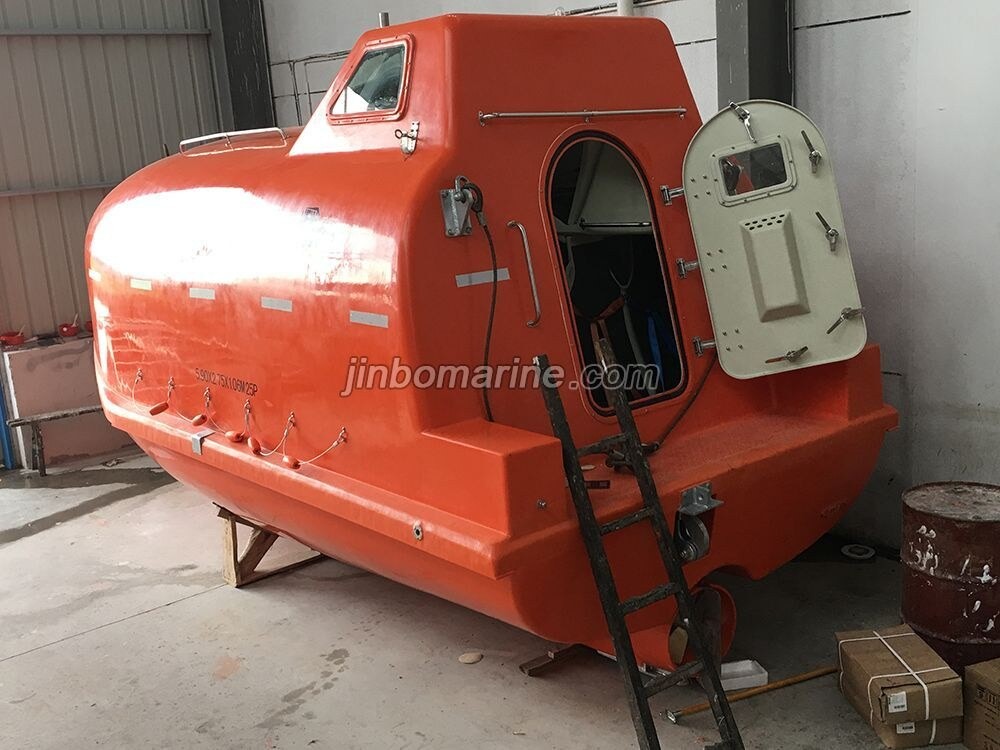

The boat will be launched and recovered by the gravity davit. The helmsman inside can launch the boat through the control wire. For convenient boarding, two side doors are provided as the embarking way.

Length: 5.00M

Breadth: 2.20M

Height: 2.85M

Passengers:26 PERSONS

APPROX. WEIGHT (LIGHT/FULLY LOADED) 2447Kg/4592Kg

AIR CYLINDERS 3×45 Ltr.

Engine :

ENGINE MODEL

POWER

REVOLUTION

380J-3

20.6KW/28.03HP

2800RPM

FUEL CAPACITY 154L / 40.5 GAL

SPEED ³6 Kn

Construction:

The boat is constructed of GRP with hand lay-up method. The hull, inner hull, canopy and the roof are separately moulded in "One Piece". The space between the hull and inner hull will be filled with P.U. foam as buoyancy tank.

All mats, woven roving, resins and the buoyancy foam have been approved by classification societies or administrations, and the resins are of self-extinguishing quality.

All the fittings and components are made of stainless steel, maritime grade aluminium, copper or galvanised steel. That makes the corrosion to a minimum degree.

Strength and Buoyancy:

Boat structure has been designed in accordance with the requirements of the classification societies, and has sufficient strength to resist potential load during its launching, being towed, even operating at a rough sea.

The P.U. foam filled in the lifeboat will provide sufficient buoyancy to ensure the lifeboat not sinking under any potential damage conditions.

Available type:

We have normal type and Fire proofting type totally enclosed lifeboat/rescue boat available.

Fire proofing type have equipped with emergency air supply system and water spray system.

Available Model:

Model Number Dimension Passenger Hook distance(meter) Total weight()
50C 5mx2.2mx1.1m 26 4.6 4204
50F 5mx2.2mx1.1m 26 4.6 4404
65C 6.5mx2.32mx1.15m 36 6.1 5561
65F 6.5mx2.32mx1.15m 36 6.1 5861
