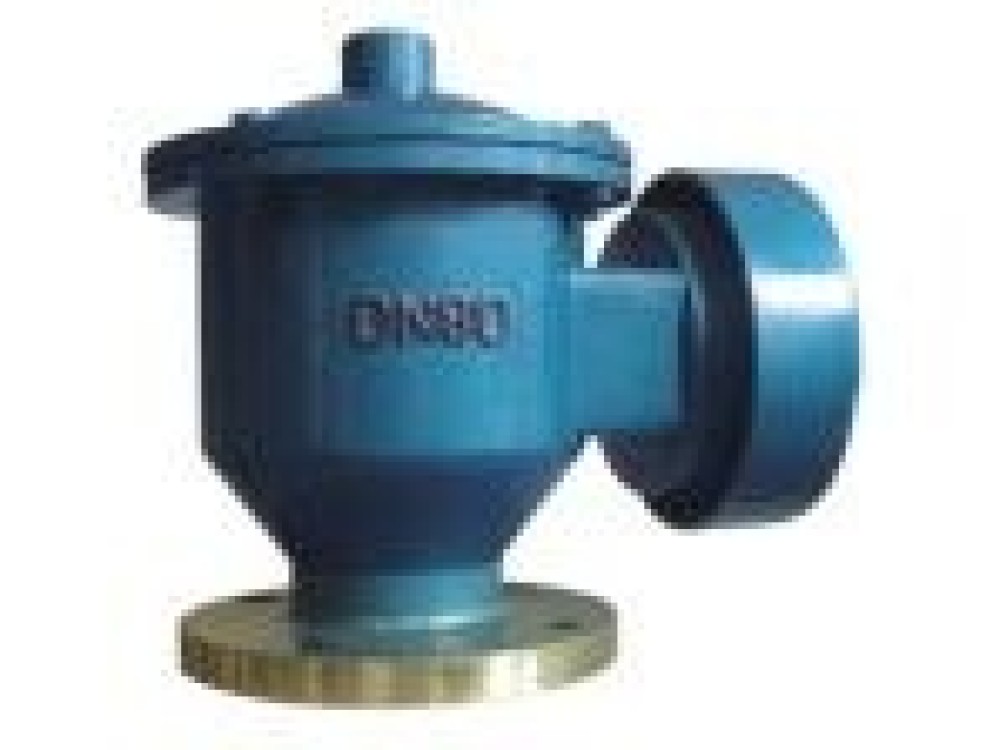

Flame Arrestor Breather Valve
Flame Arrestor Breather Valve has the feataure of flame arrestor and breather valve. It is a new type of safety equipment in petrochemical tank, the great advantage is good performance ...
Loading product images...
Flame Arrestor Breather Valve
PDF Datasheet
We can supply according to your requirement.
China Flame Arrestor Breather Valve:
Flame Arrestor Breather Valve has the feataure of flame arrestor and breather valve. It is a new type of safety equipment in petrochemical tank, the great advantage is good performance of breathing fire, light weight, easy maintenance.
Installation Size
| DN | Installation Size（mm） | ||||
|---|---|---|---|---|---|
| D | K | L | H | n×φ | |
| DN25 | 115 | 85 | 160 | 165 | 4×14 |
| DN32 | 135 | 100 | 180 | 185 | 4×18 |
| DN40 | 145 | 110 | 190 | 190 | 4×18 |
| DN50 | 160 | 125 | 220 | 220 | 4×18 |
| DN80 | 195 | 160 | 270 | 260 | 8×18 |
| DN100 | 215 | 180 | 310 | 280 | 8×18 |
| DN150 | 280 | 240 | 380 | 330 | 8×22 |
| DN200 | 335 | 295 | 450 | 380 | 12×22 |
| DN250 | 395 | 350 | 520 | 420 | 12×22 |
| DN400 | 565 | 515 | 670 | 520 | 16×26 |
