FLL32A Centrifugal Lubricant Filter

Request a Quote Not what you need, please send your RFQs via Email.

Details

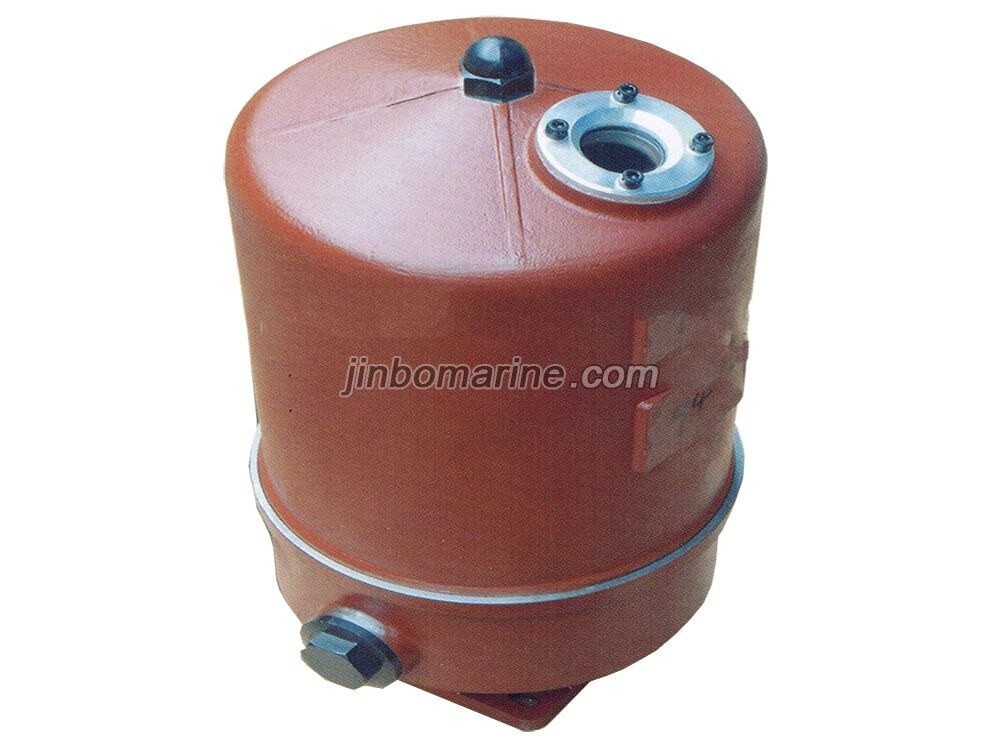

FLL32A Centrifugal Lubricant Filter

Characteristics:
1.the limited pressure value is installed to make the main machine rotate easily
2.the dynamic balance of the rotor is finished,the characteristics is reliable to reduce the moving fittings worn and extend the use-life of the moving fittings 2-3 times.
3.the weight is light and the volume is small,the disassembing is convenient and simple.
4.the dirt chamber can separate 5um foreign grain, the washing period is long and the separating result is good.

Opening pressure of limited pressure value of the filter Rotating test Oil temperature Rotational speed Dynamic balance test
2.5±0.3kgf/cm² 0.7Mpa 75℃ 4250r/min <5g.cm

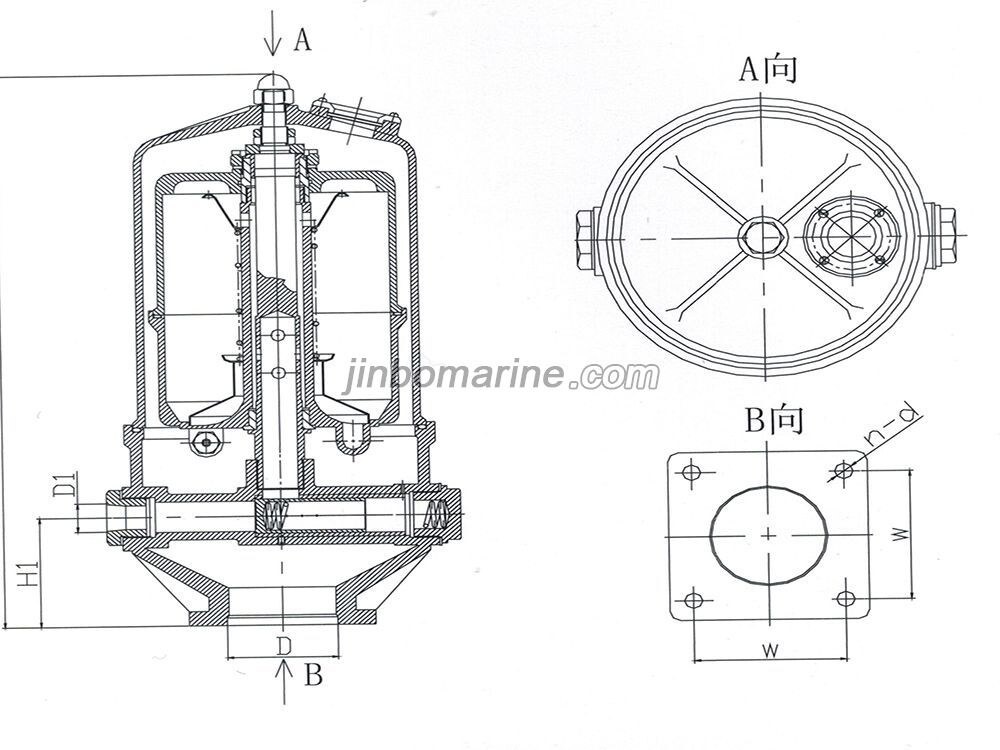

FLL32A Centrifugal Lubricant Filter Drawing

FLL32A Centrifugal Lubricant Filter Technical Parameters

Model External dimensions(mm)
D D1 H H1 W*W N-D
FLL32A 98 ZG3/4 580 115 126*126 4-15
FLL32AG 98 566 112
