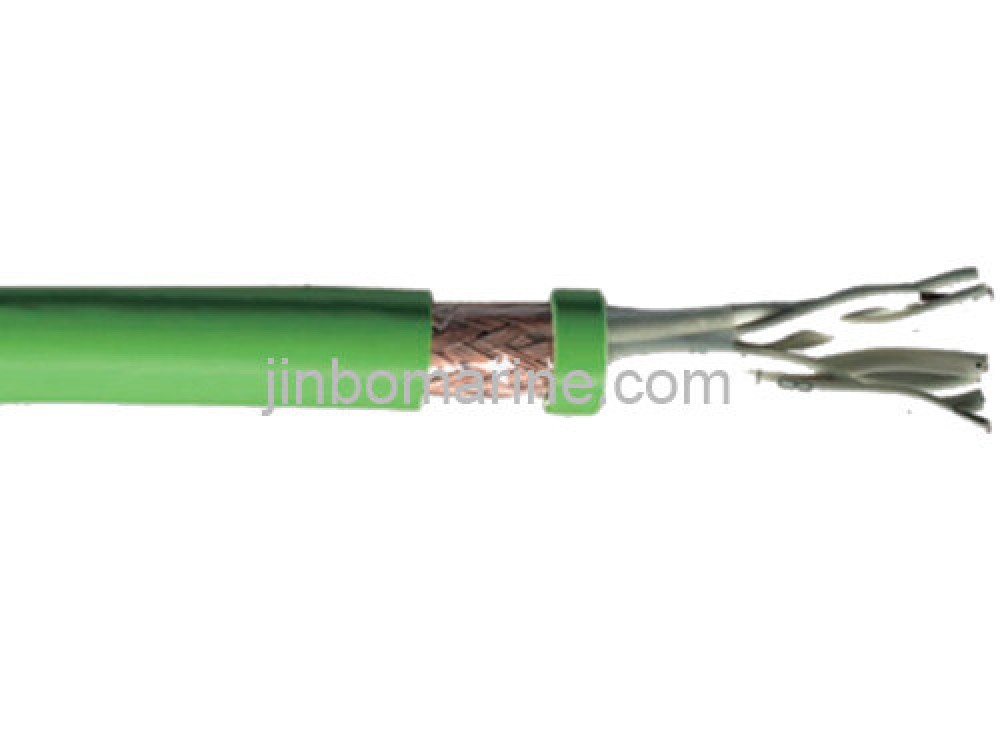

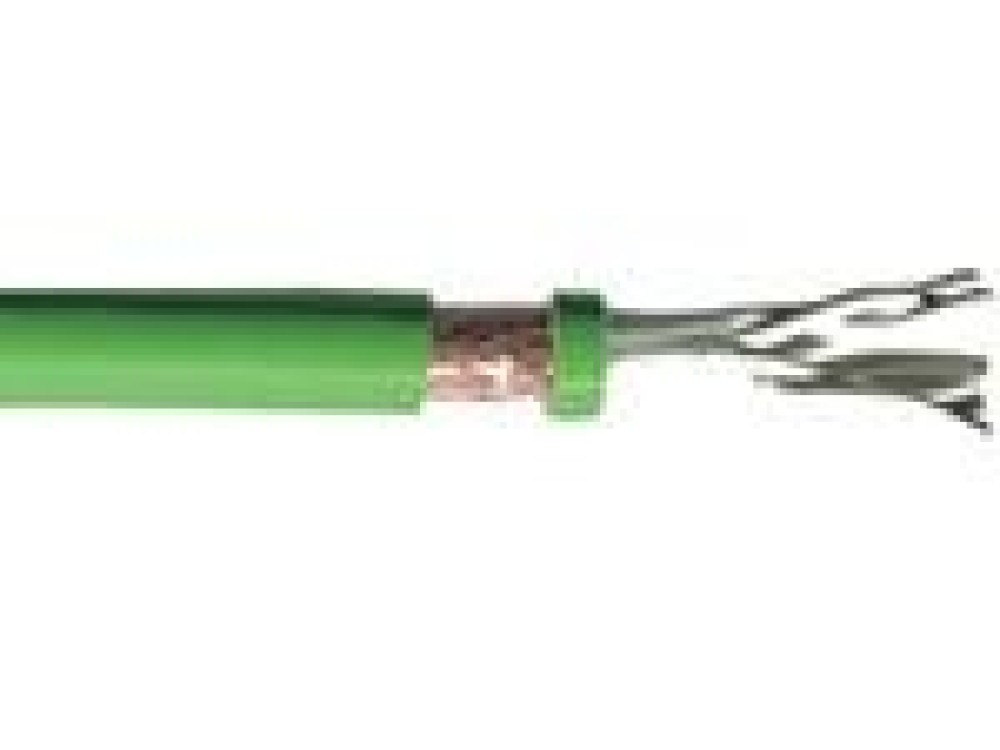

China FMGCG Marine Telecommunication cable 250V:

We supply all kinds of DIN Standards Marine Cable, DIN89158, DIN89159, DIN89160 Standards; Quality control and fast delivery are always concern, your satisfaction is our goal.

FMGCG Marine telephone cable has the feature of halogen-free, low-smoke and flame retardant.

Technical Specification:

Cable Construction

Conductor: Tinned Copper Wire

Insulation: EPR insulation (Cross Linked Ethylene Propylene Rubber)

Laying up: Pair stranding(2 pair cable)

Armoring: Separator tape, Tinned Copper Braided

Outer Sheath: Polyolefin, Sheath Color, green.


Construction : DIN 89159, IEC 60092/375

Material : IEC 60092 /350-351-359

Flame Retardant : IEC 60332 /1, IEC 60332 / 3 Cat A

Working Temperature : -40°C / + 90°C

Min. Bending Radius (FIXED) : 8 x (Overall Diameter)

Rated Voltage : 60/250 kV

Test Voltage : 1,5 kV

Cores & Size

Cores: 1, 2,4,7,10,14,19,24

Size (sqmm): 0.50mm 0.75


Used for fixed installation in telecommunication, radio, control and data processing on ship and offshore units and open deck.
