Four-blade large disk ratio propeller
- Category:Marine Propeller
- Material:Cu1, Cu2, Cu3, Cu4, etc.
- Certificate:ABS , BV, DNV , LR , GL , CCS, RINA , mill certificate etc.
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details

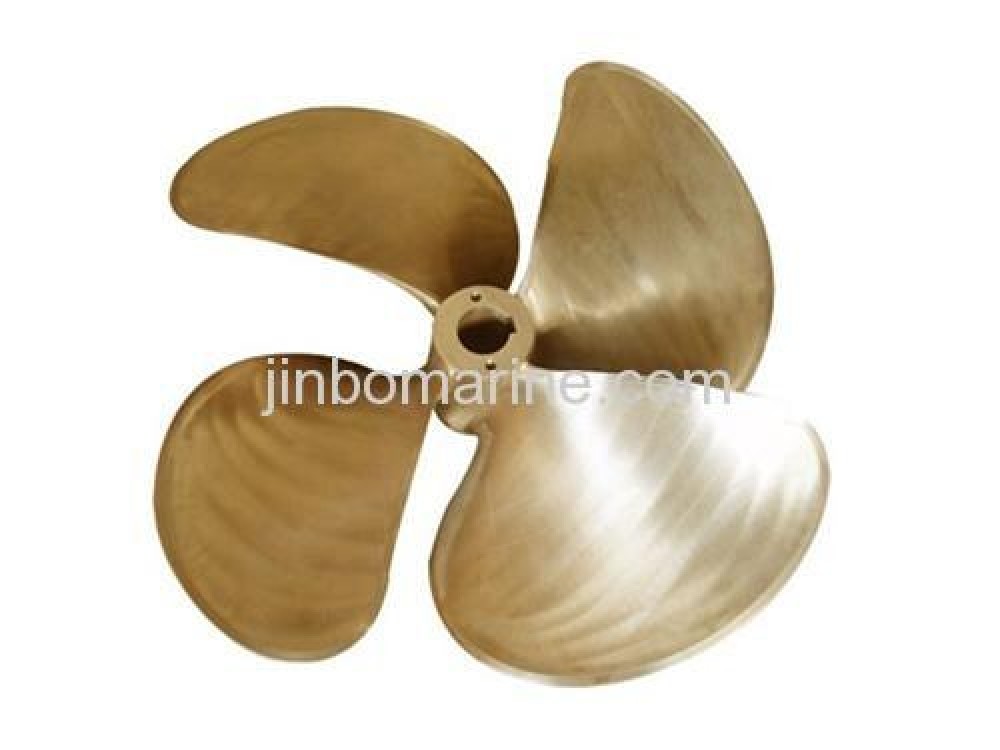

China Four-blade large disk ratio propeller:
Our Four-blade large disk ratio propeller is with big thrust, and various designs.
The four Blade Marine Fixed Pitch Bronze Propeller is widely used for small boats and different vessels, such as container vessel, tankers, bulk carriers, tug, dry cargo vessels, etc.. The type of the propeller should be designed according to the sailing water quality and the design of the ships.
Marine Propeller, Ship Propeller, Bronze Propeller
|
Material List for Propeller |
|
|
International Mark |
National Mark |
|
Cu1 (Manganeses Bronze) |
ZCUZn40Mn3Fe1 |
|
Cu2 (Mn-Fe Brone) |
ZCUZn21Al5Fe2Mn2 |
|
Cu3 (Ni-Al Bronze) |
ZCUA9Fe4Ni4Mn2 |
|
Cu4 (Mn-Al Bronze) |
ZCUAl8Mn12Fe3Ni2 |
|
Propeller diameter: |
700mmto11000mm |
|
Weight: |
55kgto 120ton |
|
Available Certificate: |
CCS, ABS, BV, DNV, NKK, KR, LR, GL, RINA, IRS, etc. |
|
Rotate direction: |
Clockwise or anti-clockwise |
