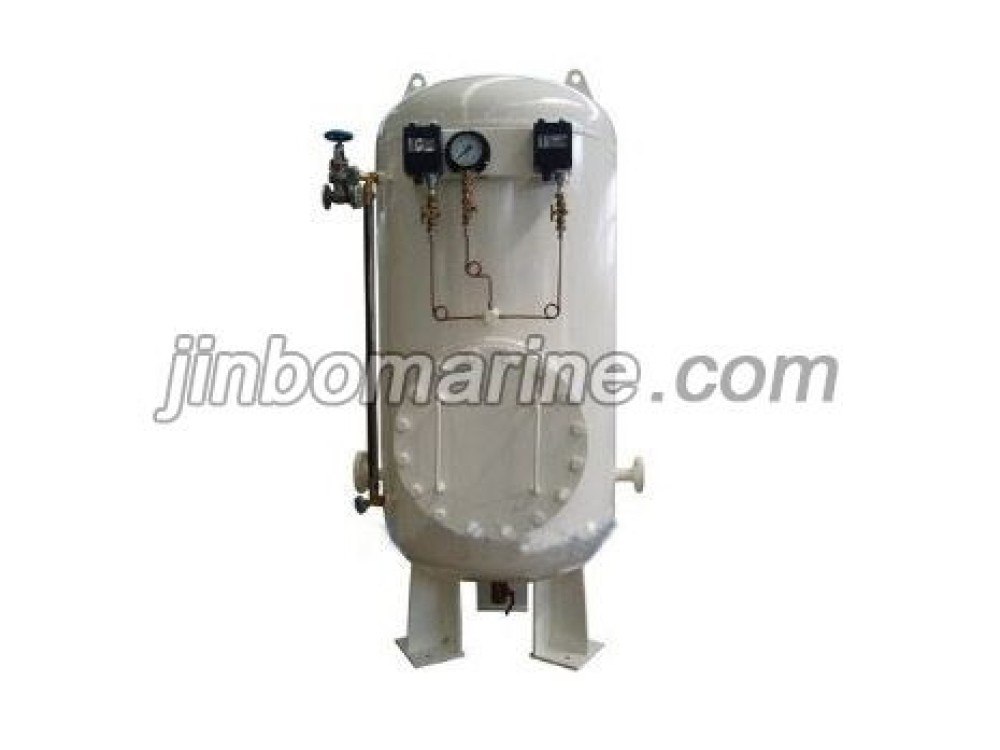

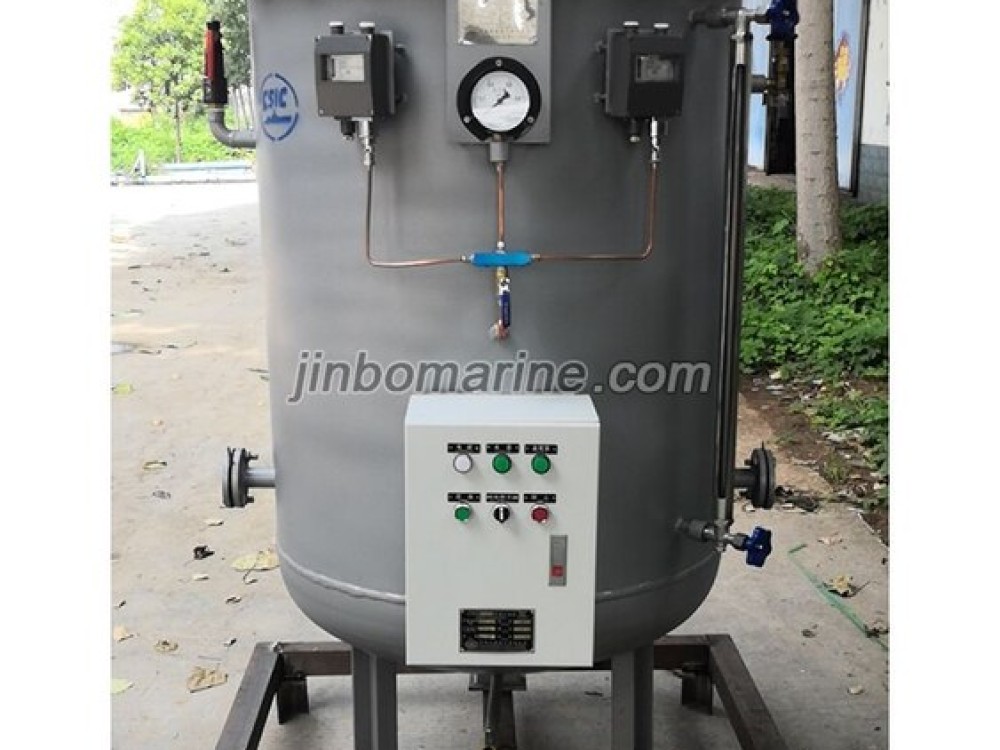

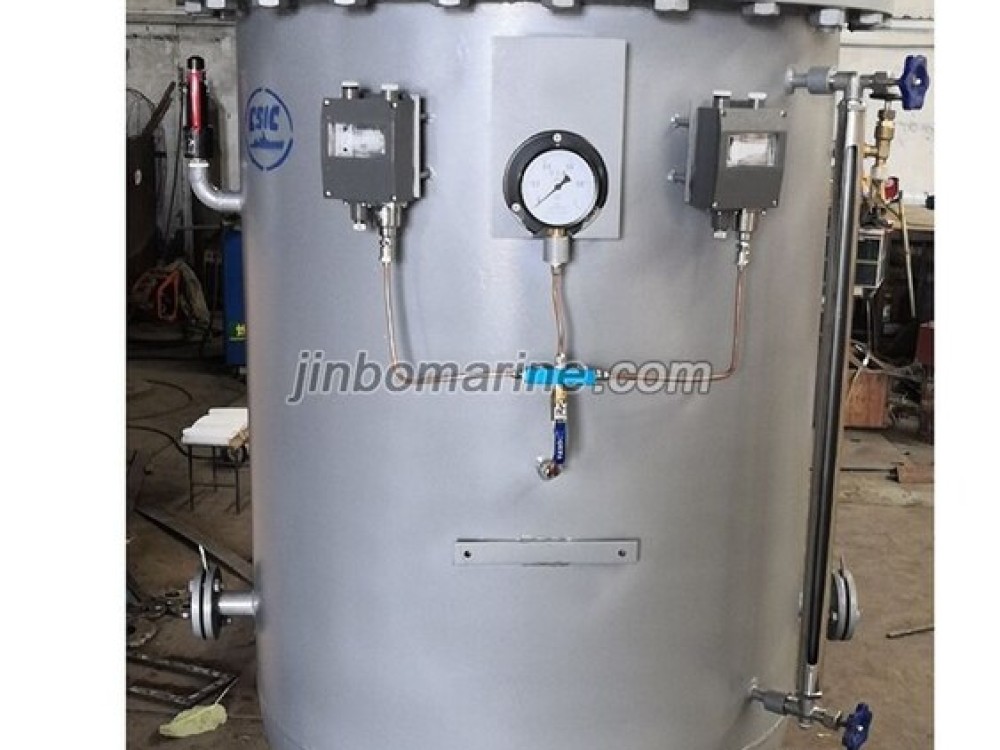

Fresh Water Hydrophore Tank
- Category:Pressure Water Tank
- Certificate:CCS,GL,BV etc.
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
Product Description:
The hydrophore tank can be used for oil platform, supplying fresh water for living and cleaning. Sea water also.
For oil platform, the pumps and electric control panel of the hydrophore tank must be anti-explosion type. The anti-explosion grade and protection grade are customized as your require.
Our oil platform have been widely used for China Sinopec and Sinopec company. Also the navy vessels.
Besides, the hydrophore tank materials can be carbon steel, also stainless steel and bronze.
The regular models as below showing:
|
Model |
ZYG- |
|||||||
|
|
0.12 |
0.2 |
0.3 |
0.5 |
1.0 |
1.5 |
2.0 |
|
|
Volume（m3） |
0.12 |
0.2 |
0.3 |
0.5 |
1.0 |
1.5 |
2.0 |
|
|
Working pressure(MPa) |
0.4 |
|||||||
|
Design pressure （MPa） |
0.44 |
|||||||
|
Test pressure （MPa） |
0.66 |
|||||||
|
Take-off pressure of safety valve（MPa） |
0.42 |
|||||||
|
Working temperature(℃) |
0~45 |
|||||||
|
Design temperature(℃) |
50 |
|||||||
|
Water pump |
Model |
1.5CWX-1.5/1.5A |
1.5CWX-2/2A |
1.5CWX-3/3A |
||||
|
Flow rate（m3/h） |
3 |
6.5 |
10 |
|||||
|
Pumping head (m) |
40 |
40 |
40 |
|||||
|
Power(kW) |
2.2 |
3 |
4 |
|||||
