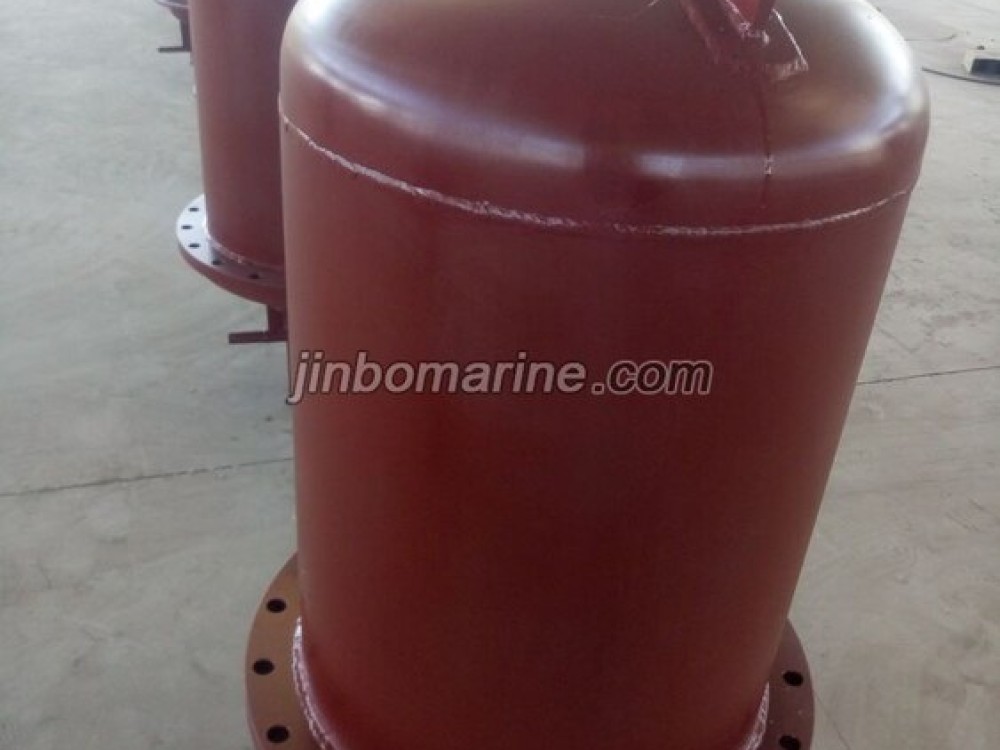

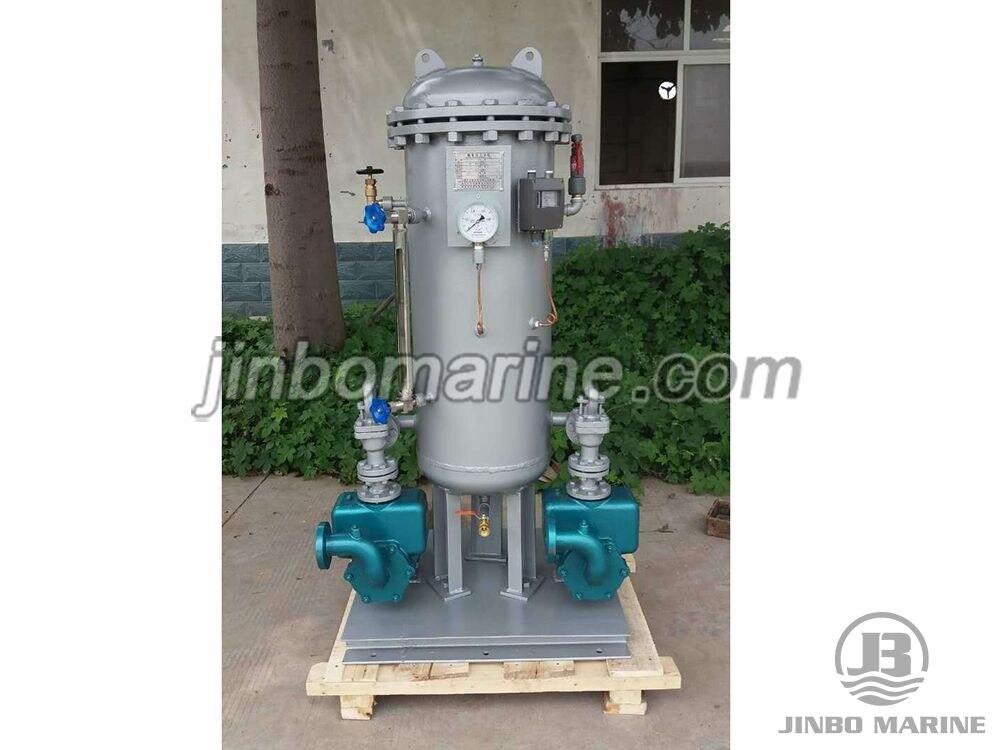

Fresh Water Hydrophore Unit
- Category:Pressure Water Tank
- Certificate:CCS,GL,BV etc.
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
Product Description:
This pressure water tank is appropriate for the water supply system (fresh water, seawater) on board.
Working Principle:
The device uses the pressure water pumped by water pump in tank to compress air so as to keep the water in tank under a proper pressure for the use on board.
Main Technical Parameters:
|
Model |
ZYG- |
||||||||
|
0.12 |
0.2 |
0.3 |
0.5 |
1.0 |
1.5 |
2.0 |
|||
|
Volume（m3） |
0.12 |
0.2 |
0.3 |
0.5 |
1.0 |
1.5 |
2.0 |
||
|
Working pressure（MPa） |
0.4 |
||||||||
|
Design pressure（MPa） |
0.44 |
||||||||
|
Test pressure（MPa） |
0.66 |
||||||||
|
Take-off pressure of safety valve（MPa） |
0.42 |
||||||||
|
Working temperature |
0~45℃ |
||||||||
|
Design temperature |
50℃ |
||||||||
|
Water pump |
Model |
1.5CWX-1.5/1.5A |
1.5CWX-2/2A |
1.5CWX-3/3A |
|||||
|
Flow rate（m3/h） |
3 |
6.5 |
10 |
||||||
|
Pumping head (m) |
40 |
40 |
40 |
||||||
|
Power (kW) |
2.2 |
3 |
4 |
||||||

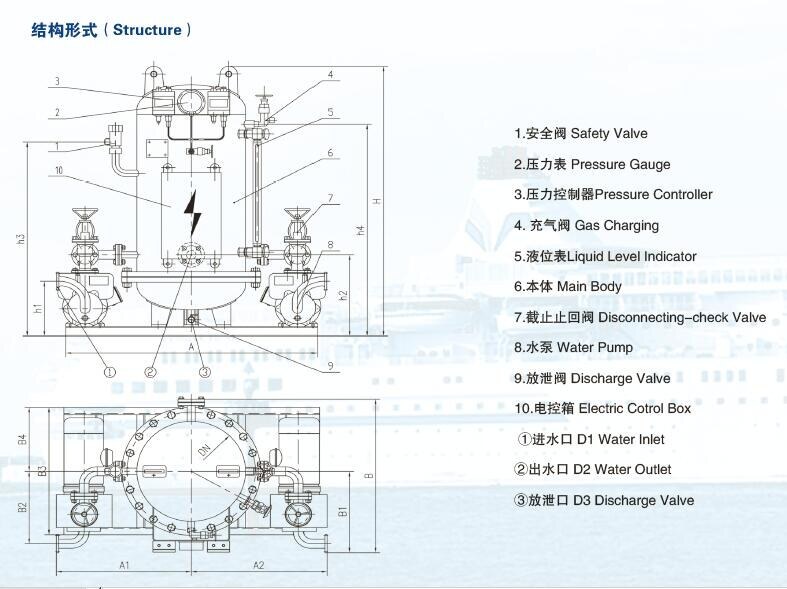

Structure:
