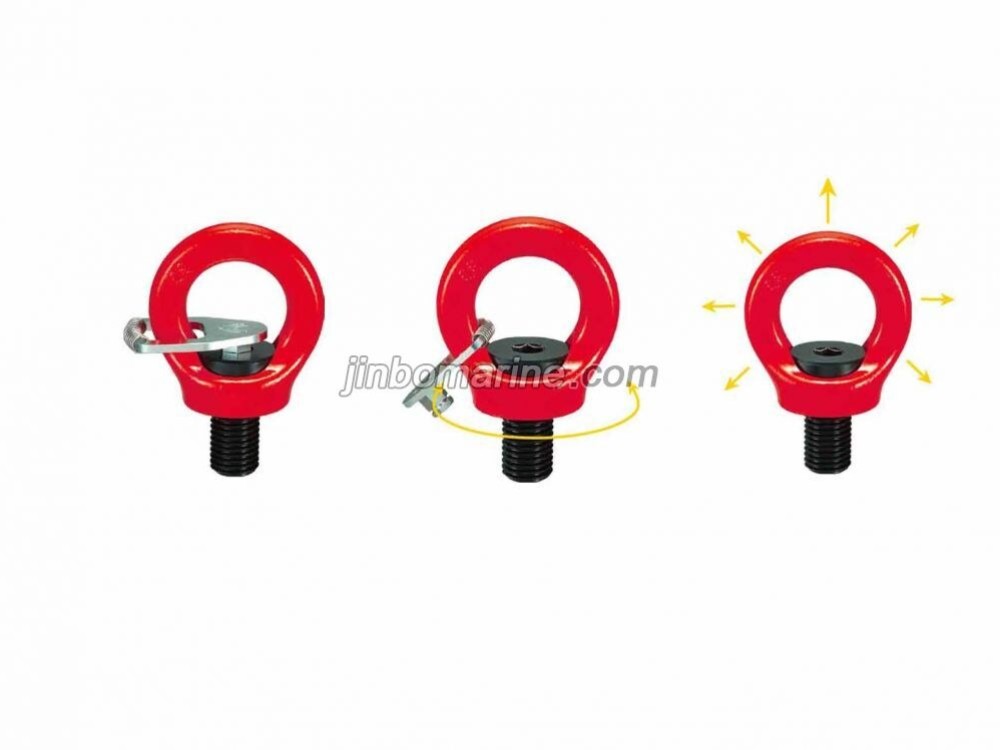

G80 Eye Swivel Hoist Ring
- Category:Chain Sling
- Material:Alloy Steel Forging
- Standards:EN1677-1 CROSBY ISO9001-2008 CCS
- Packing Details:Standard Export Packaging
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

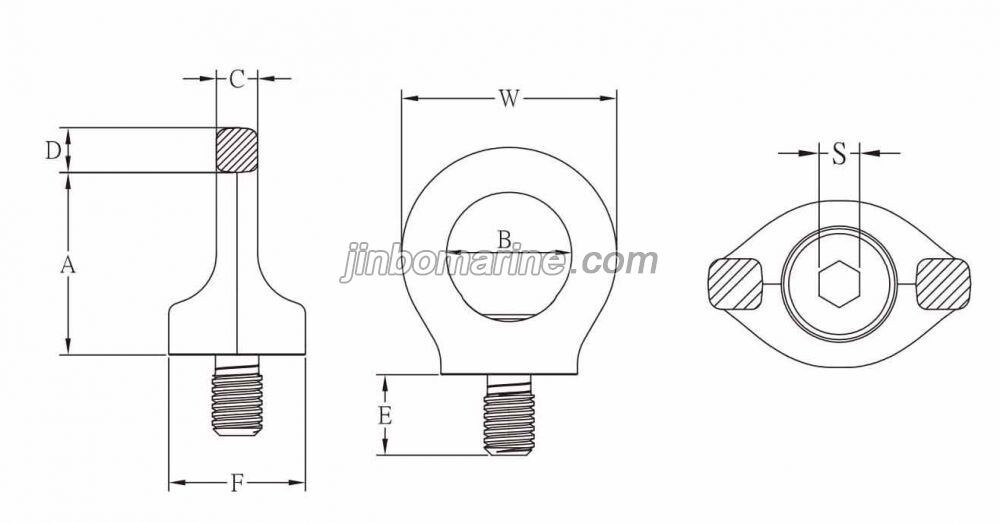

China G80 Eye Swivel Hoist Ring:
| Item Model |
Load WLL(T) |
Screw Thread (M) |
Unit（mm） |
Net Weight （kg） |
|||||||
| A | B | C | D | E | F | S | W | ||||
| YD084-08 | 0.3 | 8 | 34 | 25 | 8.5 | 11 | 12 | 28 | 6 | 47 | 0.2 |
| YD084-10 | 0.4 | 10 | 34 | 25 | 8.5 | 11 | 15 | 28 | 6 | 47 | 0.2 |
| YD084-12 | 0.75 | 12 | 42 | 30 | 10 | 13 | 18 | 34 | 8 | 56 | 0.3 |
| YD084-14 | 0.75 | 14 | 42 | 30 | 10 | 13 | 18 | 34 | 8 | 56 | 0.3 |
| YD084-16 | 1.5 | 16 | 49 | 35 | 14 | 15 | 24 | 40 | 10 | 65 | 0.4 |
| YD084-18 | 1.5 | 18 | 49 | 35 | 14 | 15 | 24 | 40 | 10 | 65 | 0.4 |
| YD084-20 | 2.3 | 20 | 57 | 40 | 16 | 17 | 30 | 50 | 12 | 75 | 0.6 |
| YD084-22 | 2.3 | 22 | 57 | 40 | 16 | 17 | 30 | 50 | 12 | 75 | 0.6 |
| YD084-24 | 3.2 | 24 | 70 | 48 | 19 | 21 | 36 | 62 | 14 | 90 | 1 |
| YD084-27 | 3.2 | 27 | 70 | 48 | 19 | 21 | 36 | 62 | 14 | 90 | 1 |
| YD084-30 | 4.5 | 30 | 86 | 60 | 24 | 26 | 45 | 75 | 17 | 112 | 1.8 |
| YD084-33 | 4.5 | 33 | 86 | 60 | 24 | 26 | 45 | 75 | 17 | 112 | 1.9 |
| YD084-36 | 7 | 36 | 103 | 72 | 29 | 32 | 54 | 90 | 22 | 135 | 3 |
| YD084-42 | 9 | 42 | 120 | 82 | 34 | 38 | 63 | 105 | 24 | 158 | 4.7 |
| YD084-48 | 12 | 48 | 137 | 94 | 38 | 43 | 72 | 120 | 27 | 180 | 7.5 |
