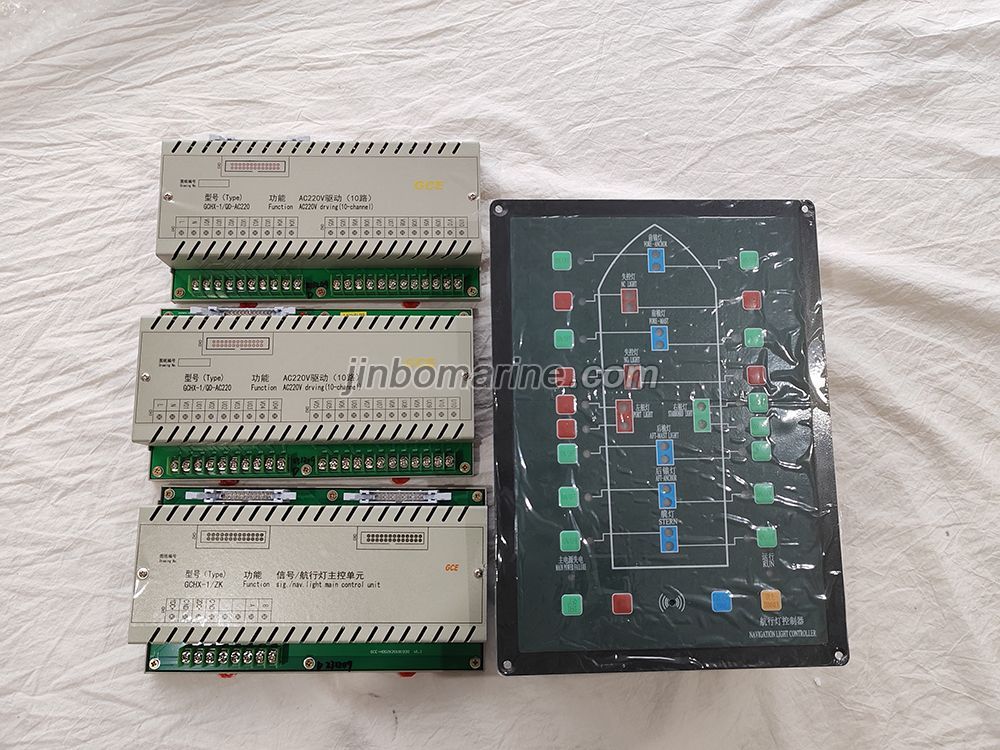

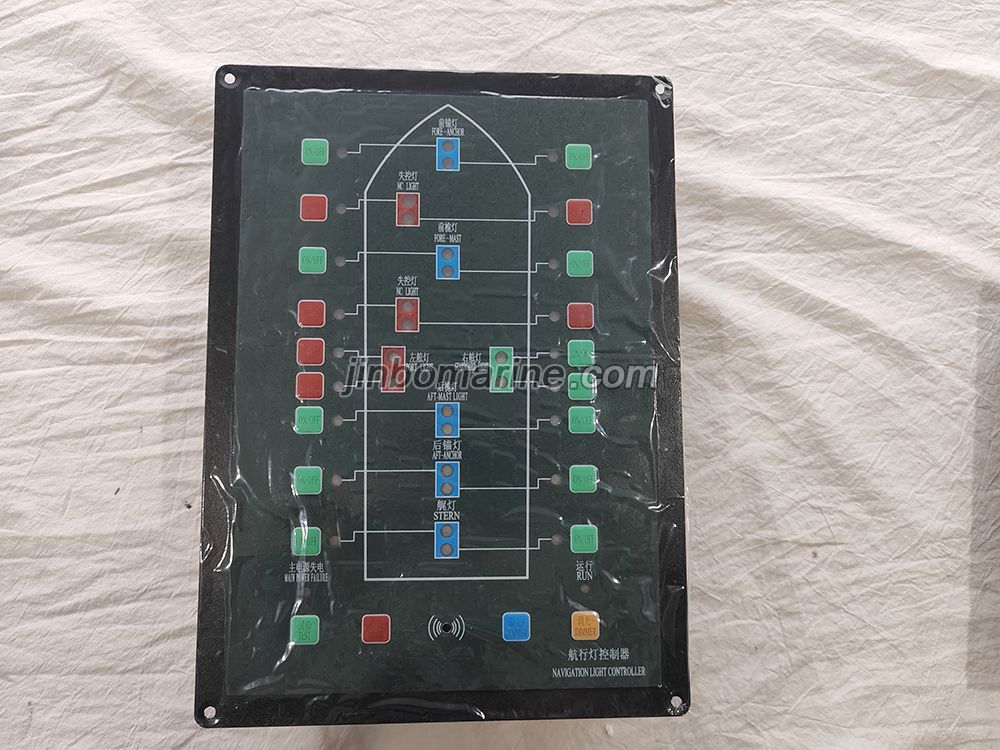

GCHX-1 Navigation Light Controller

1. Navigation light signal light flash output control

2. External bulb broken wire alarm

3. Main power emergency power supply detection and alarm

4. External Mohs light control button

1. Power supply: DC18V-DC36V, AC210V-AC250V

2. Temperature:0° C~ +55℃;

3. External navigation light signal light, the maximum number:36 roads;

4. Maximum number of external flash: 3 way

5. Control bulb type: incandescent, LED.

6. Provide data for external devices as a standard RS485

ModBus_ RTU Slave

7. Provide standard 01 83NMEA VDR data for the outside
