HBN Series 15PPM Bilge Separator Oily Water Separator

Category:Marine Oil Water Seperator
Material:SS316,SS304, Steel
Standards:IMO MEPC (107)49
Certificate:CCS
Supply Ability:100 sets/month
Fob Price:Get Latest Price Now
Place of Origin:China

Request a Quote Not what you need, please send your RFQs via Email.

Details

Description:

With more and more strict requirements for environmental protection, our company has developed hBN series of oil-water separators for fishing boats suitable for ocean, river and lake.

The cabin is small in size, compact in structure, easy to operate, long in service life, and low in spare parts maintenance cost. It is exported to Southeast Asia, Indonesia, Malaysia, Vietnam, Myanmar, Singapore, New Zealand, where a large number of fishing boats use our products, which can provide CCS certificates and meet the standard of IMO mepc.107 (49).

This product is economical, welcome shipowner shipyard friend, ship management company purchase replacement.

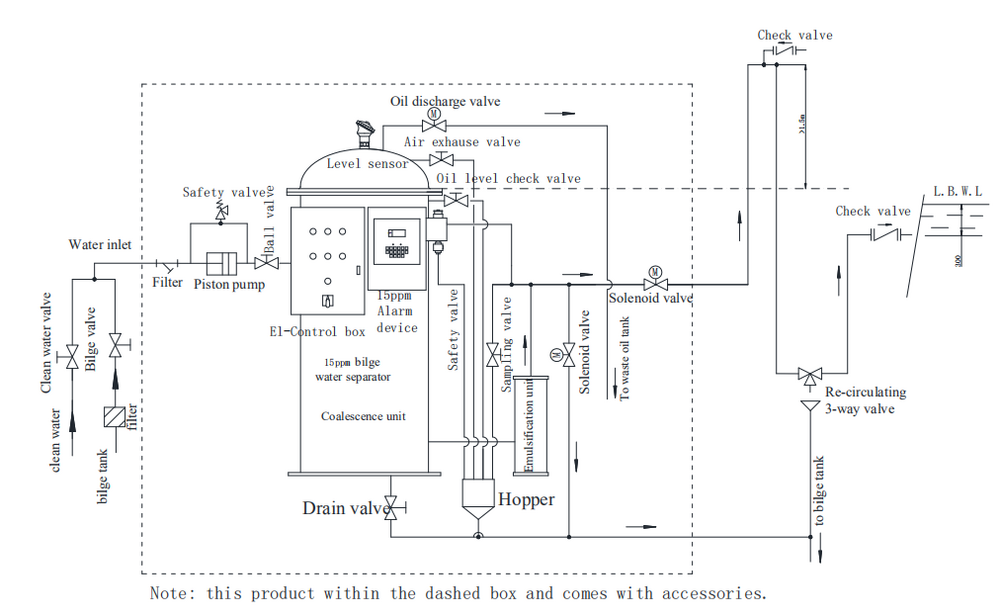

System schematic diagram:

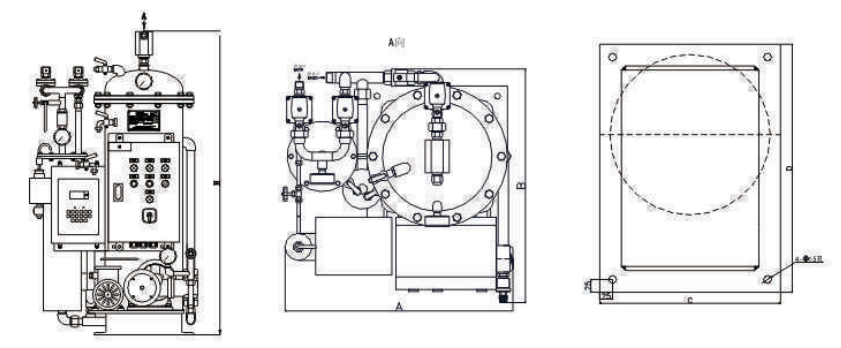

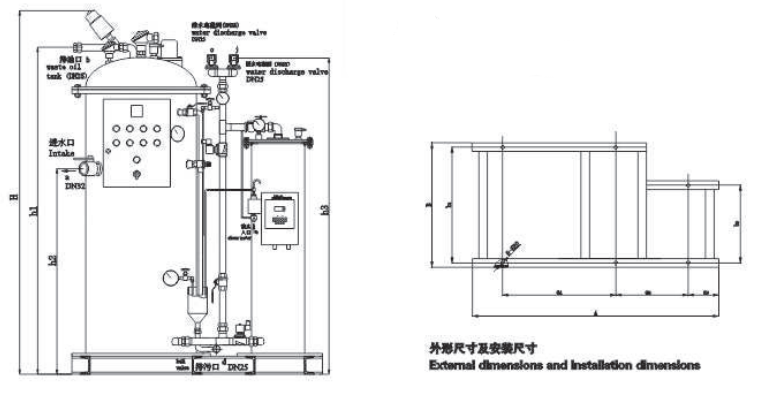

Technical data:

Model	Capacity m3/h	Internal Pressure MPa		Piston Pump	Size					Weight Kg
Model	Capacity m3/h	Normal	Design	Piston Pump	H	A	B	C	D	Weight Kg
HBN-0.1	0.1	0.07	0.3	DZB-100 0.3MPa 0.1m3/h	1070	590	580	350	480	120
HBN-0.25	0.25	0.07	0.3	DZB-250 0.3MPa 0.25m3/h	1236	709	707	484	695	155
HBN-0.5	0.5	0.07	0.3	DZB-500 0.3MPa 0.5m3/h	1400	1010	910	950	810	185
HBN-1.0	1.0	0.07	0.3	DZB-1000 0.3MPa 1.0m3/h	-	-	-	-	-	330
HBN-2.0	2.0	0.12	0.3	DZB-2000 0.3MPa 2.0m3/h	-	-	-	-	-	417
