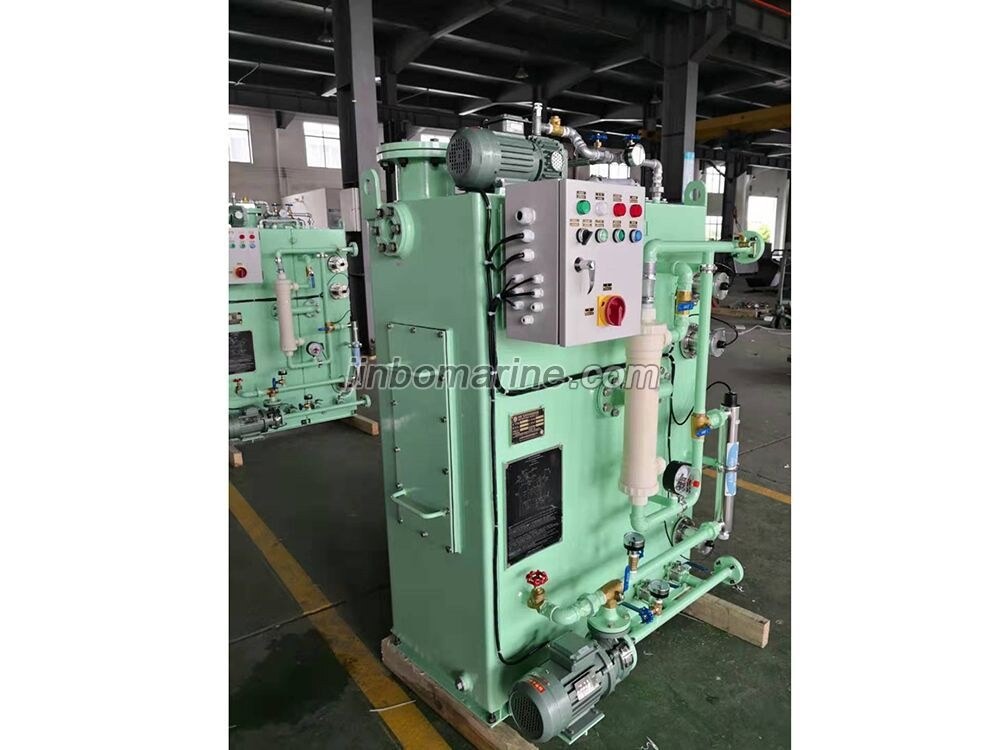

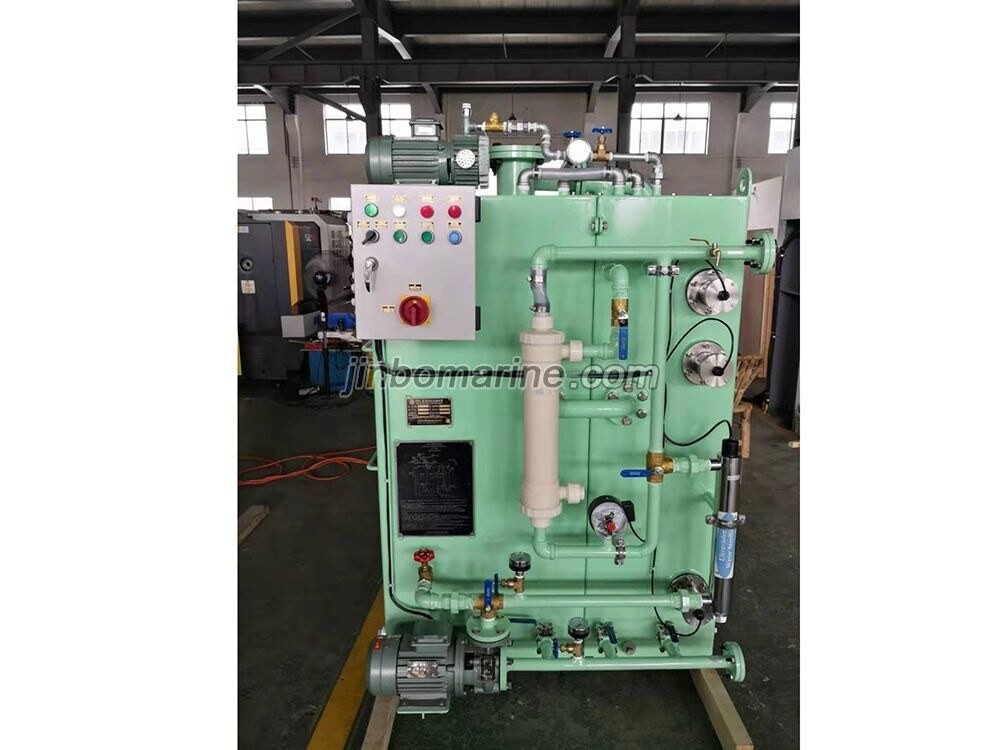

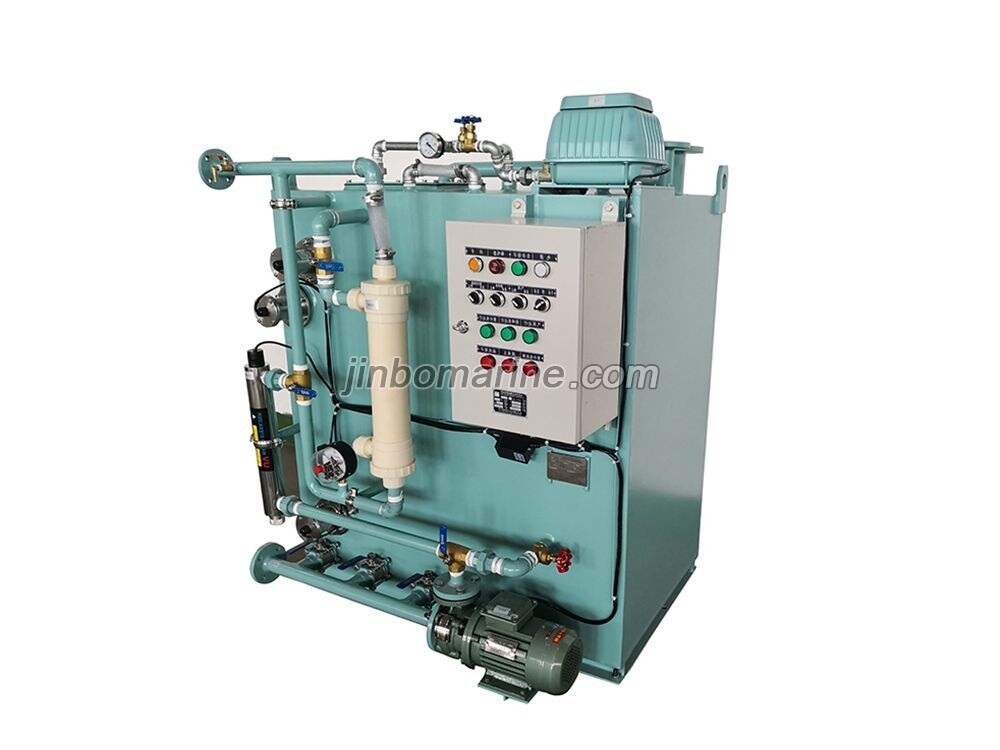

HBNA Series Marine Sewage Treatment Plant

Request a Quote Not what you need, please send your RFQs via Email.

Details

Effluent standard of HBNA Series Sewage Treatment Plants after treating:

Thermmtolerant coliform count not exceed 100 coliforms/ 100ml

Total Suspended Solids(TSS) NOT exceed 25mg/l

Chemical Oxygen Demand(COD) Not exceed 125mg/l

PH Between 6 and 8.5

Residual Chlorine Not exceed 0.5 mg/l

Specification:

HBNA series of domestic sewage treatment equipment, the use if oxidative degradation, membrane microfiltration and ohysical disinfection of the combination of methods to deal with the marine toilets, kitchen, bathroom sewage compared with the same type of product, it has the characteristics of samll volume, light weight, compact structure, no secondary pollution, easy operation and maintenance.

The discharge water treated by this device meets the emission standards of the International Maritime Origanization for anti pollution Convention(MAROL73/78) mpodified by the International Maritime Organization(IMO), Which is in accordance with the requirements stipulated in the resolution of MEPC.227(64), Type approval of CCS, ZY and ZC.

Technical data:

Model Hydraulic Load Organic Load
(kg/d BOD5)
Voltage Certificate Power(kw) Outline Dimension
(mm)
Weight(Dry.kg)

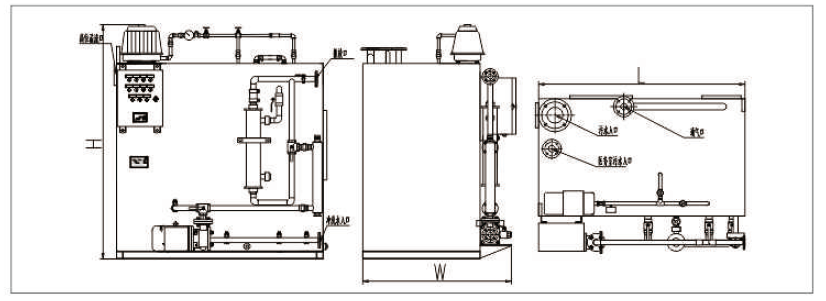

L W H
HBNA-5 350 0.175 AC220V/
AC380V/
AC440V
MEPC.227(64) 1.5 590 620 1400 300
HBNA-10 700 0.35 1.5 820 745 1400 370
HBNA-15 1050 0.525 1.5 930 850 1450 430
HBNA-20 1400 0.7 1.5 1100 915 1450 480
HBNA-30 2100 1.05 1.5 1340 995 1470 560
HBNA-40 2800 1.4 1.5 1510 1115 1470 650
HBNA-50 3500 1.75 2 1590 1215 1570 690
HBNA-60 4200 2.1 2 1740 1290 1570 730
HBNA-70 4900 2.45 2 1750 1260 1770 800
HBNA-80 5600 2.8 3 1900 1415 1770 890
HBNA-90 6300 3.15 3 1900 1465 1920 1010
HBNA-100 7000 3.5 3 2030 1515 1920 1150
