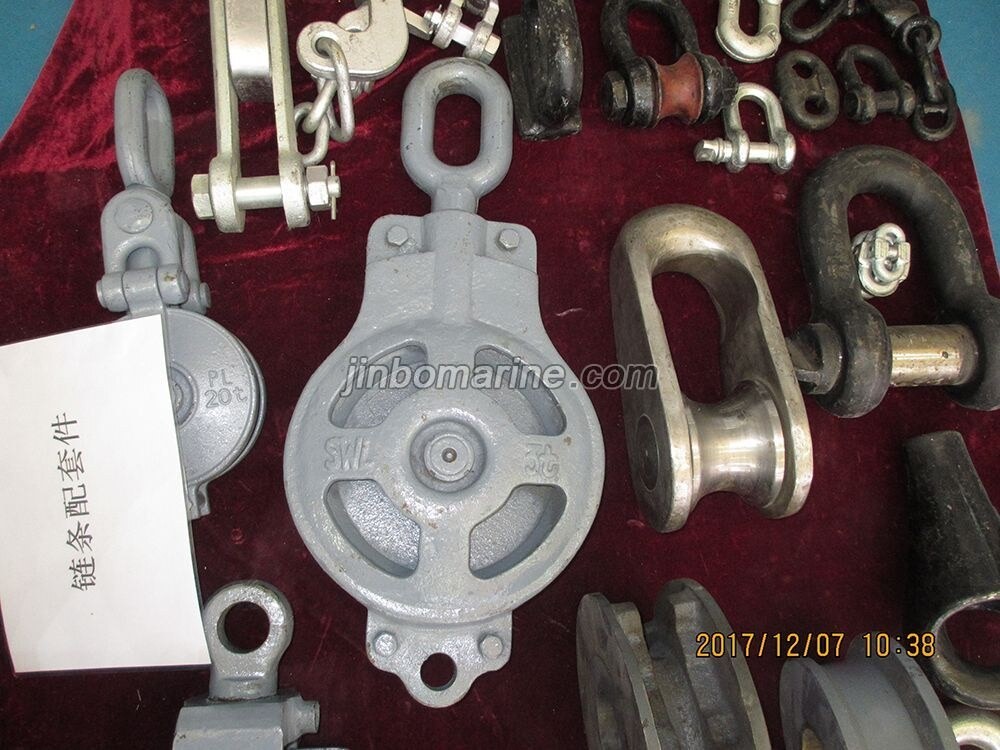

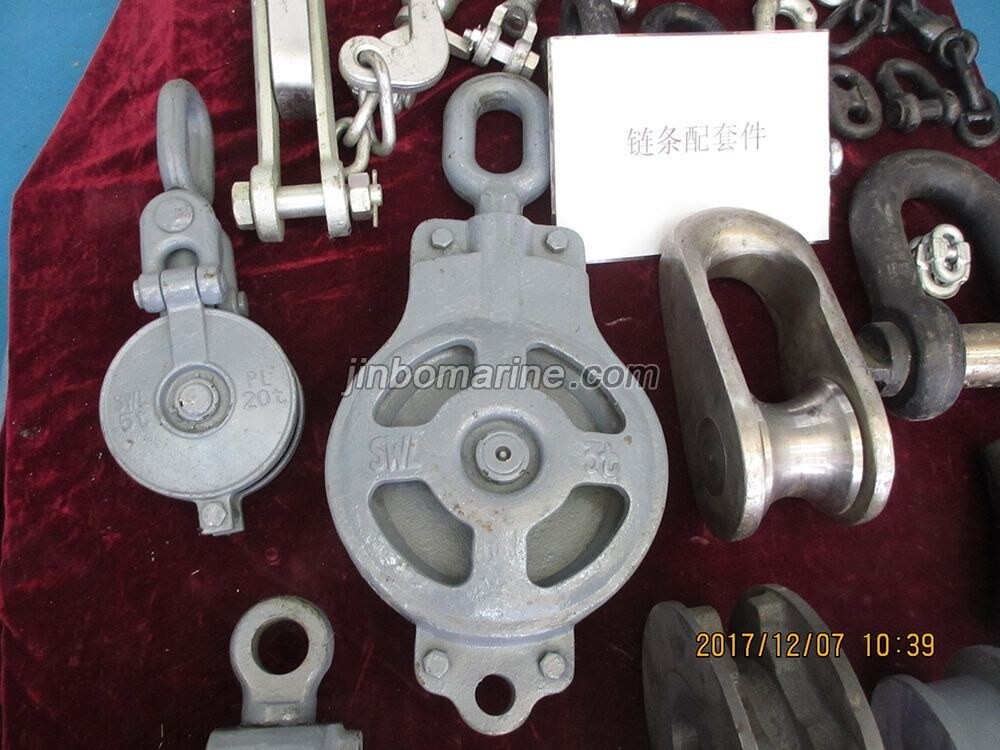

HC Serie Single Sheave Marine Wire Pulley
- Category:JIS Steel Cargo Block
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

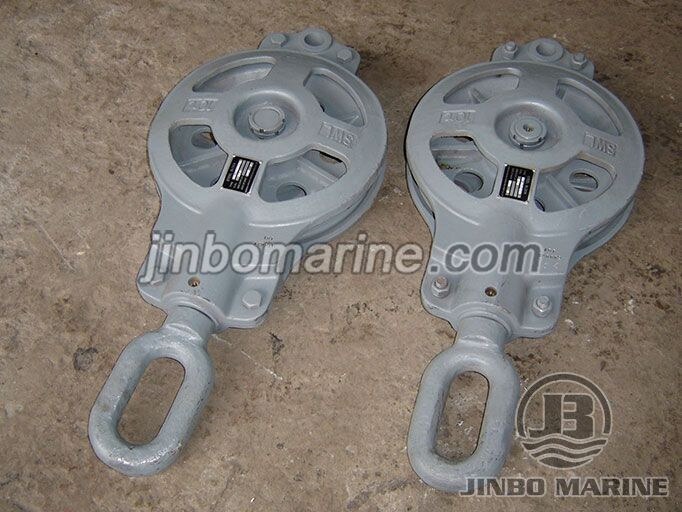

China HC Serie Single Sheave Marine Wire Pulley:
HC Serie Single Sheave Marine Wire Pulley:
| Model Number | Safe Working Load(KN) | Test Load(KN) | For Wire Rope Diameter | A | B | C | |||
| L type | N type | Y Type | Q type | ||||||
| HC5-1(Q、N、Y） | 49 | 98 | 20-22 | 685 | 645 | 645 | 660 | 300 | 140 |
| HC5-1(Q、N、Y） | 49 | 98 | 20-24 | 800 | 740 | 740 | 755 | 355 | 156 |
| HC10-1(Q、N、Y） | 98 | 392 | 24-26 | 950 | 885 | 885 | 900 | 410 | 185 |
| HC16-1(Q、N、Y） | 156.8 | 627.2 | 26-28 | 1050 | 950 | 950 | 975 | 460 | 200 |
| HC20-1(Q、N、Y） | 196 | 784 | 26-28 | 1100 | 1040 | 1040 | 1060 | 460 | 215 |
| HC20-1(Q、N、Y） | 196 | 784 | 34-36 | 1120 | 1110 | 1110 | 1125 | 500 | 270 |
