HDP1100-D Injector Test Bench Pneumatic Hydraulic Pump

Request a Quote Not what you need, please send your RFQs via Email.

Details

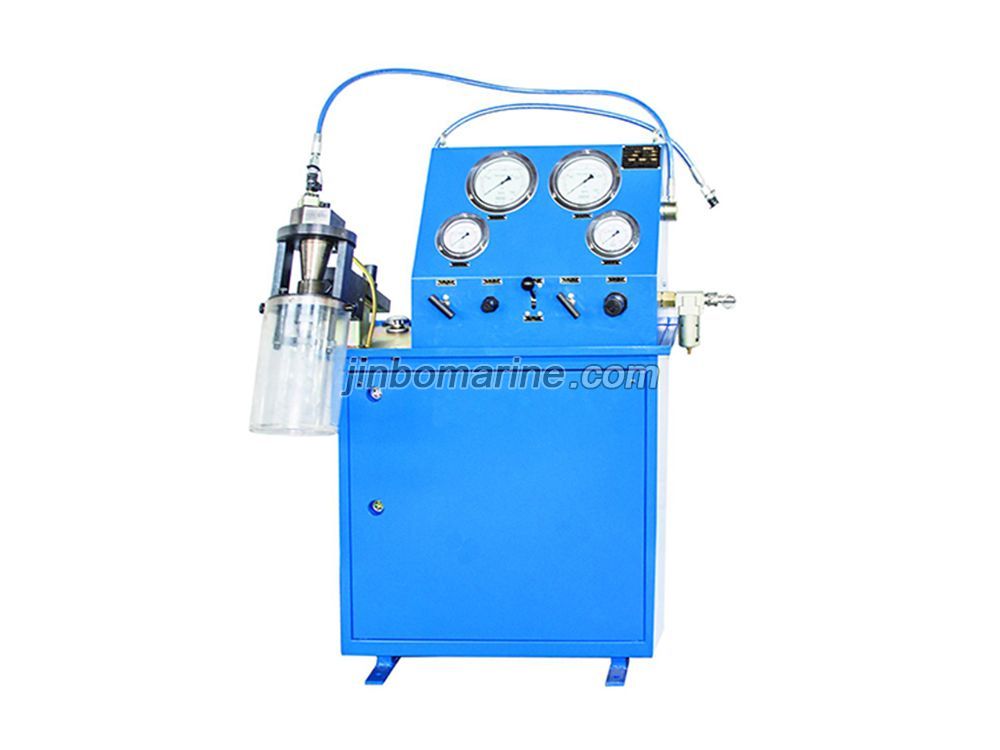

HDP1100-D Electric Injector Test Bench Pneumatic Hydraulic Pump

Function

This manual can help to understand the working principle of the device. All kinds of control instruments and control handles are marked with a number. The number used in this manual is consistent with that of the device. At the same time, the same name is marked on the operation console of the device. Please read the manual carefully before using the device and operate according to the manual.

Main technical data

(1).oil pressure output:max. 70mpa at 0.7mpa air input

(2).Air consumption:823L/min at 0.7mpa of no back pressure

(3).Max.oil flow at zero pressure:6.5L/min at an air input of 0.7mpa.

(4).Pump speed:59cycle/min.at 0.7mpa air input and no back pressure

(5).Tank capacity:32L

(6).Dimensions: 950*900*1650mm.(L*D*H)

(7).Net weight: 212kg
