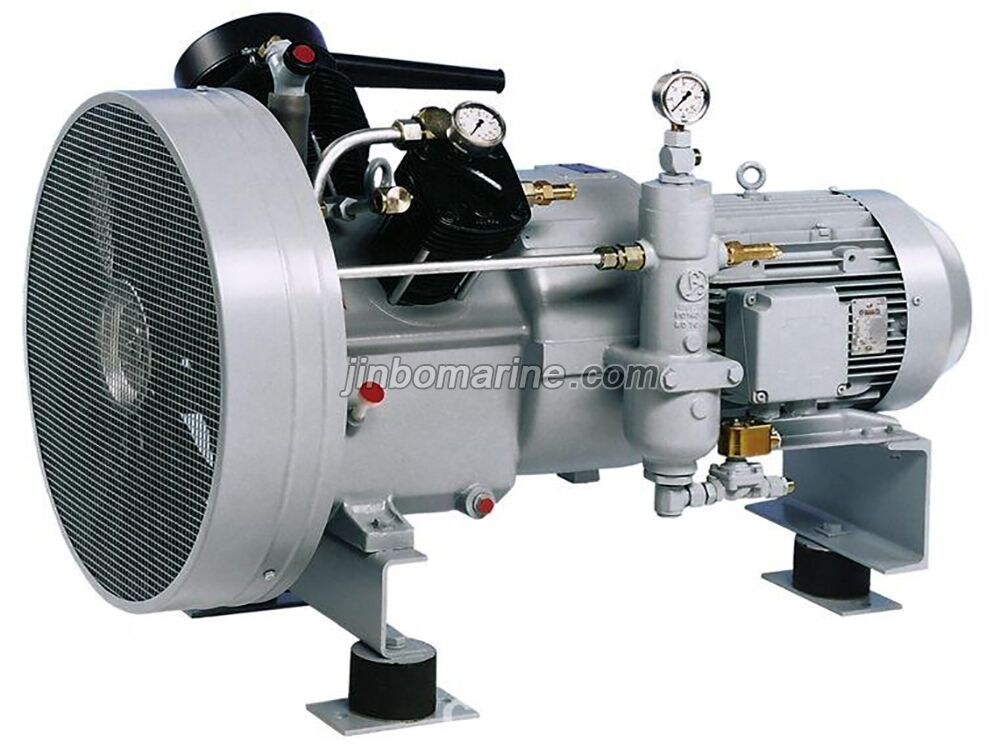

High Performance Medium Pressure Marine Air Compressor
- Category:Other Air Compressor
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China High Performance Medium Pressure Marine Air Compressor:
Start the main, auxiliary engine.
The manipulation of the host of the reversing mechanism.
Control of shafting pneumatic clutch.
Filling pressure tank and hydraulic system pressure oil tank.
Purge parts, pipe, and bottom valve and clean the boiler flue, etc.
WP series Marine air compressor (440V/60HZ)
| Type | Displacement capacity | Specified Pressure | Motor | Transmission mode | Cooling mode | Overrall (L*W*H) | Unit net weight kg | |
| m3/h | MPa | Power kw | Voltage V | |||||
| WP18L | 14.3 | 3 | 5.5 | 440 | direct drive | air cooling | 845×640×564 | 66 |
| WP25L | 20 | 3 | 7.5 | 440 | 870×640×632 | 67 | ||
| WP32L | 25 | 3 | 7.5 | 440 | 884×640×632 | 67 | ||
| WP250L | 180 | 3 | 55 | 440 | 1617×930×1085 | 924 | ||
| WP60 | 68 | 3 | 18.5 | 440 | water cooling | 1282×671×1051 | 650 | |
| WP110 | 110 | 3 | 30 | 440 | 1425×725×1458 | 970 | ||
| WP135 | 142 | 3 | 30 | 440 | 1465×725×1458 | 1000 | ||
| WP160 | 170 | 3 | 37 | 440 | 1465×840×1458 | 1100 | ||
| WP185 | 195 | 3 | 45 | 440 | 1465×840×1458 | 1100 | ||
| WP220 | 230 | 3 | 55 | 440 | 1975×910×1639 | 1400 | ||
| WP270 | 300 | 3 | 63 | 440 | 1975×910×1638 | 1400 | ||
| WP320 | 355 | 3 | 75 | 440 | 2120×910×1598 | 1400 | ||
| WP370 | 415 | 3 | 90 | 440 | 2120×910×1598 | 1400 | ||
WP series Marine air compressor (380V/50HZ)
| Type | Displacement capacity | Specified Pressure | Motor | Transmission mode | Cooling mode | Overrall (L*W*H) | Unit net weight kg | |
| m3/h | MPa | Power kw | Voltage V | |||||
| WP18L | 18 | 3 | 5.5 | 380 | direct drive | Air cooling | 845×640×564 | 66 |
| WP25L | 24.5 | 3 | 7.5 | 380 | 870×640×632 | 67 | ||
| WP32L | 31.5 | 3 | 7.5 | 380 | 884×640×632 | 67 | ||
| WP250L | 225 | 3 | 55 | 380 | 1617×930×1085 | 924 | ||
| WP60 | 84 | 3 | 18.5 | 380 | water-cooling | 1322×671×1051 | 650 | |
| WP80L | 80 | 3 | 15 | 380 | Air cooling | 1310×780×830 | 330 | |
| WP100L | 99 | 3 | 20 | 380 | 1362×880×1007 | 450 | ||
| WP110L-A | 380 | water-cooling | ||||||
| WP110 | 91 | 3 | 22 | 380 | 1425×845×1370 | 970 | ||
| WP135 | 118 | 3 | 30 | 380 | 1465×840×1370 | 1000 | ||
| WP160 | 141 | 3 | 30 | 380 | 1520×920×1420 | 1010 | ||
| WP185 | 162 | 3 | 37 | 380 | 1520×920×1420 | 1000 | ||
| WP220 | 191 | 3 | 45 | 380 | 1975×951×1639 | 1400 | ||
| WP270 | 248 | 3 | 55 | 380 | 1975×850×1568 | 1400 | ||
| WP320 | 294 | 3 | 63 | 380 | 1975×951×1568 | 1400 | ||
| WP370 | 344 | 3 | 75 | 380 | 2120×985×1598 | 1400 | ||
| 1-0.433/60 | 26 | 6 | 11 | 380 | Belt drive | 1170×700×1220 | 670 | |
| CZ-60/30 | 60 | 3 | 18.5 | 380 | direct drive | 1500×535×1200 | 900 | |
