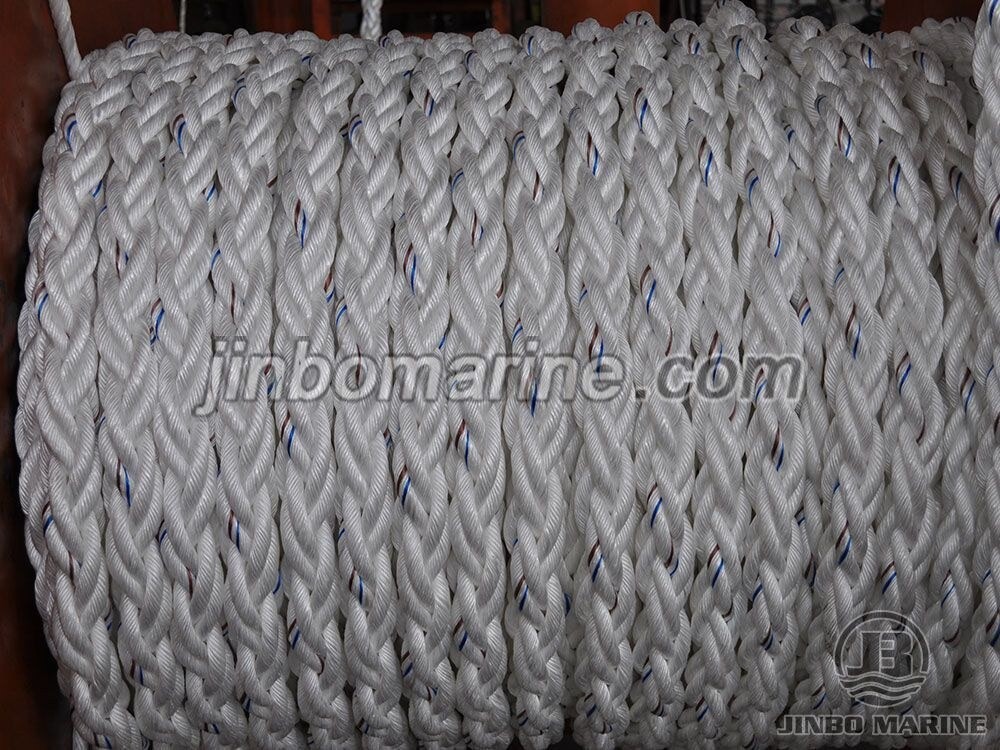

High Tenacity Polypropylene Rope
- Category:Mooring Rope
- Material:polypropylene
- Certificate:BV,CCS,ABS,DNV,LR,NK,KR,RINA,mill certificate etc.
- Packing Details:Woven bag packaging or pallet packaging.
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China High Tenacity Polypropylene Rope:
High Tenacity Polypropylene Rope is mainly used in marine,fishing and offshore applications.
The rope is easy to operate, won't rotate. It is produce by 8 strand or 12 strand wharve,every two pairs interlace weave pattern.
Construction: 8 strand or 12 strand.
Spec density: 0.92 floating.
Melting point: 165℃.
Abrasion resistance: medium.
U.V. resistance: medium.
Temperature resistance: 70℃ maximum.
Chemical resistance: Good. Slight reaction to solvents and strong oxidizing agents.
Parameter Table:
| Diameter | Circumference | Weight | Breaking Strength | |||
| mm | Inch | Inch | KGS/100 meter | LBS/100 feet | kg | KN |
| 24 | 15/16“ | 3“ | 27 | 18 | 9600 | 94 |
| 28 | 1 1/8“ | 3 1/2“ | 37 | 25 | 12800 | 126 |
| 32 | 1 1/4“ | 4“ | 49 | 33 | 16240 | 159 |
| 36 | 1 7/16“ | 4 1/2“ | 61 | 41 | 20240 | 199 |
| 40 | 1 9/16“ | 5“ | 75 | 51 | 24960 | 245 |
| 44 | 1 3/4“ | 5 1/2“ | 93 | 62 | 30240 | 297 |
| 45 | 1 25/32“ | 5 5/8“ | 97 | 65 | 31520 | 309 |
| 48 | 1 7/8“ | 6“ | 109 | 73 | 35040 | 344 |
| 50 | 2“ | 6 1/4“ | 118 | 80 | 38080 | 374 |
| 52 | 2 1/16“ | 6 1/2“ | 127 | 86 | 40640 | 399 |
| 55 | 2 5/32“ | 6 7/8“ | 143 | 96 | 45600 | 447 |
| 56 | 2 1/4“ | 7“ | 148 | 100 | 46800 | 459 |
| 60 | 2 3/8“ | 7 1/2“ | 170 | 114 | 53280 | 523 |
| 64 | 2 1/2“ | 8“ | 193 | 130 | 59840 | 587 |
| 65 | 2 9/16“ | 8 1/16“ | 200 | 134 | 61600 | 604 |
| 68 | 2 11/16“ | 8 1/2“ | 219 | 147 | 67040 | 658 |
| 70 | 2 3/4“ | 9“ | 231 | 155 | 70960 | 696 |
| 72 | 2 7/8“ | 9“ | 245 | 165 | 75200 | 738 |
| 75 | 3“ | 9 1/4“ | 266 | 178 | 81440 | 799 |
| 80 | 3 5/32“ | 10“ | 303 | 204 | 92800 | 910 |
| 85 | 3 3/8“ | 10 1/2“ | 342 | 230 | 104800 | 1028 |
| 88 | 3 7/16“ | 11“ | 367 | 246 | 110400 | 1083 |
| 90 | 3 9/16“ | 11 1/8“ | 383 | 258 | 115200 | 1130 |
| 95 | 3 3/4“ | 11 3/4“ | 427 | 287 | 128000 | 1256 |
| 96 | 3 13/16“ | 12“ | 436 | 293 | 130400 | 1279 |
| 100 | 3 15/16“ | 12 3/8“ | 473 | 318 | 140800 | 1381 |
| 104 | 4 1/8“ | 13“ | 509 | 342 | 149600 | 1468 |
| 112 | 4 7/16“ | 14“ | 592 | 398 | 172000 | 1687 |
| 120 | 4 3/4“ | 15“ | 682 | 458 | 196800 | 1930 |
