Hydraulic Slewing Crane And Rescue Boat Liferaft Landing Device

Request a Quote Not what you need, please send your RFQs via Email.

Details

Product Description:

This device slew by the hydraulic, and launch the boat to the water surface by the boat own gravity, slew the boat or raft outboard under the condition of loss of electricity, while Launching, the passengers could pull the remote control cable in the boat to launch or stop rescue boat or raft. As well, the crews can operate it on the deck. This device meets the SOLAS 1974, the international life saving equipment rules LSA and IMO, MSC81 (70) and other regulatory requirements. The crane is driven by the hydraulic winch, and adjusts the working radius by the cylinder to the suitable position to lower the goods.

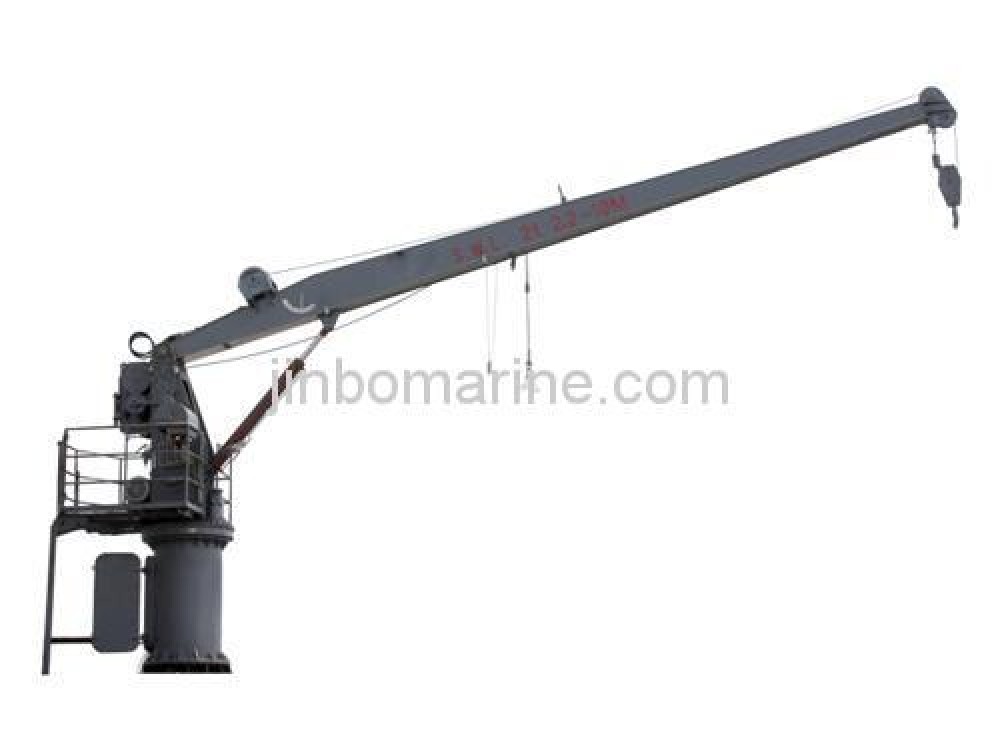

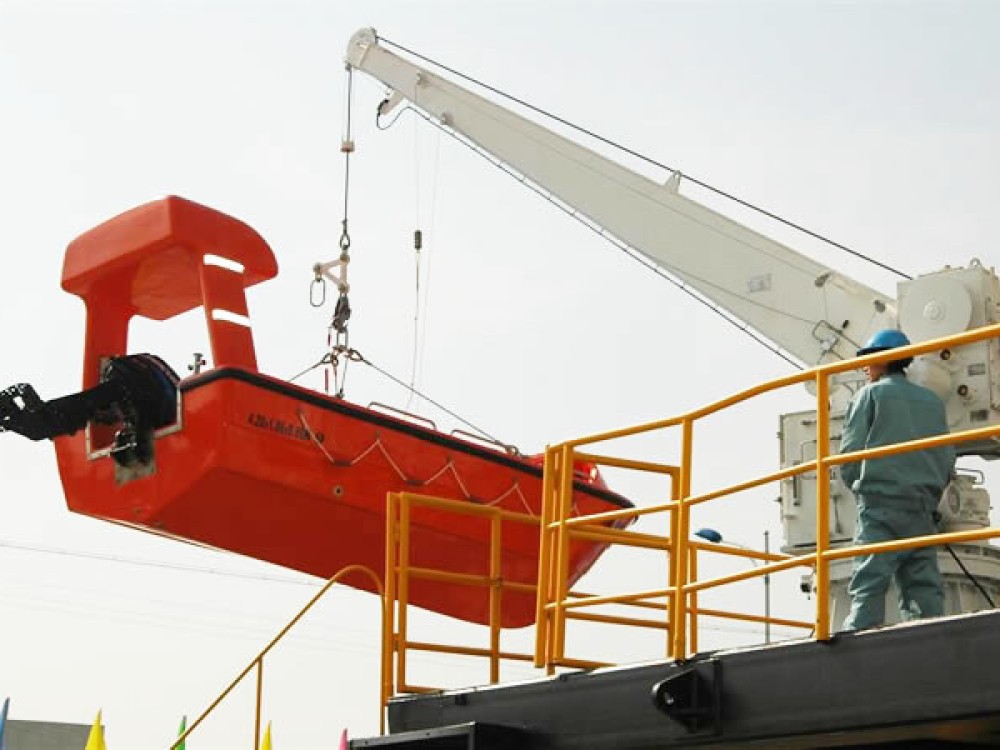

Hydraulic slewing crane and rescue boat liferaft device

Technical Parameter:

Model Max. Safety working load Hoisting load Hoisting speed Landing speed Rope capacity of the reel Max.Rotation Radius
HDC2-10 21KN 14KN ≥18m/min 40-60m/min 30m 4500mm
HDC3-10 30KN 27KN 4500mm
HDC3-10-1 23KN 14KN 7000mm
HDC3-10-2 23KN 18KN 7000mm

Crane main Technical data

Max. Hoisting load Rope capacity of the reel Max. Rotation Angle Landing speed Max.Rotation Radius
2T 30m ≤330° ≥15 m/min 10000mm
3T
3T
3T
