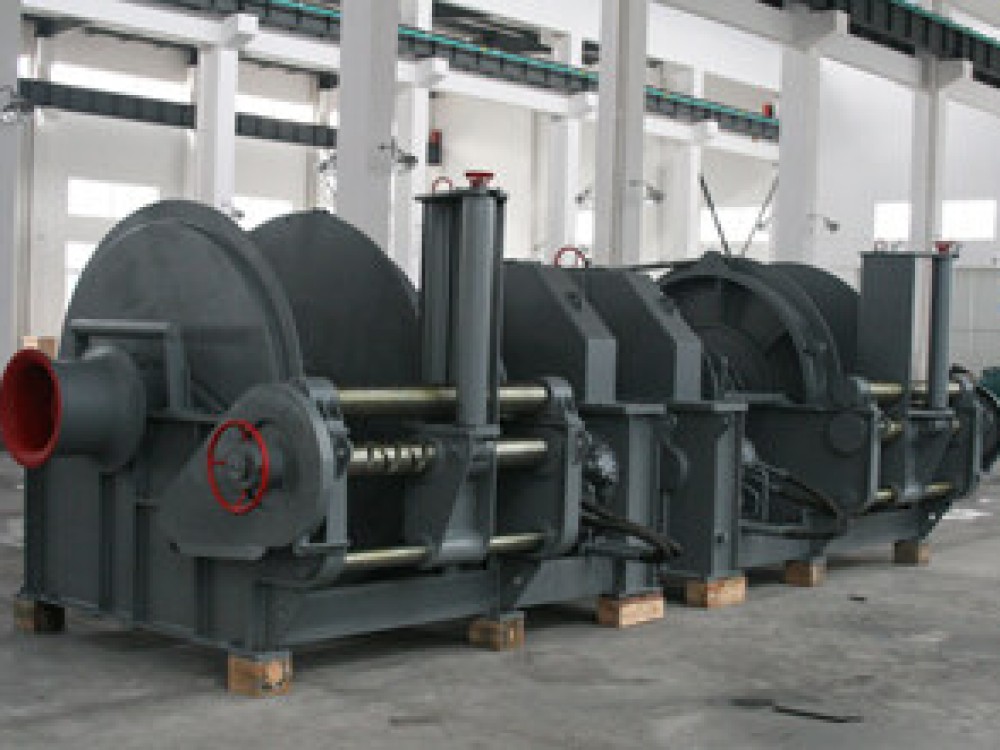

Hydraulic Steel Wire Winch For Fishing Boat

Request a Quote Not what you need, please send your RFQs via Email.

Download this page

Details

Widely used for Fishing boat, large drum capacity, hydraulic system to keep the winch smooth and safety.

Specification

Model
Working load	40kn	60kn	60kn	80kn	150kn	300kn
Speed	80m/min	60m/min	80m/min	80m/min	70m/min	60m/min
Wire diameter	22mm	22mm	24-45mm	22-40mm	24mm	32mm
Drum capacity	1200m	1200m	1200m	200m	1500m	2500m
Working pressure	162.2bar	162.2bar	169.5bar	156bar	156bar	183bar
Flow rate	320L/min	320L/min	429.2L/min	290L/min	1000L/min	1383L/min
