China HZ Type Flat Heater:

HZ Type Flat Heater

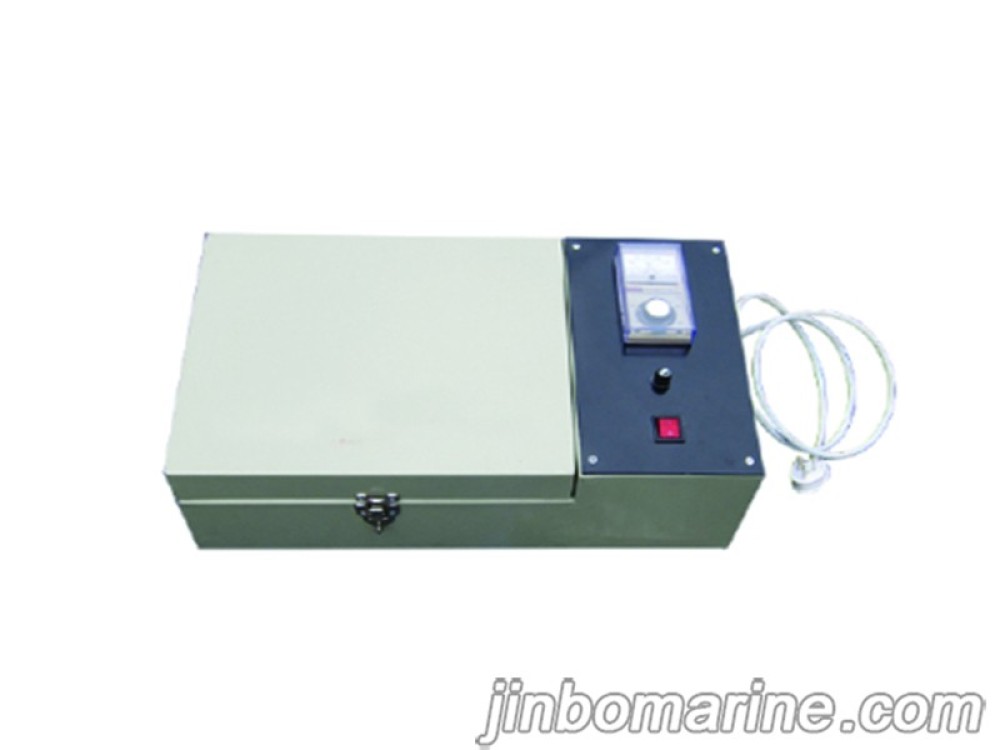

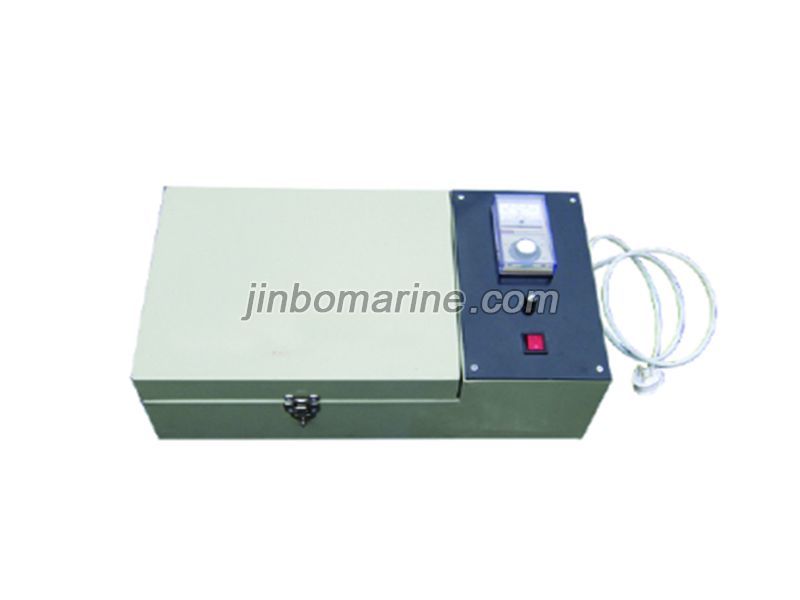

HZ type flat-plate heater is a new multi-function heater used for heating bearings. Mainly used for heating of small bearings and other small parts. Its appearance is like a suitcase, and there is a shelf inside,which is a heating plate, which is heated by an electric heating tube. Its temperature is adjustable and can be precisely controlled to ensure that the bearing temperature does not exceed 120. The bearings are heated on a heating plate. In order to make the temperature uniform, it is best to turn the bearing several times during the heating process. There is a cover on the plate, which plays the role of heat preservation and preventing the bearing from being polluted. This heating device is compact, safe to use, and will not overheat even if left unattended.

Voltage Current Power Temperature range Precision Heating plate size Weight Dimensions
220V 10A 2.2kW 0-200℃ ±5℃ 350x300mm 18kg 510x300×160mm
