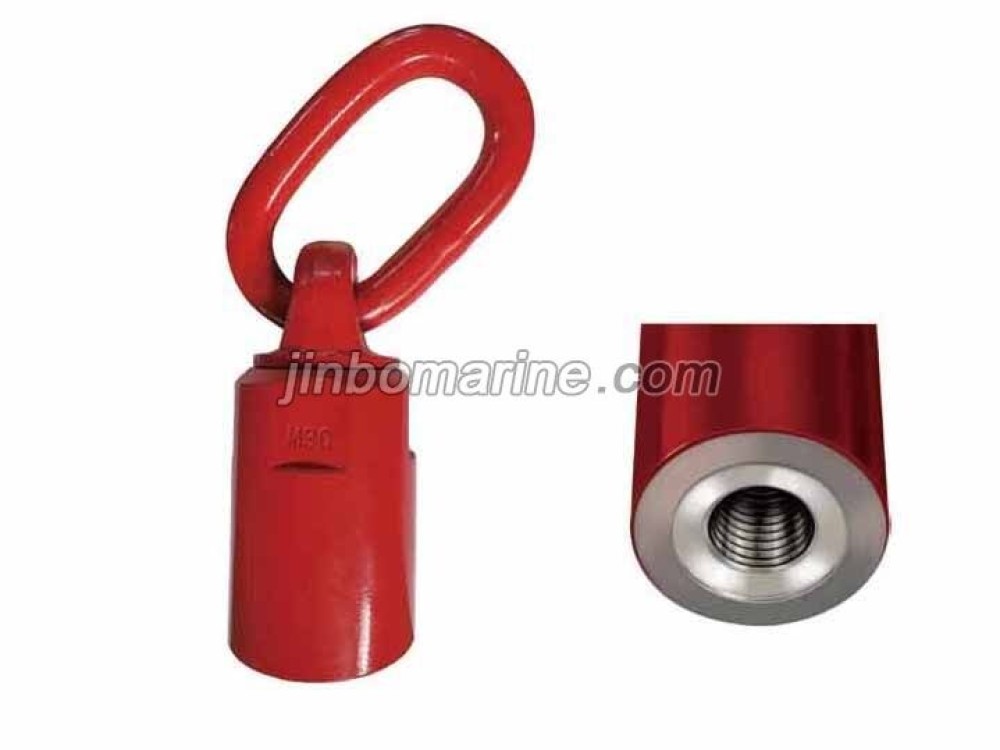

Industrial Equipment hoisting Swivel Hoist Nut

  • Category:Chain Sling
  • Material:Alloy Steel Forging
  • Standards:EN1677-1 CROSBY ISO9001-2008 CCS
  • Packing Details:Standard Export Packaging
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Industrial Equipment hoisting Swivel Hoist Nut:

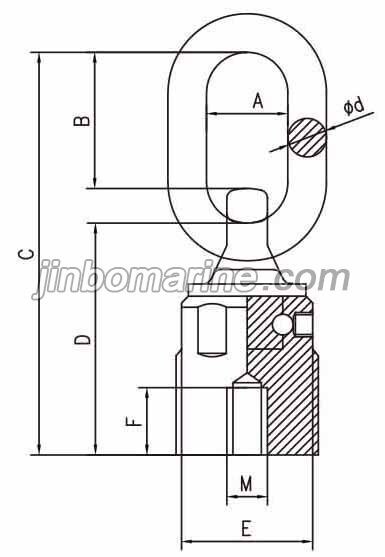

Metric Model Load
WLL(T) 		Unit（mm） Weight（kg）
A B C D E d F
M8X1.25-6g 0.4 27 39 85 38 33.3 7.9 12 0.27
M10X1.5-6g 0.5 27 39 85 38 33.3 7.9 19 0.27
M12X1.75-6g 1.05 35 58 135 65 54.3 12.7 19.1 1.2
M14X2.0-6g 1.05 35 58 135 65 54.3 12.7 31.8 1.2
M16X2.0-6g 1.9 35 58 135 65 54.3 12.7 31.8 1.2
M20X2.5-6g 2.15 40 67 160 75.5 64.3 19.1 38.1 2.21
M22X2.5-6g 2.25 40 67 160 75.5 64.3 19.1 38.1 2.21
M24X3.0-6g 4.2 40 67 160 75.5 64.3 19.1 38.1 2.21
M30X3.5-6g 5 50.8 95 205 90 74 22.2 50 3.86
M33X3.5-6g 7 50.8 95 205 90 74 22.2 50 3.86
M36X4.0-6g 8 50.8 95 205 90 74 22.2 54 3.86
M39X4.0-6g 8 50.8 95 205 90 74 22.2 58 3.86
M42X4.5-6g 10 63 108 230 100 85 25 63 6.08
M45X4.5-6g 10 63 108 230 100 85 25 68 6.08
M48X5.0-6g 10 63 108 230 100 85 25 68 6.08
M56X5.5-6g 15 70 120 278 132 95 32 84 10.8
M60X5.5-6g 15 70 120 278 132 95 32 90 10.8
M64X6.0-6g 15 70 120 278 132 95 32 95 10.8
M72 25 80 125 331 166 130 40 108 27
M90 35 80 125 331 166 130 40 135 31
