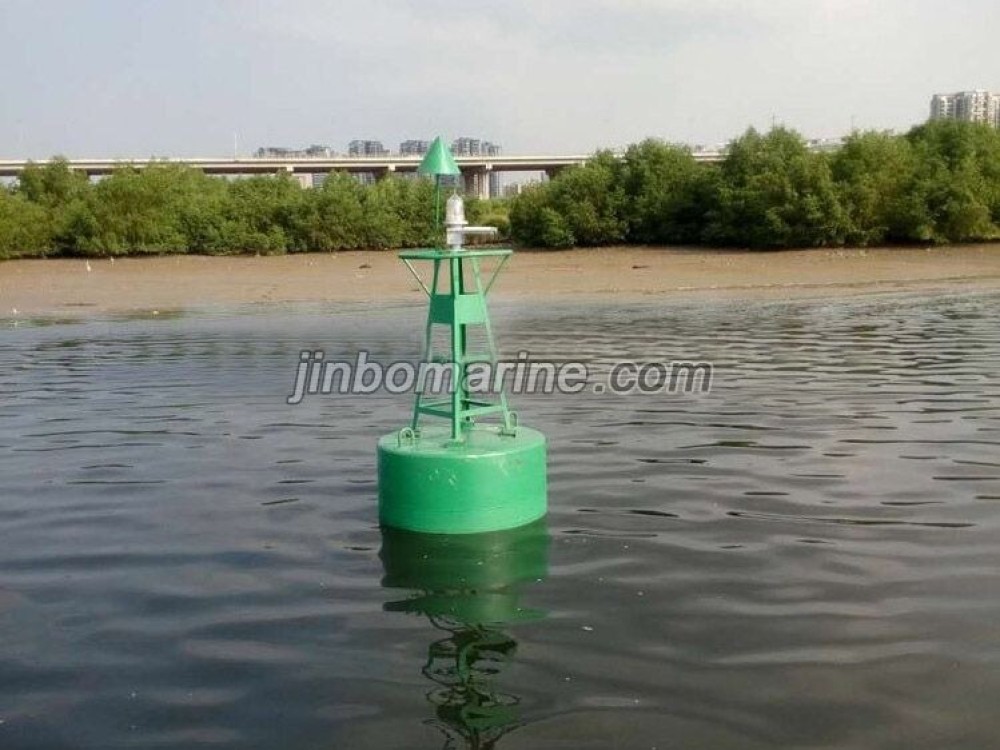

Inlander Water-way Lateral Marks Buoy
- Category:Navigation Buoy
- Material:Stainless steel
- Packing Details:Standard Export Packaging
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Inlander Water-way Lateral Marks Buoy:
| Specification | JB1.5 | Remark |
| Beacon light power | Solar cells, and 12 VDC or 6 VDC (optional) | Optional |
| Light quality |
On the left bank: green (white
light), single or more flash flash The right side: red, single or double flash flash |
|
| Range | 2-10Km (optional) | Optional |
| Remote telemetry |
Remote wireless remote telemetry
(with computer software installation) (optional) |
Optional |
| Synchronous flash |
GPS signal coordination and
synchronization of consistency or less 0.2 ms (optional) |
Optional |
| Diameter of Buoy (m) | 1.5 | |
| Material | ship plate | |
| Total Height(m) | 4 | |
| Height of Freeboard(m) | 0.5 | |
| Height of Lamp Standing Part(m) | 2.35 | |
| Max Swing Angle(°) | ≤15 | |
| Swing Cycle(s) | 3～5 | |
| Max Buoyancy(t) | 1.8 | |
| Total Weight(m) | 0.6 | |
| Embalmed | Paint spraing, scarifical andode | |
| Anchor Chain(mm) | 22 | |
| Sinker/Anchor block(t) | 1～2 | |
| Depth(m) | 4～20 |
