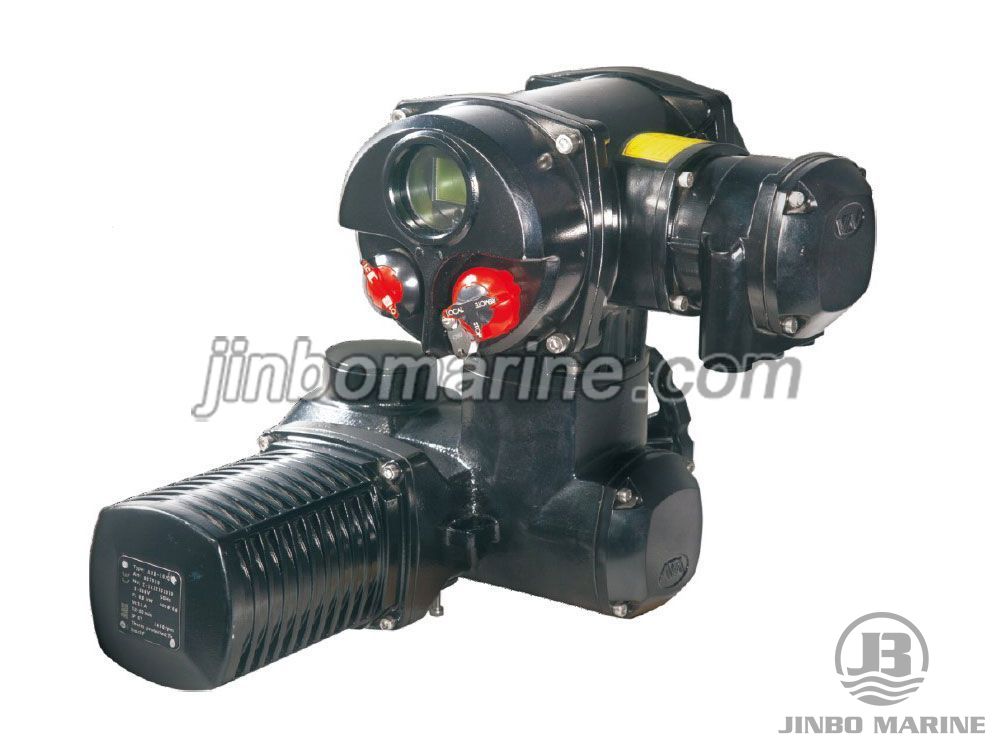

Intelligent Multi-Turn Actuator
- Category:Valve Remote Control System
- Material:Cast iron
- Packing Details:Export standard packaging.
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
China Intelligent Multi-Turn Actuator:
Intelligent Multi-turn Actuator is use to controll various valves and other similar product as below.
1. Part-turn valves like butterfly valve, ball valve,damper,flapper valve,cock valve,louver valve etc.
2. Line movement valve like single seat regulating valve, double seat regulating valve, three way regulation valve etc.
3. Multi-turn valve like gate valve, block valve etc.
The intelligent multiturn actuator combine the characteristics of intelligent and reliable,and it can expand abundant application range on the basic modularized product, to satisfy various kinds of working condition.
Feature:
Double seal structure.
Latest non-invasive design Precise torque measurement.
Infrared setting technology.
Reliable electronic system.
Precise valve position measurement.
Phase postion self-correction.
Instantaneous reversal protection.
Out-phase protection.
Over torque proteciton Intelligent block protection.
Motor overheating protection.
Electric actuator technical parameter:
|
Model |
Output torque |
Speed |
Max shaft diameter |
Power |
Rated current（A）50HZ |
Flange model |
Weight |
|
three phases |
|||||||
|
N·M |
RPM |
mm |
W |
380V |
ISO5210 |
Kg |
|
|
M-007 |
70 |
45 |
Ф28 |
400 |
2.25 |
F10 |
32 |
|
70 |
90 |
400 |
1.67 |
||||
|
M-010 |
120 |
35 |
Ф28 |
600 |
4.18 |
F10 |
38 |
|
120 |
70 |
600 |
3.12 |
||||
|
120 |
105 |
800 |
5.15 |
||||
|
M-020 |
200 |
34 |
Ф40 |
1100 |
3.85 |
F14 |
68 |
|
200 |
67 |
1100 |
5.65 |
||||
|
M-050 |
500 |
34 |
Ф40 |
1100 |
9.58 |
F14 |
70 |
Standard Technical Parameter:
|
Shell |
Enclosure:IP67（IP68 optional）,NEMA4 and 6 |
|
|
Power |
Standard：380V AC/3ph Optional：110/220V AC/1ph,440V AC/3ph, 50/60Hz, ±10% |
|
|
Motor |
Asynchronous motor |
|
|
Limit switch |
1×Open/ Close, SPDT,250V AC 10A（on/off model） |
|
|
Auxiliary limit switch |
1×Open/ Close, SPDT,250V AC 10A（on/off model） |
|
|
Torque switch |
1×Open/ Close, SPDT,250V AC 10A |
|
|
Operating temperature |
Internal-placed thermal protection，Open 120℃ ±5℃ /Close 120℃ ±5℃ |
|
|
Manual operation |
Declutching mechanism,with handwheel operation |
|
|
Self-locking device |
Self-locking by worm and worm gear |
|
|
Space heater |
30W (110/220V AC) Condensation preventing (according to conditions, can be adjusted) |
|
|
Conduit entry |
Double seal 3× NPT3/4＂ |
|
|
Ambient temperature |
-30℃--+70℃ |
|
|
Lubrication |
Special oil for 00 actuators |
|
|
Material |
Ductile iron, high-strength aluminum alloys, steel, aluminum bronze, polycarbonate |
|
|
Ambient humidity |
Max 90％ RH |
Non-Condensing |
|
Anti-vibration |
X Y Z 10g,0.2～34 Hz,30 minutes |
|
|
External coating |
Dry powder, epoxy polyester,high anti-corrosion |
|
|
Overload protection |
Torque peak overload protection |
|
|
Display screen |
LED display (smart regulation type) |
|
|
Setting mode |
Non-intrusive setting (without opening the cover set type) |
|
|
Electrically |
Integrated control unit with a non-invasive rotary switch |
|
