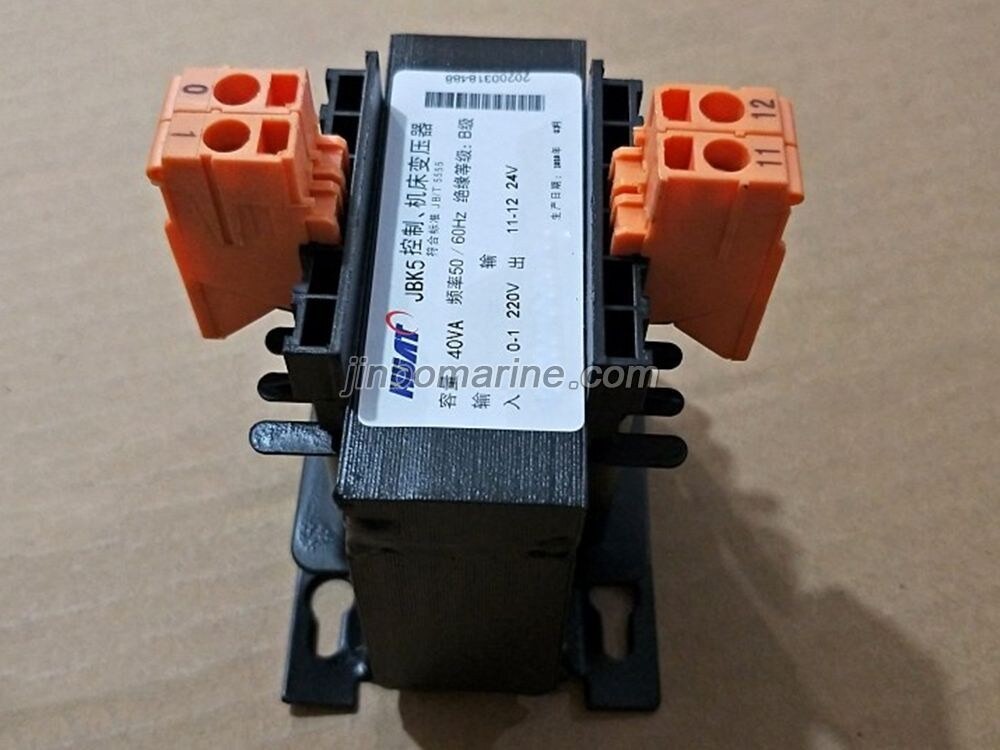

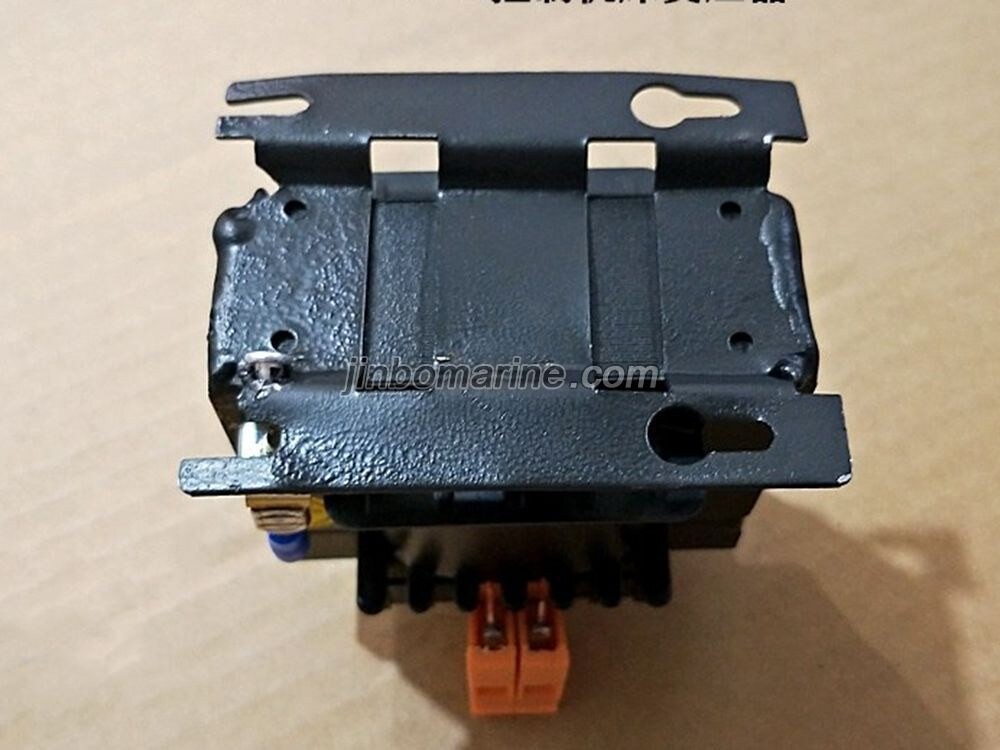

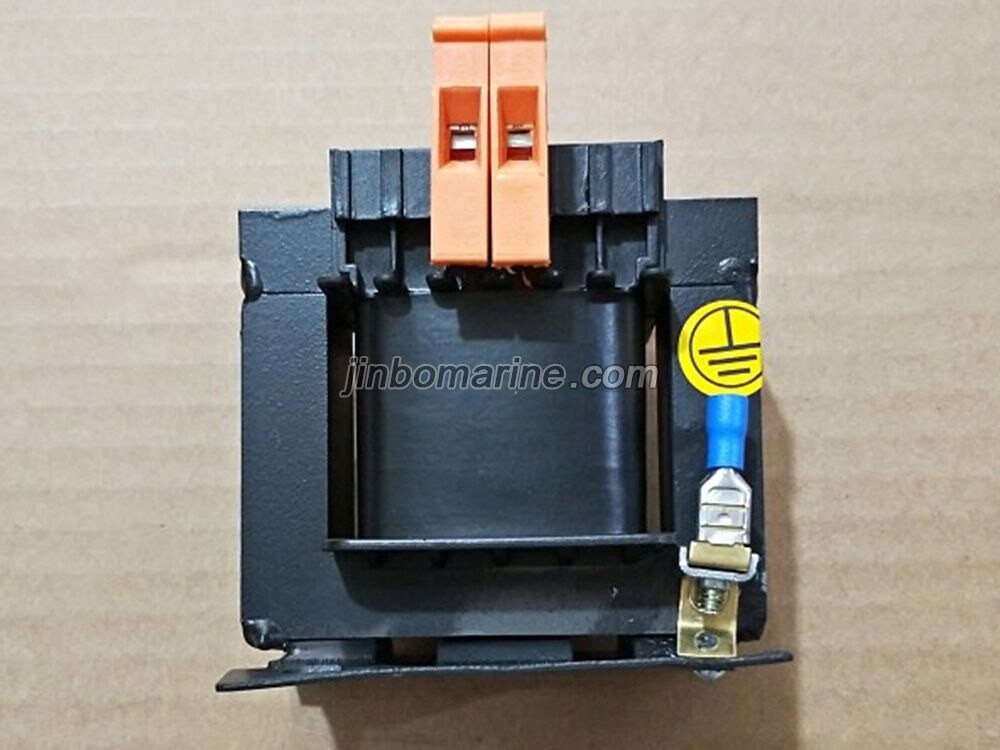

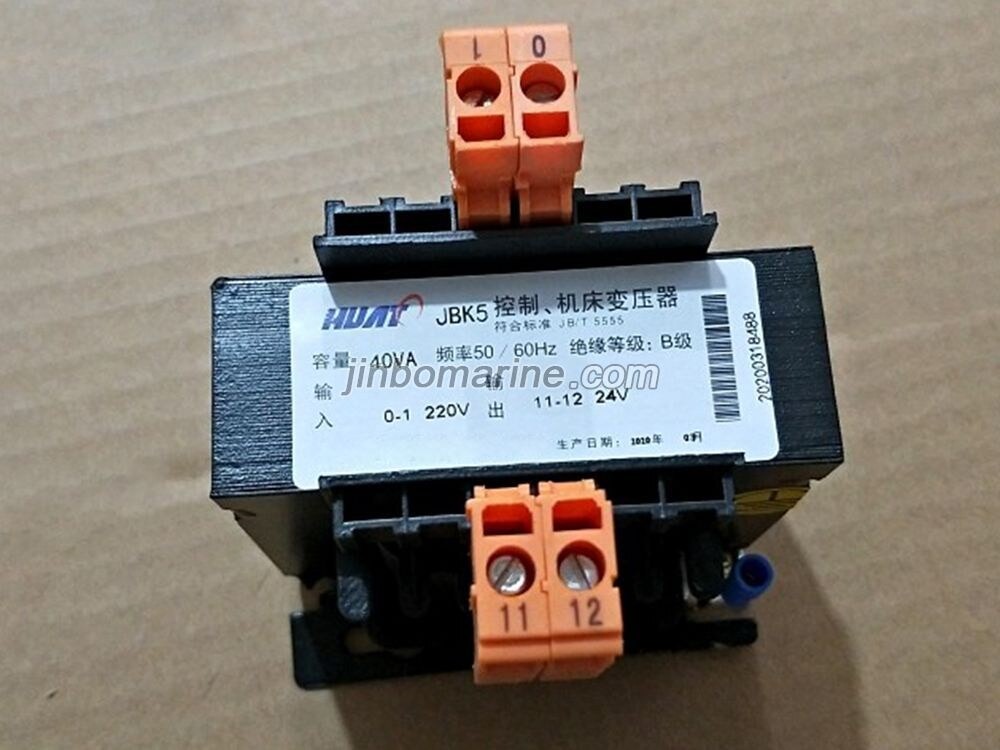

JBK5-40 Marine Minitype Control Transformer

JBK series control transformer design refers to relevant standards like VDE0550, IEC204-1 and GB5226, applies to AC.50~60Hz frequency power. There are press-fit and and plug-in two connection methods are adopted and equipped with terminals to prevent touching protection requirements by accident.

This product have attribute of excellent performance, safe and reliable wiring, which can be widely used in control and lighting for various industrials such as power distribution cabinet for ship, machinery, metallurgy, mine, light textile, rubber, chemical engineering, papermaking and printing, and also can be used as isolation transformer.

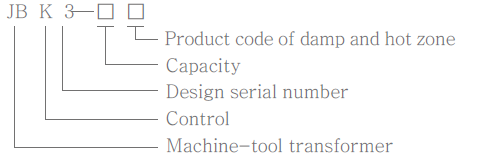

Technical data:

JBK5-40~630

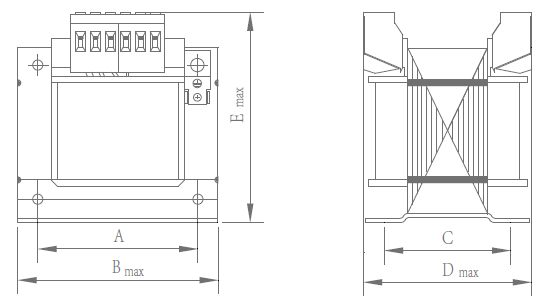

Dimensions
Item
Type 		B D E Hole Mounting hole
K×J
max max max
A C
JBK5-40~63 83 80 105 56±0.4 46±2.5 4.8×9
JBK5-100 86 95 105 64±0.4 63±2.5 4.8×9
JBK5-160 98 100 118 84±0.4 71±3.0 5.8×11
JBK5-250 98 110 118 84±0.4 85±3.0 5.8×11
JBK5-400 122 110 135 90±0.4 85±3.0 5.8×9
JBK5-630 152 120 158 122±0.4 90±3.5 7×13

JBK5 Ⅱ-40~800

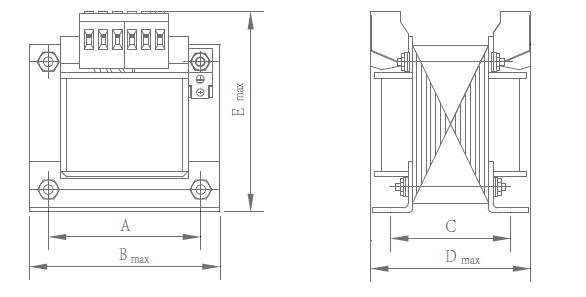

Dimensions
Item
Type 		B D E Hole Mounting hole
K×J
max max max
A C
JBK5Ⅱ-40~63 83 80 105 56±0.4 46±2.5 4.8×9
JBK5Ⅱ-100 86 95 105 64±0.4 63±2.5 4.8×9
JBK5Ⅱ-160 98 100 118 84±0.4 71±3.0 5.8×11
JBK5Ⅱ-250 98 110 118 84±0.4 85±3.0 5.8×11
JBK5Ⅱ-400 122 110 135 90±0.4 85±3.0 5.8×9
JBK5Ⅱ-630 152 120 158 122±0.4 90±3.5 7×13
JBK5Ⅱ-800 152 130 158 122±0.4 106±3.0 7×13
