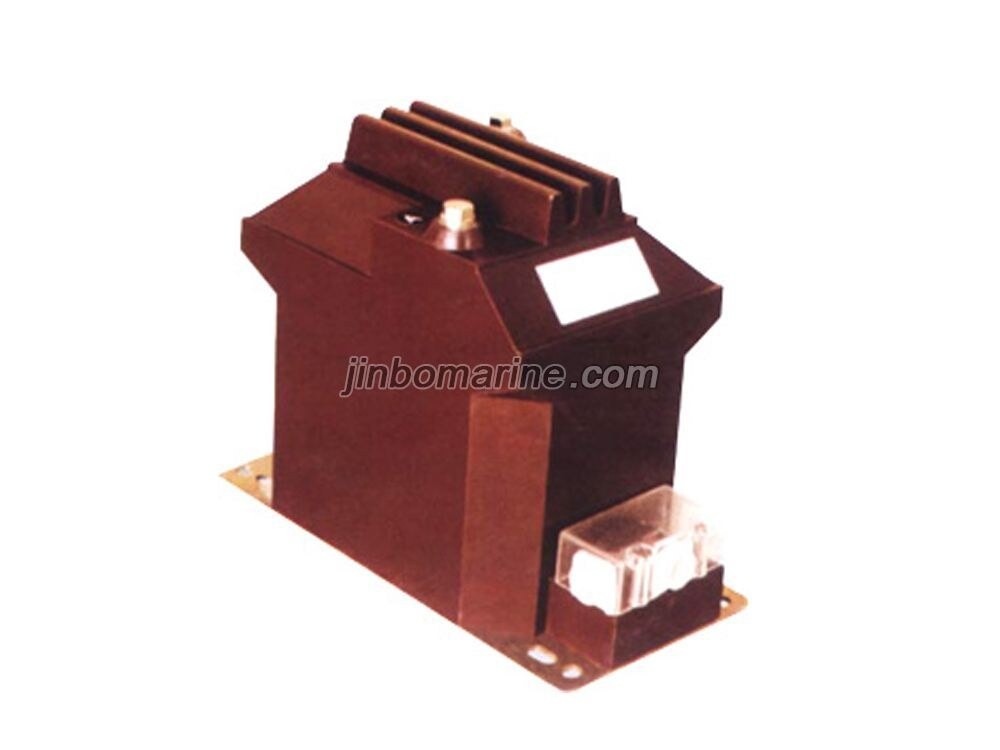

JDZX10-10B Voltage Transformer
- Category:Marine Transformers
- Delivery Time:15 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
JDZX10-10B Voltage Transformer
1. The product complies with standards GB1207 and IEC186
2. This series of products includes three voltage transformers: JDZ10-3B, 6B1, 10B1, JDZX10-3B1, 6B1, 10B1, JDZX10-3B, 6B, 10B

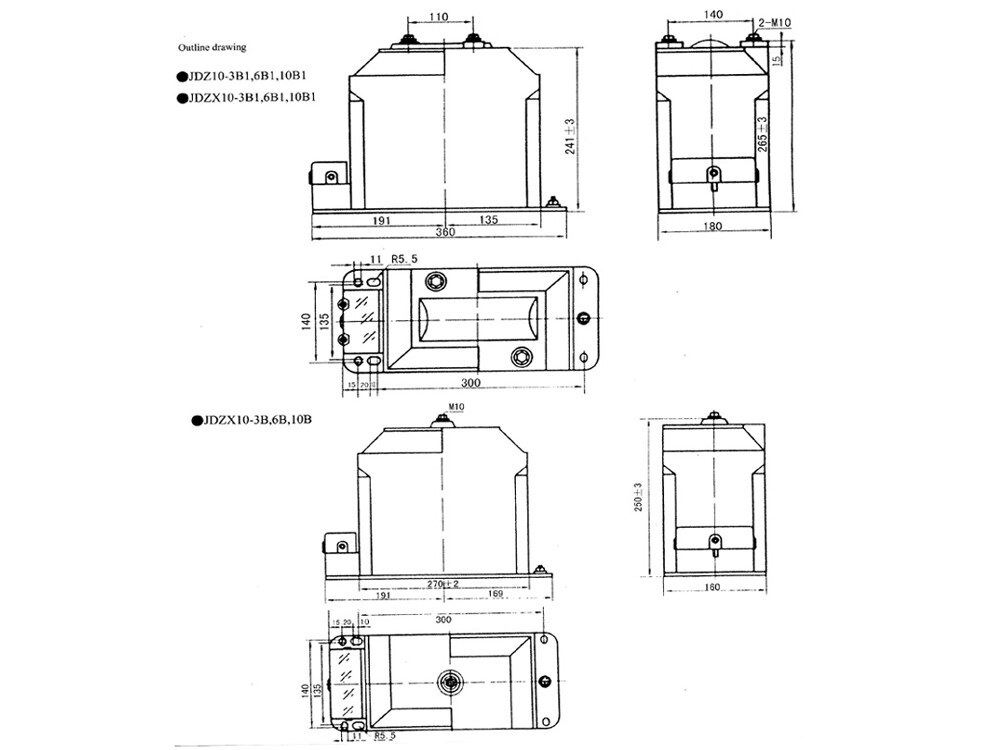

JDZX10-10B Voltage Transformer Drawing
JDZX10-10B Voltage TransformerParameters
| Model | Rated Voltage Ratio/V | Rated Frequency/Hz | Rated Output/VA | Rated Insulation Level/KV | |||
|
0.2 grade |
0.5 grade |
1 grade |
6P grade |
||||
| JDZ10-3B1 | 3000/100 | 50.6 | 25 | 50 | 90 | 3.6/25/40 | |
| JDZ10-6B1 | 6000/100 | 25 | 50 | 90 | 7.2/32/60 | ||
| JDZ10-10B1 | 10000/100 | 25 | 50 | 90 | 12/42/75 | ||
| JDZX10-3B1 | 3000/√3/100/√3/100/3 | / | 50 | 90 | 50 | 3.6/25/40 | |
| JDZX10-6B1 | 6000/√3/100/√3/100/3 | / | 50 | 90 | 50 | 7.2/32/60 | |
| JDZX10-10B1 | 10000/√3/100/√3/100/3 | / | 50 | 90 | 50 | 12/42/75 | |
| JDZX10-3B | 3000/√3/100/√3/100/3 | 25 | 50 | 90 | 50 | 3.6/25/40 | |
| JDZX10-6B | 6000/√3/100/√3/100/3 | 25 | 50 | 90 | 50 | 7.2/32/60 | |
| JDZX10-10B | 10000/√3/100/√3/100/3 | 25 | 50 | 90 | 50 | 12/42/75 | |
